JGM9075L 8 Ton Wheel Excavator - New Hydraulic Excavator for Sale in China
Contact Now
Description
产品描述
9 吨 JGM909L 中国新型液压挖掘机轮式挖掘机出售
产品展示
Product Description

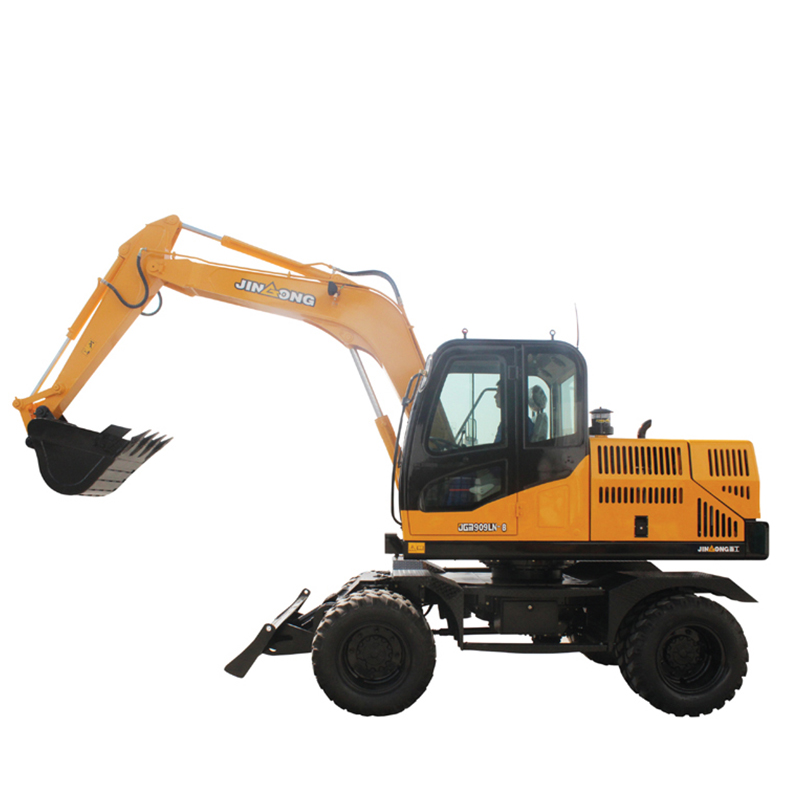

JGM909L-8 is our company independent research and development of a new generation of 9 ton wheel hydraulic excavator. It adopted the hydraulic system of load sensitive and full hydraulic axles drive, has many advantages such as constant power variable , energy conservation and efficient, driving fast, stronger through and climbing ability, the braking performance is good, work smoothly, the forerunner to manipulate, convenient and comfortable and so on. Super element configuration and structure to ensure that meet the requirement of the various working conditions. Comprehensive performance is the domestic first-class , its quality is worth its price.
•Equipped with bucket capacity of 0.4 m^3 and the broken drill rod diameter 80 ~ 90 mm .
•Engine
•Model : Guangxi YuChaiYC4D85Z-T20
• Type : 4- cylinder4-stroke , turbocharged engine( According with the Ⅱ stage of GB20891-2007)
•Number of cylinders : 4
• Cylinder diameter × trip 108mm×115mm
•Displacement 4.214L
•Rated power 60KW at 2200rpm
•Maximum torque 340Nm at 1300~1600rpm
•4- cylinder4-stroke and turbocharged engine have many advantages such as high power , higher reliability and economical efficiency , low emission,low fuel consumption and so on(According with the Ⅱ stage of GB20891-2007) standard emission, meet environmental requirements and guarantee strong power ; Unique cooling way( Parallel radiator)to ensure uniform distribution of temperature,even in the hot summer also can ensure that your equipment working normally.
|
C |
Max. Digging Height |
7234 mm |
|
D |
Max. Dumping Height |
5050 mm |
|
B |
Max. Digging Depth |
3944 mm |
|
A |
Max. Digging Radius |
6933 mm |
|
E |
Digging Radius at Excavator Standing Plane |
6667 mm |
|
Max. Dozing Height |
440 mm |
|
|
Max. Dozing Depth |
200 mm |
|
|
Max. Digging Force of Bucket |
55 KN |
|
|
Max. Tractive Force |
(80 ml/h 44KN,107 ml/h60KN) |
|
|
Grade ability |
50 % |
|
|
Swing Speed |
10 r/min |
|
|
Travel Speed |
0~30 km/h |
