性能和目的

我们公司是中国专业的垃圾压实机制造商。我们拥有完善的垃圾压实机质量检验系统。欢迎来到我们公司购买垃圾压实机。

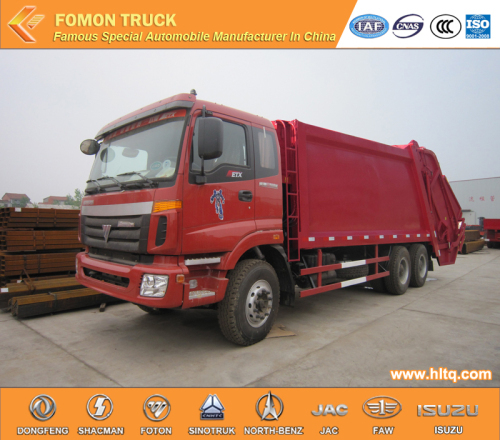

Vehicle parameters
Vehicle Model HLW5257ZYSB Vehicle Brand FOMON
Overall dimensions 10300×2500×3500mm Curb weight 15880kg
Loading capacity 20m3


Chassis parameters
Chassis model BJ5257GNFJH-S1 Chassis brand FOTON
Overall dimensions 10067x2490x3010mm Wheel base 4725+1300mm
Front/rear wheel track 1930/1860/1860mm Front/rear suspension 1532/2510mm
Approach/departure angle 11/12° Maximum speed 79km/h
Chassis Manufacturer Beijing Foton Daimler Motor Co., Ltd.
Cab Configuration ETX2420 a row and a half cab(with sleeping berth),allowable 3 passengers,air conditioner
Color White,other color is optional
Engine Model SC9DK270Q3B1
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,direct injection,exhaust valve brake,diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 8820ml
Max.torque 1125N.m
Bore x stroke 114x144mm
Manufacturer Shanghai Diesel Engine Co., Ltd
Tire Size 10.00-20 nylon tire
Number 10+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 350L aluminum alloy
Rear axle 10.0 tons
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gear box 9JS,9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Steel wire tire
If there is a slight change in the chassis parameters above,please take the actual product as the standard

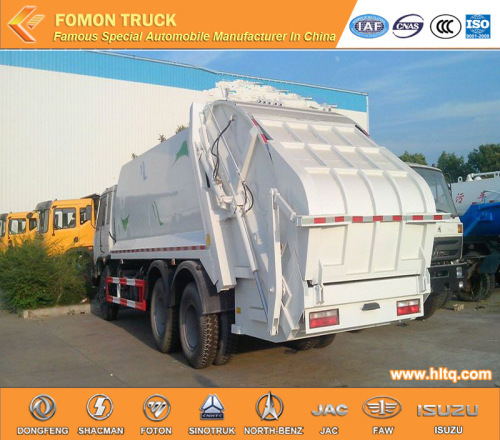

Refuse compactor structure parameters
Equipment
Structure Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems
Loading capacity 20m3
System of loading Mechanized, rear loading
Modes of the pressing Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic
Body
Version All-metal
Shape arc-shaped
Sidewalls Sheet carbon steel (thickness: 4 mm)
Bottom Sheet carbon steel (thickness: 5 mm)
Roof Sheet carbon steel (thickness: 4 mm)
Front frame Sheet carbonaceous steel (thickness: 5 mm)
Rear frame П-shaped profile from sheet carbon steel (thickness:5 mm)
Basis 120х120mm (thickness: 5 mm)
Loading bunker
Loading bunker All-metal with sidewalls and a loading ladle
Volume 1.5 m3
Sidewalls Sheet carbon steel (thickness: 4 mm)
Ladle floor material Sheet carbon steel (thickness: 5 mm)
Liquid drain Drainage channel,sewage tank
Working zone Lighting 2 lamps
Mechanism of raising Two hydraulic cylinders
Ensuring tightness Between the body and lifting back part in the lower part profile acid-proof rubber is used.
Pressing system
Features Control mode diversification,bidirectional compression
Pressure 16Mpa
Compaction ratio 3.0:1
Loading cycle 25-30 second
Unloading cycle 15-20 second
pressing mechanism The giving plate and  hinge related pressing plate moving on two directing bars
Pressing mode Automatic pressing
(1 full cycle and continuous pressing) and controlling of each cycle of pressing separately
Control of  pressing Control from the external panel on the bunker
Lifting rear part
Mechanism of lifting Two hydraulic cylinders
Function description Suitable for various rubbish bins
Others
Color and Logo Optional
Standard configuration Chassis,arc-shaped body,sub frame,rear lifting part,loading bunker,pushing-out plate,hydraulic system,pressing system,sewage tank,climbing ladder,pneumatic control.
Selective configuration PLC electric automatic control,multifunctional rear lifting part,rear handrail and footplate,other shapes of body,rear swing arm,and etc.
