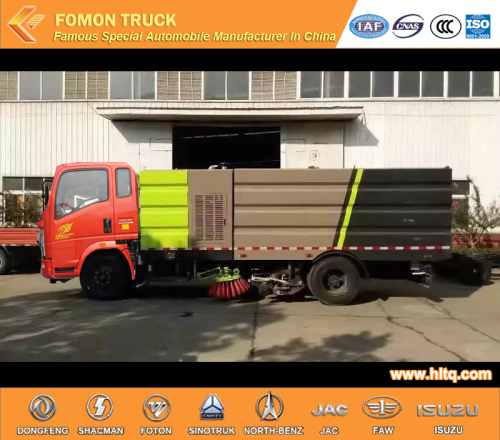

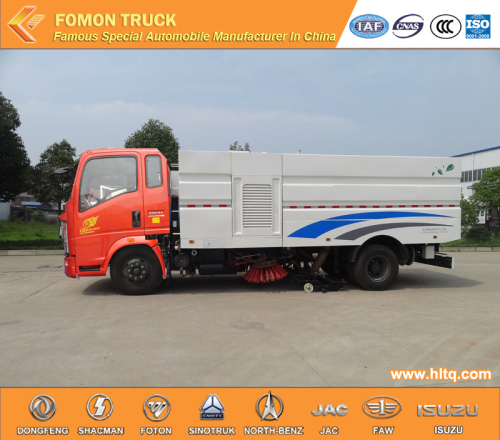

HOWO multifunctional truck mounted road sweeper
Description
产品描述
HOWO 多功能车载道路清扫车
Vehicle parameters
Vehicle Model HLW5127TSLZ52 Vehicle Brand FOMON
Overall dimensions 9000X2480X3000mm Curb weight 7205kg
Dust tank volume 7000L Water tank volume 4000L
Chassis parameters
Chassis model ZZ1127G5215C1 Chassis brand SINOTRUK
Overall dimensions 8995x2400x2650mm Wheel base 5200mm
Front/rear wheel track 1798/1764mm Front/rear suspension 1240/2555mm
Approach/departure angle 27/16° Maximum speed 95km/h
Chassis Manufacturer China National Heavy Duty Truck Group Co.,Ltd
Cab Configuration 2080 a row and a half cab,allowable 3 passengers
Color White, other color is optional
Engine Model YC4E160-33
Emission Euro 3
Type 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Rated power 160hp, rated power speed 2600rpm
Displacement 4257ml
Max.torque 600N.m
Bore x stroke 110x112mm
Manufacturer Guangxi Yuchai Machinery Group Co., Ltd.
Tire Size 9.00R20
Number 6+1 nos
Fuel tank 220L iron oil tank
Front axle 3.6 tons
Rear axle 10.5 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Road sweeper structure parameters
Dust tank volume 7000L Water tank volume 4000L
Sweep width 3000m Cleaning speed 3-20km/h
Cleaning ability 9000-60000 m2/h Cleaning efficiency 98%
Maximum suction particle 120mm Min. clearance of suction nozzle 200mm

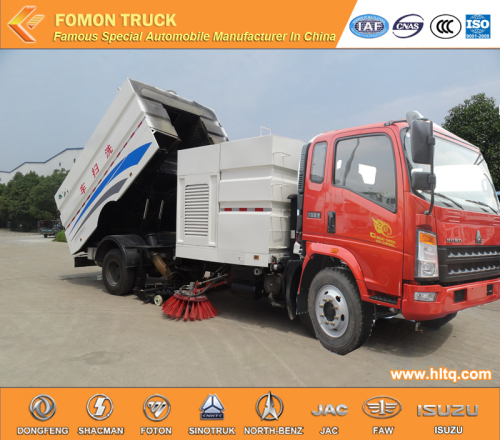

Unloading angle 45° Unloading height 970mm
Color and Logo Optional

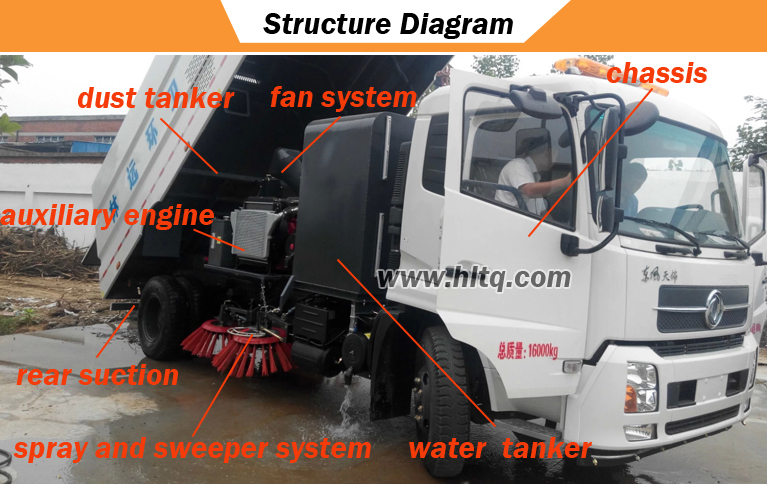

Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
More Sanitation Truck details please check: Water Tank Truck, Fecal Suction Truck, Refuse Compactor, Swing Arm Garbage Truck, Road Sweeper
