changan rear loading recycling garbage loader truck
Description
产品描述

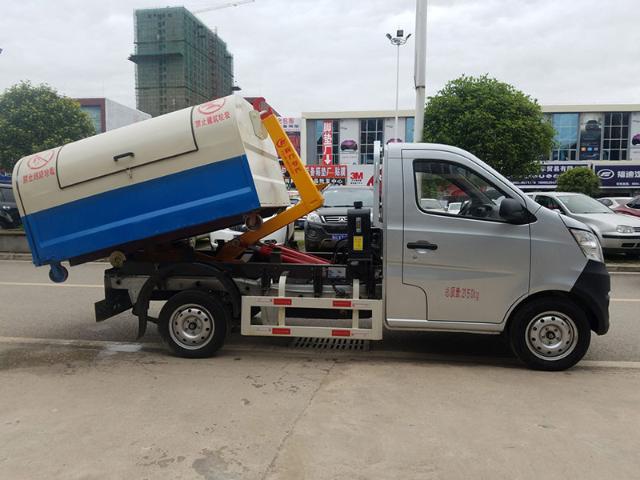

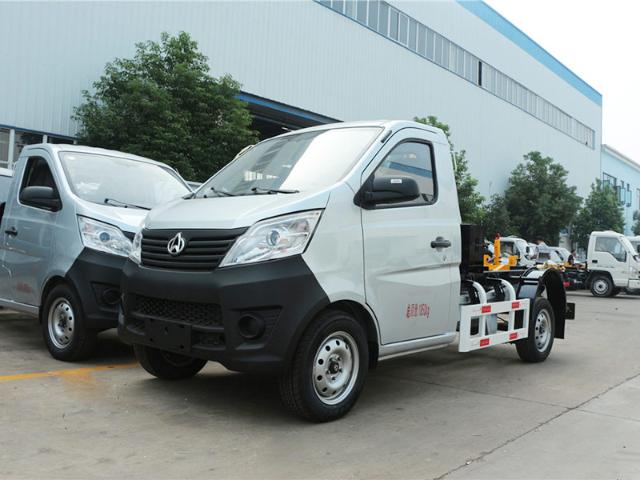

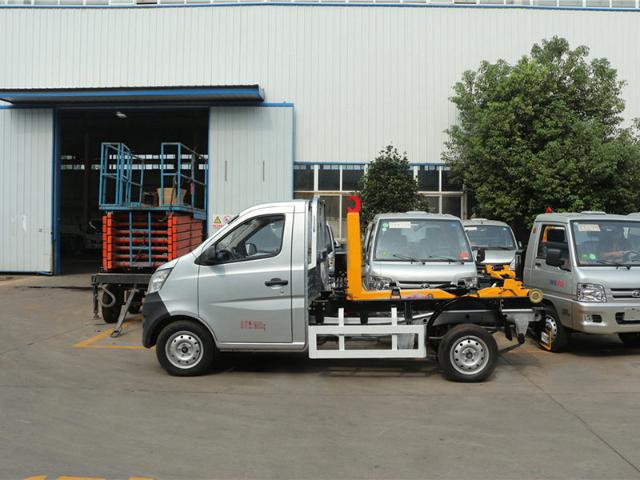

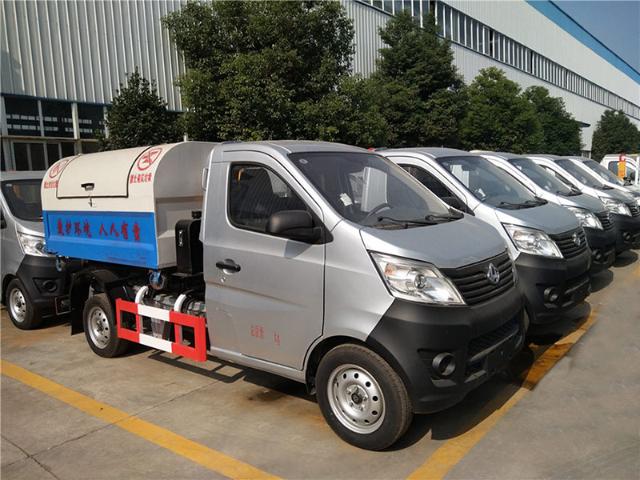

Rear loading recycling garbage loader truck
Product name: car removable garbage truck Size: 4260×1660×1920(mm)
Chassis Model: SC1027DAC5 Car Size: ××(mm)
Total mass: 2150(Kg) Angle of approach/departure: 34/32(°)
Rated quality: 700(Kg) Front suspension Rear suspension: 560/1015,560/815(mm)
Mass: 1320(Kg) Maximum vehicle speed: 120(km/h)
Engine Engine production enterprise displacement (ml) Power (kw)
Chongqing Changan Automobile Co., LTD
Emission standard: Country 5
Number of shafts: 2 Front wheel base: 1360(mm)
Wheelbase: 2900 Rear wheelbase: 1360(mm)
Tire number: 4 Tire Specification: 175/70R14LT 8PR
Fuel type: gasoline spring sheet number: -/6
Axle load: 860/1290 Cab passenger: 2
2. Special device: pull arm mechanism, which is mainly used for the collection and transportation of household garbage in urban sanitation. 3. ABS system model :APG3550500G; Manufacturer: Zhejiang Asia Pacific Electromechanical Co., LTD. ABS system control mode: double parameter control, four channels, four sensors, H-type arrangement.
