CE Certified Wood Pellet Stoves
Description
产品描述
The STOVE comes equipped with an automatic igniter for lighting the fuel when the stove is in lighting mode.
There are two ways to light the wood pellet for our models. One is the igniter heats wood pellet directly through the burn pot
and then lighted by the combustion blower. The other one is that the igniter lights the pellet directly.
The igniter remains energized for the first eight minutes of the lighting sequence.

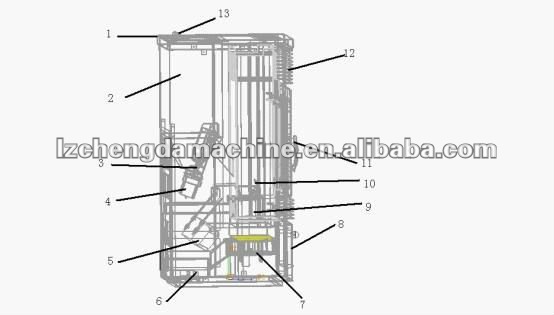

1. Hopper covers 2.hopper 3.auger 5.convertion blower 4. Auger motor 6.venting pipe
7. Exhaust blower 8.front cover 9.ash drawer 10.fire shield board 11.stove door 12.heat exchanger
13. Control board
Dimension(W*H*D) 449*918*486MM
Weight 80KG
Air inlet Pipe 50MM
Air outlet Pipe 80MM
Heat Area 60m2
Automatic Burning Time(Min-Max) 16/33 H
Fuel Wood Pellet
Consumption for Pellet(Min-Max) 0.6/1.2 KG/H
Efficiency 85%
Hopper Capicity 20KG
Electronic comsuption 100-400 W/H
Rating Valtage and Frequecy 230/50 V/HZ
Rating Power 6 KW
