Deep Hole CNC Steel Clapboard Drilling Machine
Description
Product description
Deep Hole CNC Steel Clapboard Drilling Machine
The measuring carriage or the so called stop positioning system consists of a measuring arm that is moved sideways on a roller conveyor by means of a gear rod. At the end of this measuring arm there is a plate which is provided with a sensor. The material is moved by the driven roller conveyors to the plate. Via sensor the control gets to know that the beam arrived the plate. The measuring carriage moves the workpiece through the drill line on its specified position. The measuring carriage features the advantage that there is barely residual length.
Specification for steel drilling machine:
| 型 | TPHD2016 |
| Max work piece size (L×W) | 2000x1600mm plate or Φ1600mm flange |
| ThickNess of work piece | 6--120mm |
| Drill unit type | sliding table, servo control |
| Drill head quantity | one |
| Max drill diameter | Φ40mm |
| Taper hole of spindle | BT40 |
| Spindle speed | 30~3000r/min |
| Spindle vertical stoke (Z axis) | 300mm |
| Servo motor power of X axis | 2.0 kW |
| Servo motor power of Y axis | 1. 5 kW |
| Servo motor power of Z axis | 2.0 kW |
| Motor power of scrap cleaner | 0.75 kW |
| Clamping type | 12 Hydraulic clams and T-slot |
| Electric control type | SIEMENS 808D |
| CNC axis quantity | 3 |
| Position precision | ±0.08mm |
| With function of CAD/CAM automatic generation | |
| With function of break point memory (Restart production easily after power off) | |
| Overall size | About 4900x3900x3200 |
| 重量 | About 14000 |
Applicable Industry of steel drilling machine:
The machine is the automatic special flange drilling machine for steel plates/connection plates, mainly in the field of angle steel tower industry, structure storage facilities, and steel structure construction industries etc.
Advantages of high speed flange drilling machine:
1. High speed Max. to 3000 rpm;
2. High production efficiency, for example drill one 30mm hole on 40 thickness just about 6 seconds;
3. High precision, the re-position precision 0.08mm;
4. Controlled by SIEMENS CNC system;
5. Inner-cooling;
6. Automatic lubrication system;
7. Can do the drilling, milling, tapping, reaming works.

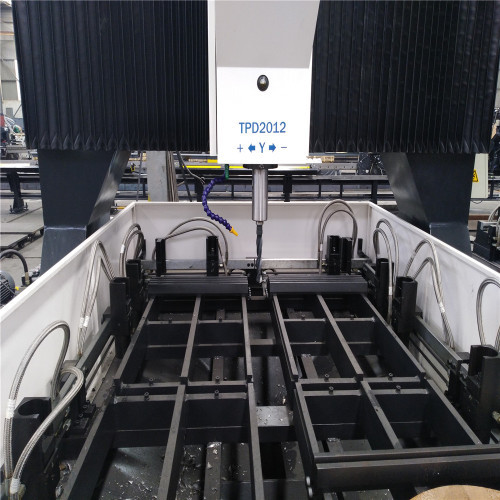

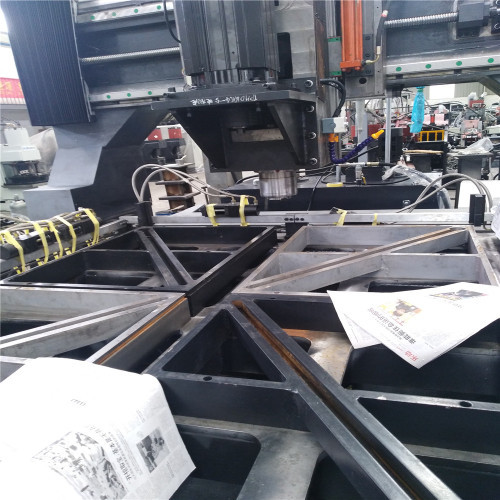

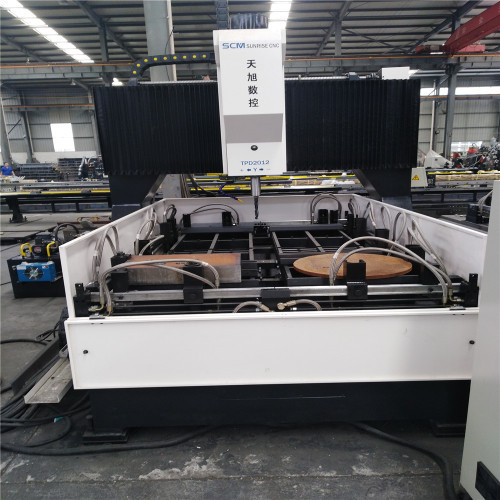

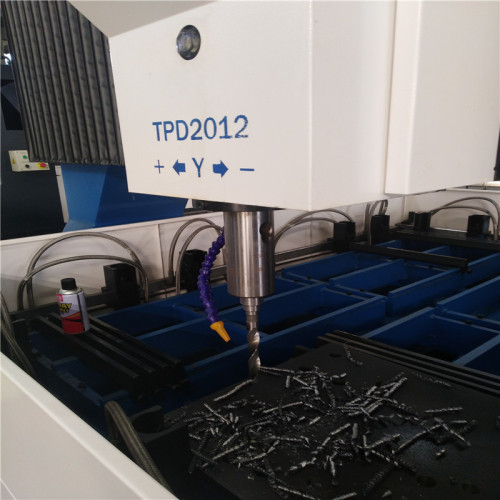

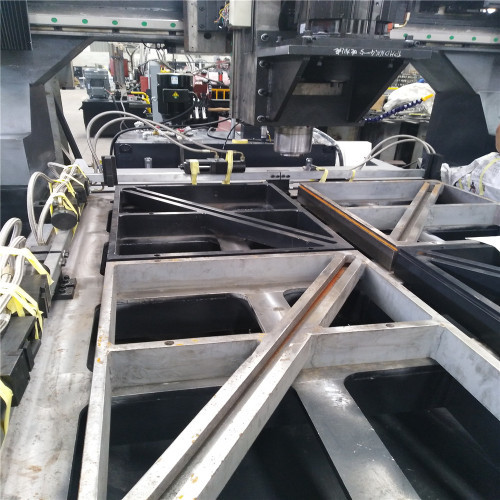

Products Show for flange drilling machine
