Price of High Pressure Electric Grouting Pump Machines for Construction Machinery
Contact Now
Description
产品描述
Description

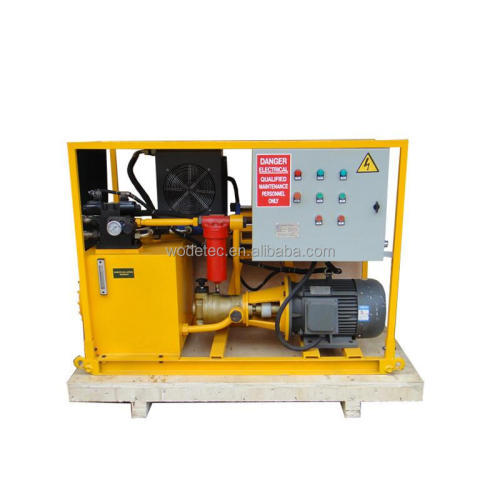

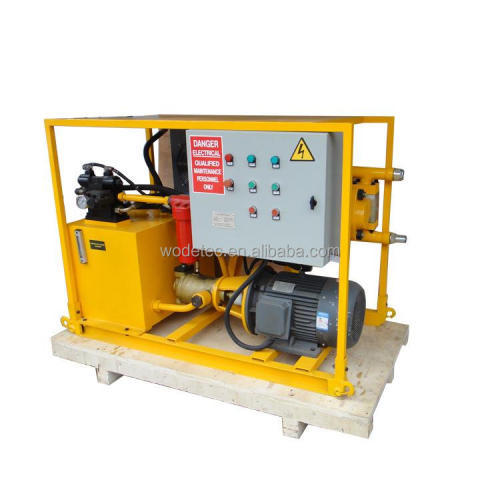

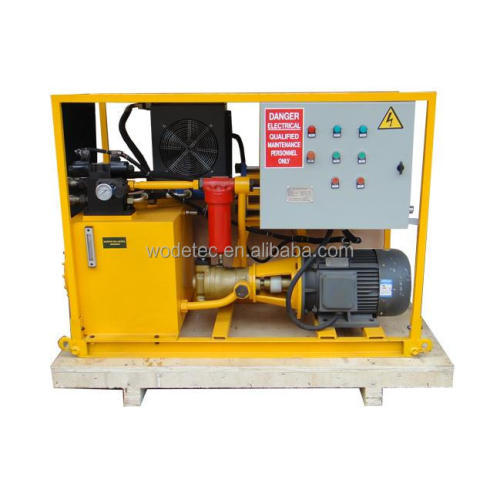

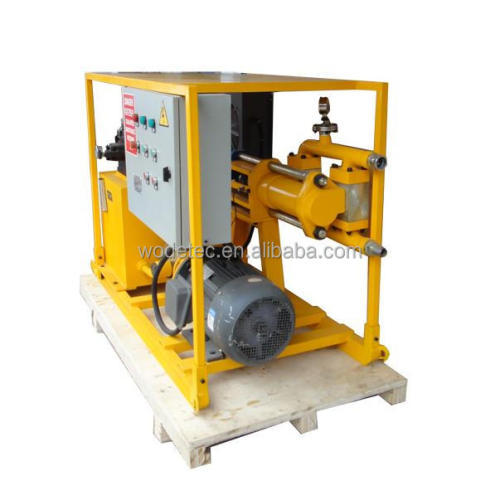

WGH100/100PI-E used single cylinder piston grouting pump made in China
WGH100/100PI-E hydraulic drive grouting pump are a universal high-pressure grouting pump and is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
Feature of small cement jet grout pump:
1. Single piston with double-acting.
2. Hydraulic drive
3. Compact structure
4. Ball valve
1. Single piston with double-acting.
2. Hydraulic drive
3. Compact structure
4. Ball valve
Technical Data
|
Item
|
WGH70/100PI-E
|
WGH100/100PI-E
|
||
|
Rated Output
|
0-70 L/Min
|
0-100 L/Min
|
||
|
Rated Pressure
|
10MPa(1450PSI)
|
10MPa(1450PSI)
|
||
|
Cylinder Dia.
|
110mm
|
110mm
|
||
|
Stroke/Minute
|
31
|
45
|
||
|
Inlet Dia.
|
38 毫米
|
38 毫米
|
||
|
Outlet Dia.
|
32mm
|
32mm
|
||
|
Power Unit
|
7.5kW
|
11kW
|
||
|
Transmission
|
Hydraulic drive
|
Hydraulic drive
|
||
|
Chassis
|
Skid
|
Skid
|
||
|
重量
|
450Kg
|
580Kg
|
||
|
Overall Dimension
|
1505x770x1110mm
|
1505x770x1110mm
|
||
|
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre
|
|
|
||
Product Structure
