Solar Drilling Rig Machine
Contact Now
Description
产品描述
产品描述

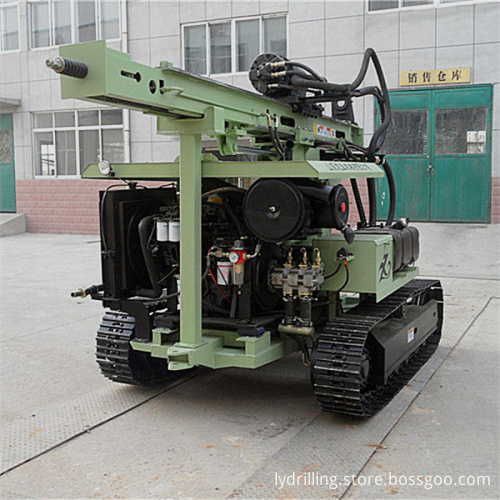

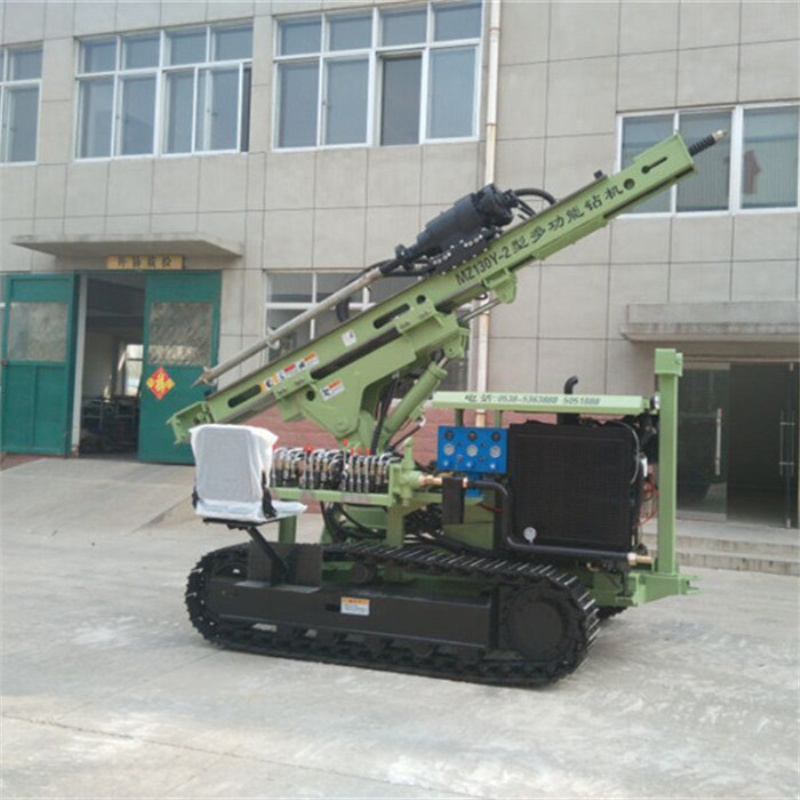

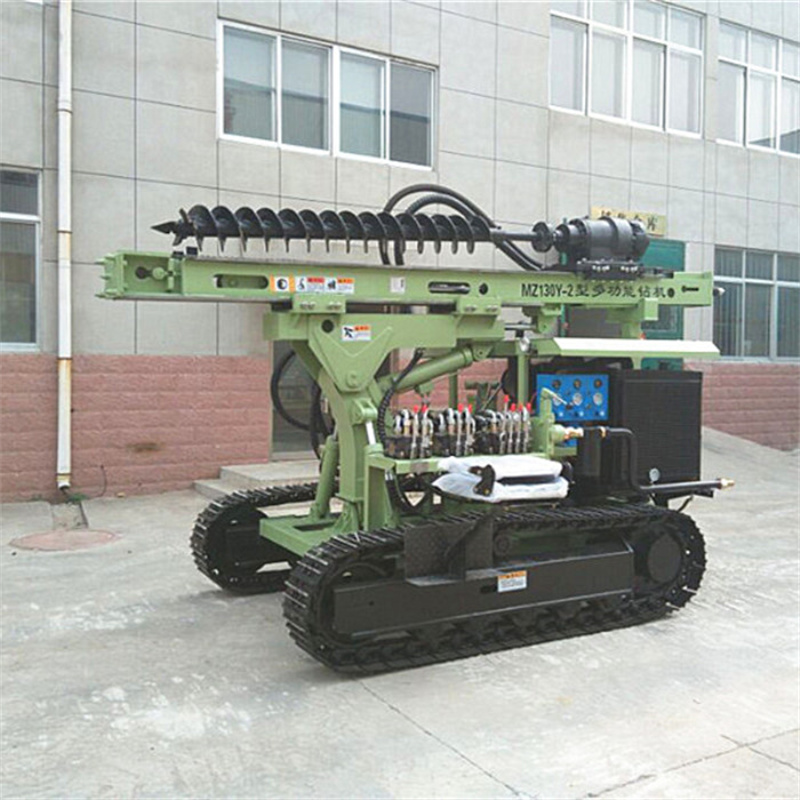

MZ130Y-2 Solar Drilling Rig
MZ130Y-2 hydraulic crawler drilling rig, use new type of hydraulic technology, low consumption, large rotary torque, convenient hole shifting . The drilling machine structure is compact,.while the mast has adjustable compensation function. when drilling, the mast supported on the ground, borehole stability is good. MZ130Y-2 drilling rig has reliable performance, high efficiency, suitable for operating conditions. It greatly reduces cost and improve the efficiency .
The drilling rig is mainly used for piling
Technical parameters
|
孔径（mm） |
90-300 |
|
内孔深度（m） |
0-100 |
|
Air consumption(m³/min) |
10-26 |
|
气压（Mpa） |
0.7-1.6（medium pressure） |
|
1.6-2.46（high pressure） |
|
|
Pipe diameter(mm) |
76/89 |
|
For rock(F) |
6-20 |
|
Bore diameter（screw）(mm) |
Max 400 |
|
内孔深度（m） |
0-30 |
|
Screw pipe diameter(mm) |
130-400 |
|
一次促销（mm） |
2000 |
|
Skid pitch(°) |
100 |
|
Swinging angle of skid(°) |
Left Right Total 40 |
|
Rotation Speed(r/min) |
0-70 |
|
Host Power (Kw) |
56 |
|
Climb ability(°) |
35 |
|
Dimension（L*W*H)(mm) |
4700*1950*2500 |
|
重量（Kg） |
4710 |
|
行走速度（km/h） |
0-2.5 |
产品展示
