Product ID: 66680285

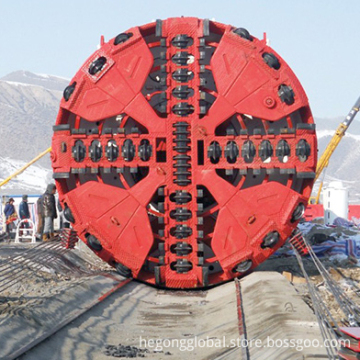

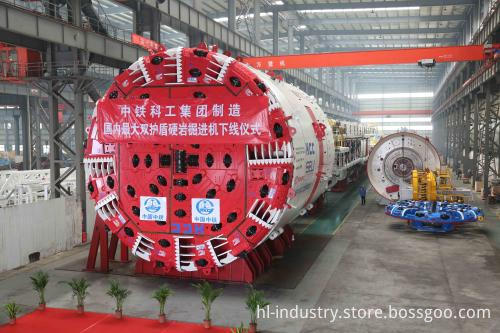

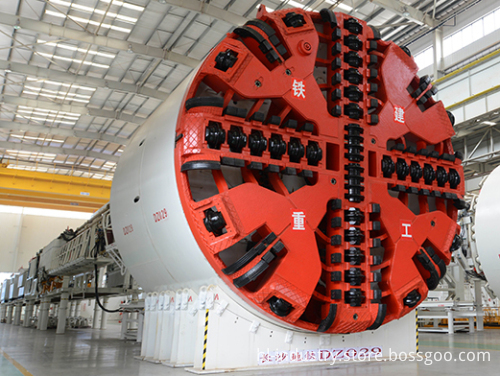

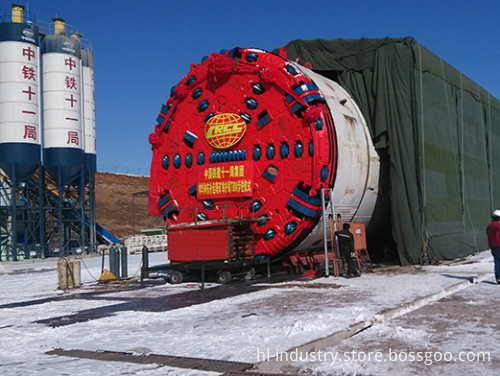

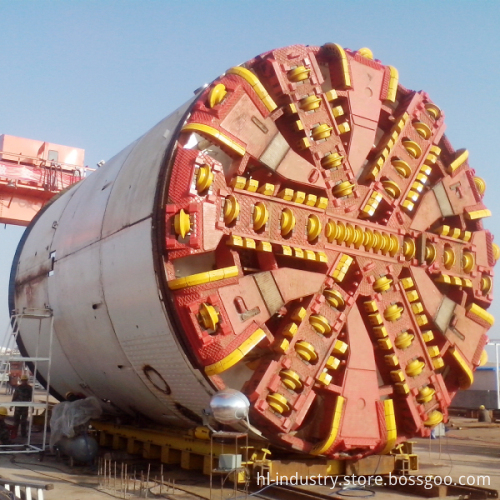

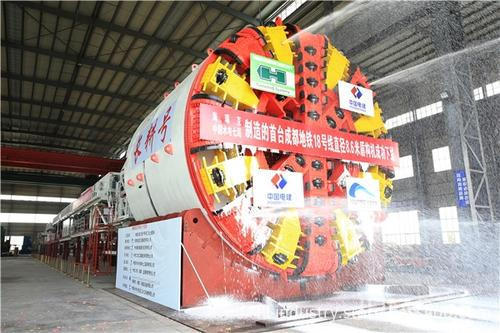

High Speed Balance No-Dig Slurry Compound Pipe Jacking Tunnel Boring Machine for Steel Pipes: ZTT5490
Contact Now
Description
产品描述
Features
- Advance borehole drilling; advance support; direct observation of lithology change; easy to draw geological map.
- Hardox plate, composite chromium-carbide wear-resistant plate as well as hard alloy block with high wear resistance are materials of the cutter
-head, which ensures long service time. - Double row cylindrical roller thrust bearing is used in the master drive, ensuing
long service lifetime and high safety.
long service lifetime and high safety.
- Reliable and high-efficient PLC control system, real time on-line monitoring and data collection.
- Innovative multi-material transport system ensures safety and high efficiency in the process of material
transportation.
transportation.
- Equipment is easy to dismantle and install due to proper allocation of equipment.
- Foam system with single tube and single pump performs reliably and its injection parameters can be consecutively adjusted.
Specifications | |
Product type | Double-shield |
Equipment model | ZTT5490 |
Excavation diameter | 5490mm |
The whole machine’s length | 310m |
thrust stroke | ＞1700mm |
The maximum designed advance rate | 120 mm/min |
The maximum auxiliary advance rate | 120 mm/min |
The minimum turning radius | 500m |
Designed service lifetime of main parts | ≥15000h |
