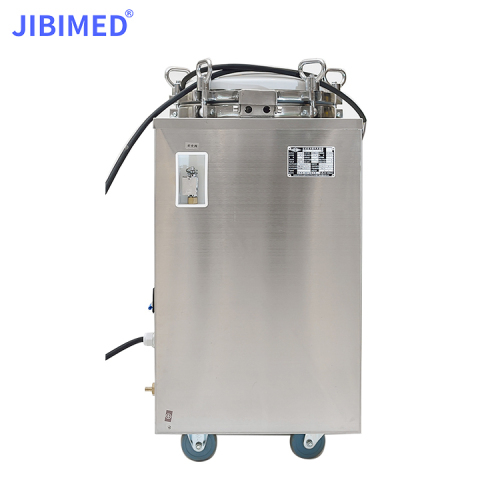

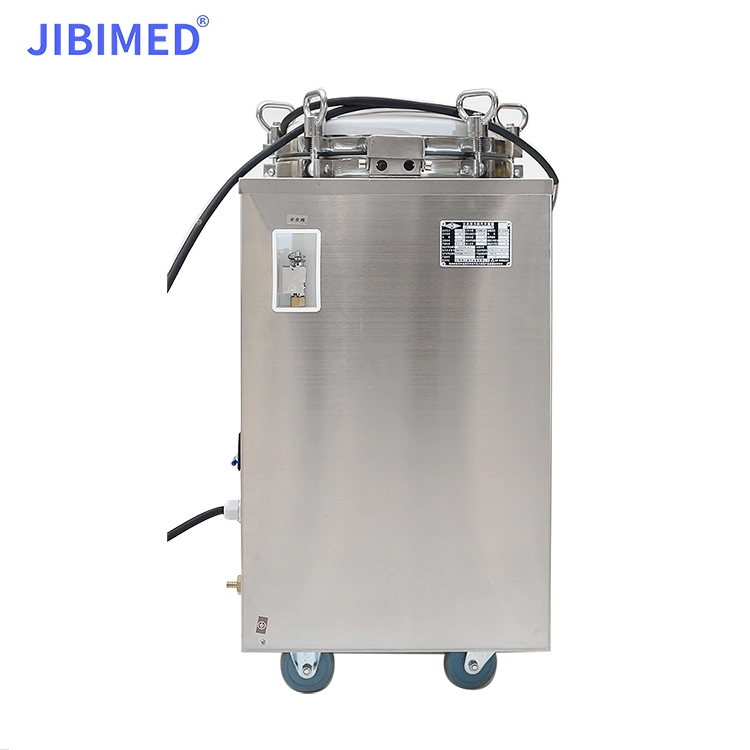

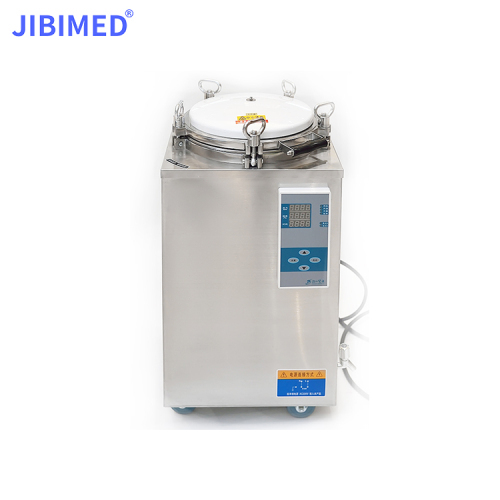

Vertical Pressure Steam Sterilizer
Description
Product description
Use
The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Characteristics
• Fully stainless steel structure.

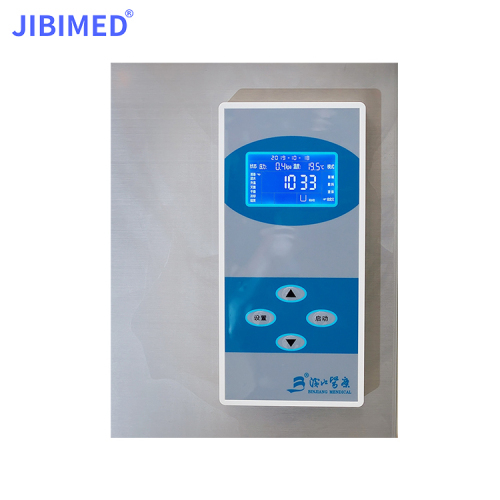

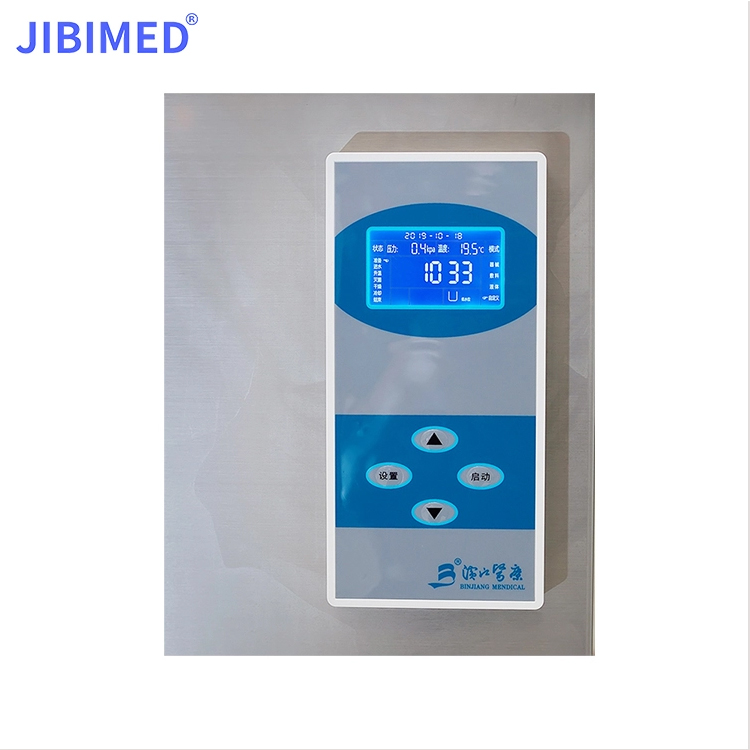

• LED display of working status, touch type key.
• Auto discharge the cool air, and steam discharging automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Easy to operate, safe and reliable.
• With two stainless steel sterilizing baskets.
Technical Data
|
型 |
LS-35LD |
LS-50LD |
LS-75LD |
LS-100LD |
LS-120LD
|
LS-150LD |
|
|
Technical Data |
|||||||
|
Chamber volume |
35L φ318×450mm |
50L φ340×550mm |
75L φ400×600mm |
100L φ440×650mm |
120L φ480×660mm
|
150 升 φ510×740mm |
|
|
工作压力 |
0.22米帕 |
||||||
|
工作温度 |
134℃ |
||||||
|
Max. working pressure |
0.23Mpa |
||||||
|
热平均 |
≤±1℃ |
||||||
|
Timer range |
0-99min/0-99hour59min |
||||||
|
温度调节范围 |
105-134℃ |
||||||
|

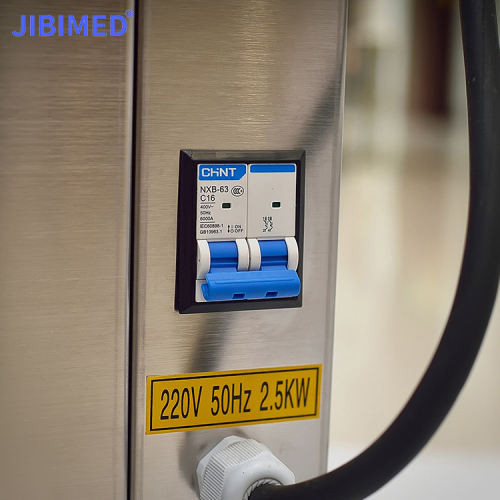

权力 |
2.5KW/AC220V 50HZ |
3KW/AC220V 50HZ |
4.5KW/AC220V 50HZ |
6KW/AC220V 50HZ |
|||
|
Overall dimension(mm） |
470×450×840 |
520×500×970 |
550×530×990 |
580×560×1060 |
630×610×1130 |
660×640×1130 |
|
|
Transport dimension（wooden case）（mm） |
570×570×1000 |
610×610×1130 |
650×650×1150 |
680×680×1220 |
730×730×1280 |
760×760×1280 |
|
|
G.W/N.W(wooden case) |
64Kg/46Kg |
75Kg/56Kg |
90Kg/67Kg |
98Kg/73Kg |
126Kg/101Kg |
136Kg/111Kg |
|
|
Transport dimension(carton)(mm) |
550x540x920 |
580x580x1040 |
630x610x1060 |
670x660x1170 |
- |
- |
|
|
G.W/N.W(carton) |
51kg/46kg |
64kg/56kg |
75kg/67kg |
83kg/73kg |
- |
- |
|
