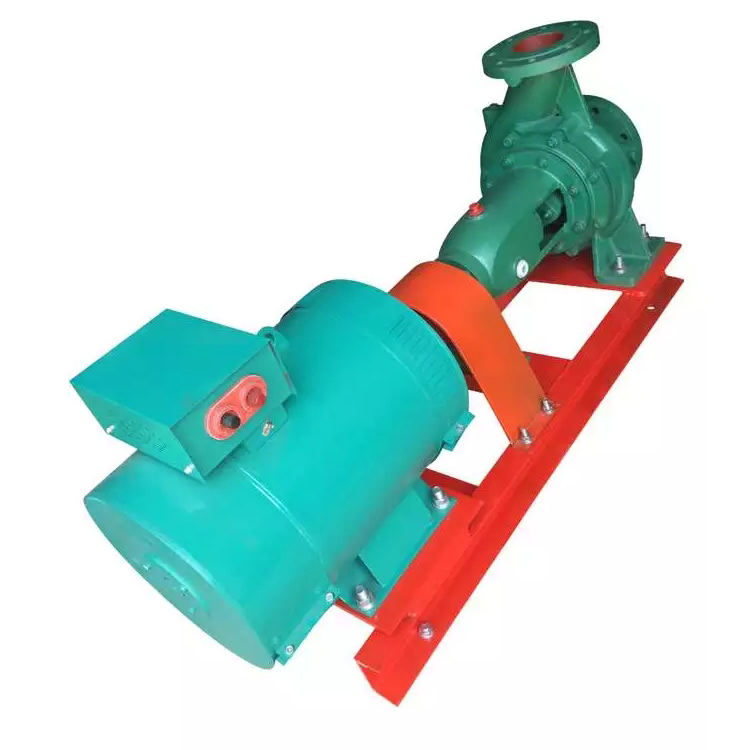

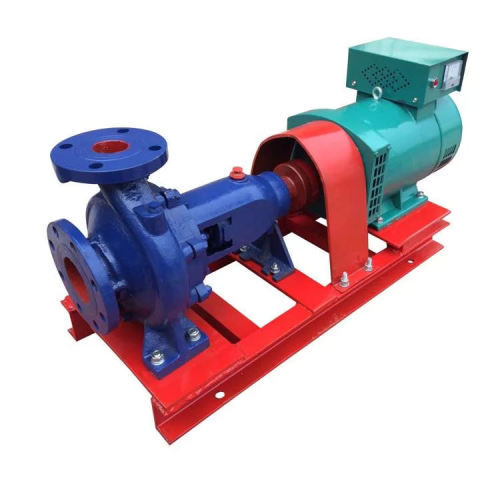

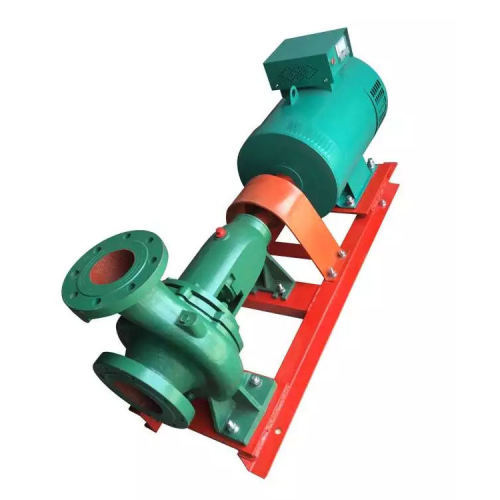

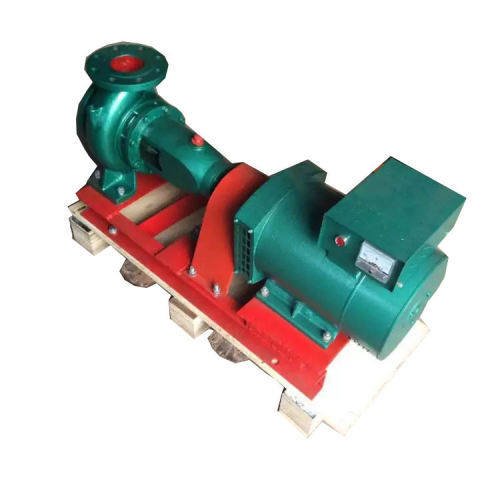

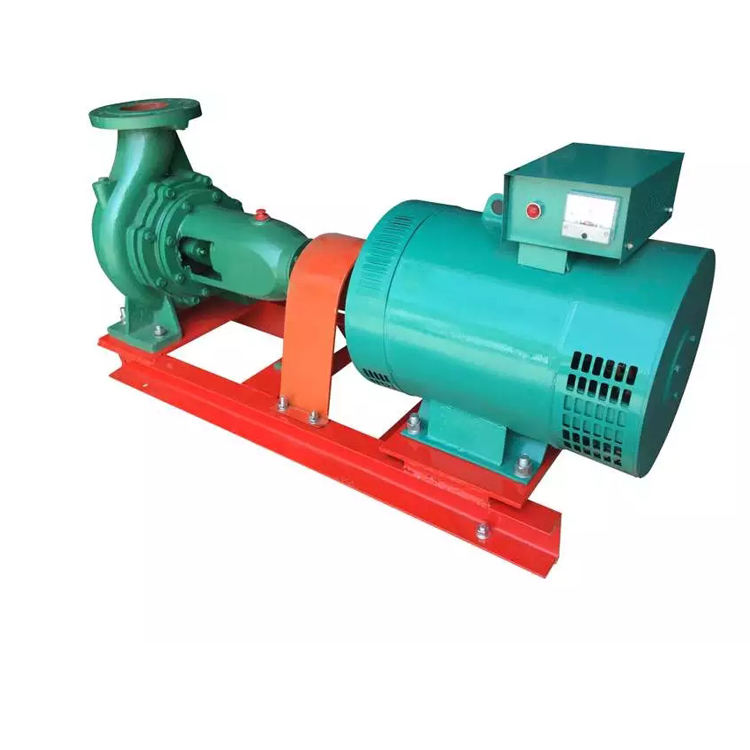

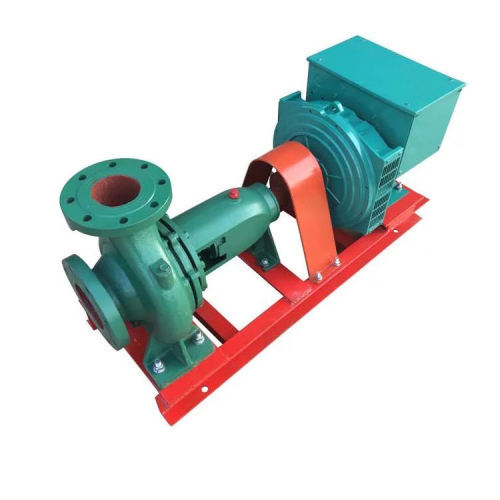

High Quality Mini Hydro Power Turbine Generator Systems
Contact Now
Description
产品描述
高品质微型水力涡轮发电机
产品特点：
1、轴向/金属轴压 - 广泛应用于低水头、高流量的河流;
2、混流式 - 混流式水轮机结构紧凑，效率高，能适应较宽的水头范围，是世界上广泛应用的风机类型之一。
3、管状——结构类似于轴流;
4、倾斜 - 适用于高扬程和小流量的小型发电厂，紧凑，无导流管，可降低厂房的高扬程，同时减小开挖深度，降低厂房建设成本。
径流式水力发电机组主要特点：

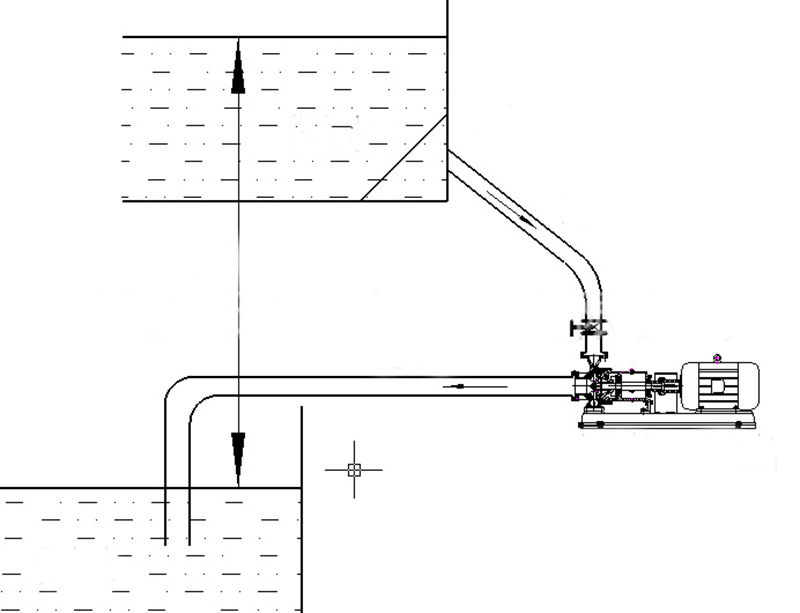

1.压力入口、压力出口;管道水、管道水。

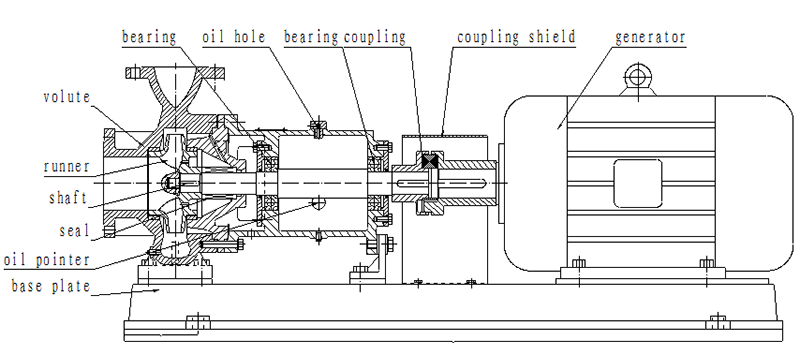

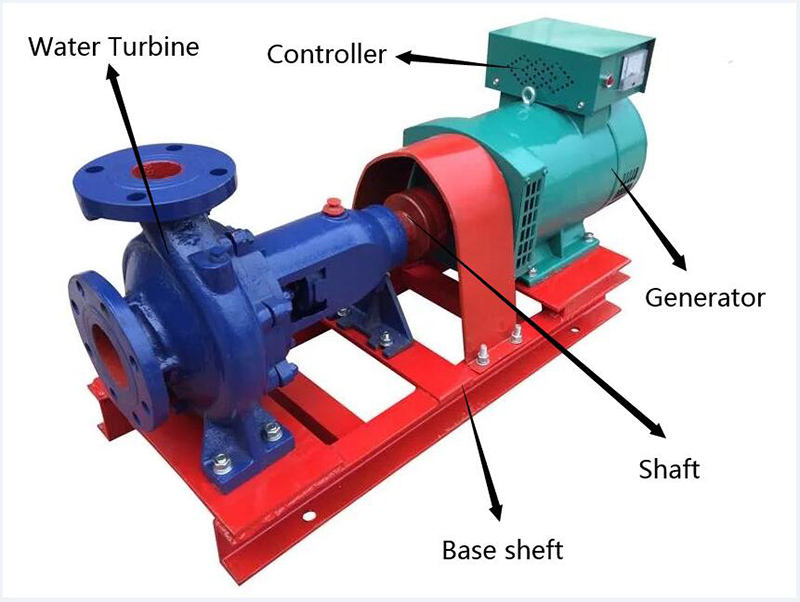

2.汽轮机与发电机分离，维修方便，更换易损件。
3.Turbine alone 2 bearings, generator 2 bearings, the structure is more reliable.
4.Hydraulic turbine bearings have an independent oil lubrication system, bearing life longer.
5.Hydraulic turbine has axial force balance device, can fully balance the axial force, bearing longer life
Paramater
| Model | ELK-3 | Water head | 10-60m |
| Power | 3kw | Flow rate | 0.007-0.039m3/s |
| Speed | 1500rpm | Motor | brush induction |
| Voltage | 230/400v | Frequency | 50/60HZ |
| Design life span | 30 years | Wear parts | bearing |
| Turbine inlet pipe dia | 100mm | Suggested turbine dia | 80-100mm |
| Weight | 130kg | Size | 144*60*70cm |
