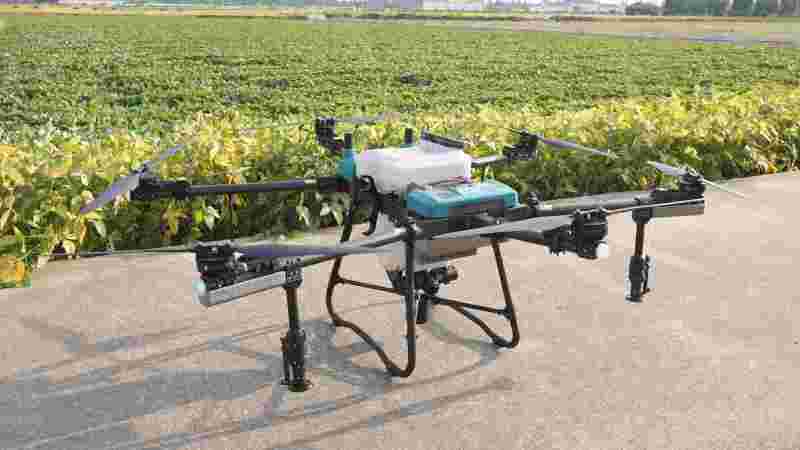

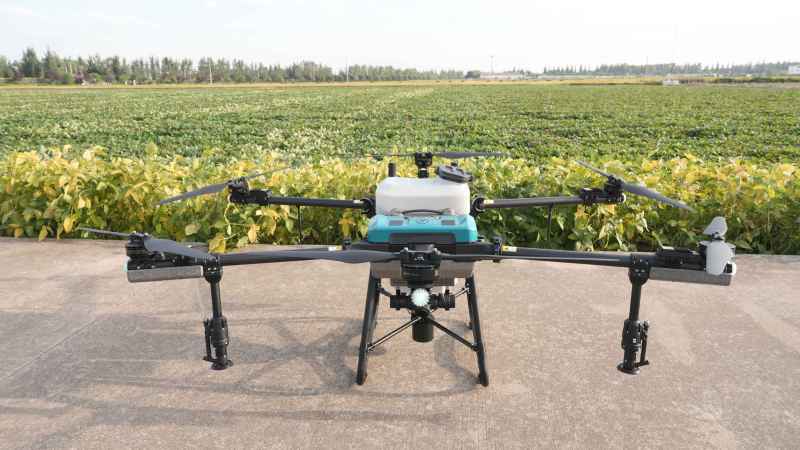

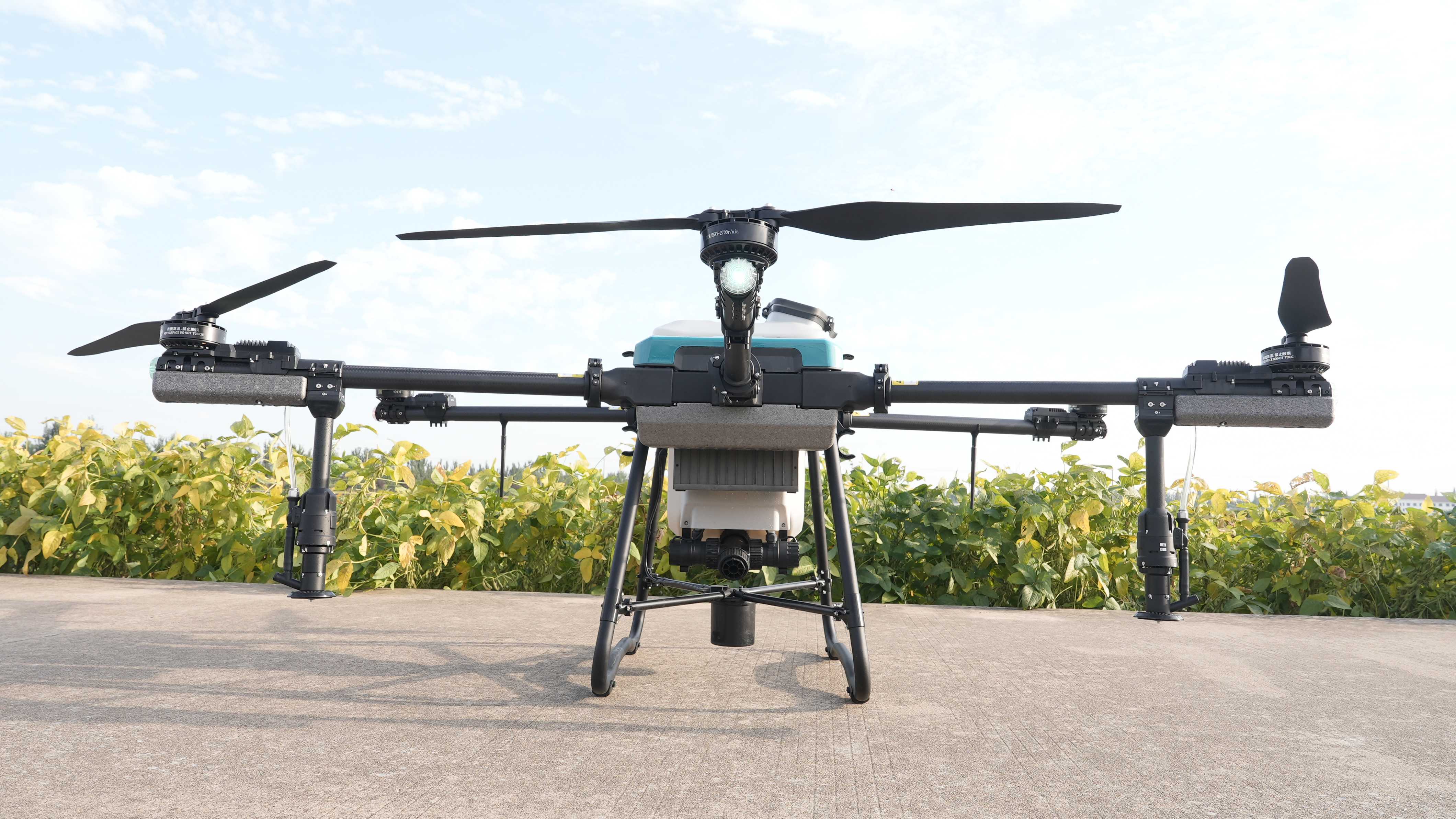

Agras T40 sprayer Agricultural Payload Drone Spraying
Contact Now
Description
1. How high and how far can the aircraft fly?Gps Navigation System
According to the Civil Aviation Administration, the electronic fence range of plant protection drones is 2000 meters in radius, and the Huida HD580 image transmission can support 2000 meters. Maximum flight altitude: 30 meters (relative altitude, "According to the Interim Regulations on Flight Management of Drone Pilot Aircraft")
2. Maximum flight speed?Uav Folding Drone
Maximum flight speed: 13.8 meters/second
3. Endurance time Spraying Drone
No-load hovering time: about 16.5 minutes (take-off mass: 68KG) Full-load hovering time: about 6.5 minutes (take-off mass: 138KG) Normal spraying operation can fly for a maximum of about 8-9 minutes
4. How is the operation efficiency?Uav Drone Crop Sprayer
Spraying: Maximum 380 mu/hour (mu dosage 2L, spray width 8 meters, speed 10 meters/second height 3 meters) Sowing: Maximum 2 tons/hour (mu dosage 25KG, sowing width 7 meters, speed 13.8 meters/second, height 4 meters)
5. What are the advantages of JT580 over JT540S?
The flow rate of JT580 is increased to 30L/min, which is twice that of 540S. The efficiency will be greatly improved in high-flow operation scenarios.
The maximum spraying load of JT580 is 70L, and the efficiency of field operation is higher.
The maximum sowing load of JT580 is 80KG, and the sowing and pushing speed is 300kg/min, which greatly improves the efficiency of sowing operation.
6. How to mark the land?
It supports four ways of marking land: aircraft, RTK, remote control, and map. Among them, RTK has the highest accuracy; it will be compatible with pocket treasure marking and mobile phone marking in the future.
7. After spraying or running out of power, can you return home by yourself?
Yes
8. Can you record the point of drug interruption after the full autonomous operation is suspended?
Yes, before the data is cleared, the drug interruption point will be permanently recorded
