Use Dairy Centrifugal Milk Cream Separator
Description
Product description
With the gradual increasing in people's living, the dairy and beverage consumer market also continues to expand, as a result the people's attitudes of consumer also increase strongly from "drink milk" to "drink good milk". So the advanced equipments are very imprtant in the production process.
The centrifugal separator from Juneng has the special design for the centripetal pump and inlet/outlet port will create a soft separation environment for the material to ensure the active ingredient in the material is not destrooyed and made the nutritional value and freshness as well as original flavor keep well.
Milk cream separator is mainly used in milk processing industry, continually separate out cream and defatted milk from pure milk, at the same time remove the impurities and sediments, and it also can realize milk standardization according to fat content.
Junen Separator enable separate the extreme tiny ( as less than 1mm) solid particles which dispersed in suspensions from the liquid phase out.
Separator Model list :
|
DHN model is applied to dairy clarification
|
|
|
|
|
|
||||
|
Model
|
Capacity L/H
|
Inlet Pressure
|
Outlet pressure
|
Weight
|
Dimension mm
|
||||
|
DHN360
|
2000-5000
|
0.05 Mpa
|
0.1-0.35 Mpa
|
1200 kg
|
1530*1150*1500
|
||||
|
DHN470
|
5000-10000
|
0.05 Mpa
|
0.1-0.4 Mpa
|
1600 kg
|
1800*1200*1750
|
||||
|
DHN550
|
10000-20000
|
0.05 Mpa
|
0.1-0.4 Mpa
|
2300 kg
|
1950*1550*1960
|
||||
|
DHN616
|
25000-35000
|
0.1 Mpa
|
0.3 Mpa
|
3000 kg
|
2185*1728*2082
|
||||
|
DHNZ model is applied to dairy skimming
|
|
|
|
|
|
|||
|
Model
|
Capacity L/H
|
Inlet pressure
|
Outlet pressure
|
Weight
|
Dimension
|
|||
|
DHNZ204
|
500-1000
|
0.05 Mpa
|
0.1-0.2 Mpa
|
520 kg
|
810*850*1350
|
|||
|
DHNZ360
|
1000-3000
|
0.05 Mpa
|
0.1-0.2Mpa
|
1200 kg
|
1530*1150*1500
|
|||
|
DHNZ470
|
3000-7000
|
0.05 Mpa
|
0.1-0.2 Mpa
|
1600 kg
|
1800*1200*2030
|
|||
|
DHNZ550
|
5000-10000
|
0.05 Mpa
|
0.1-0.2Mpa
|
2300 kg
|
1950*1550*1960
|
|||
The disc separator is specially used for the two-phase and three-phase separation.

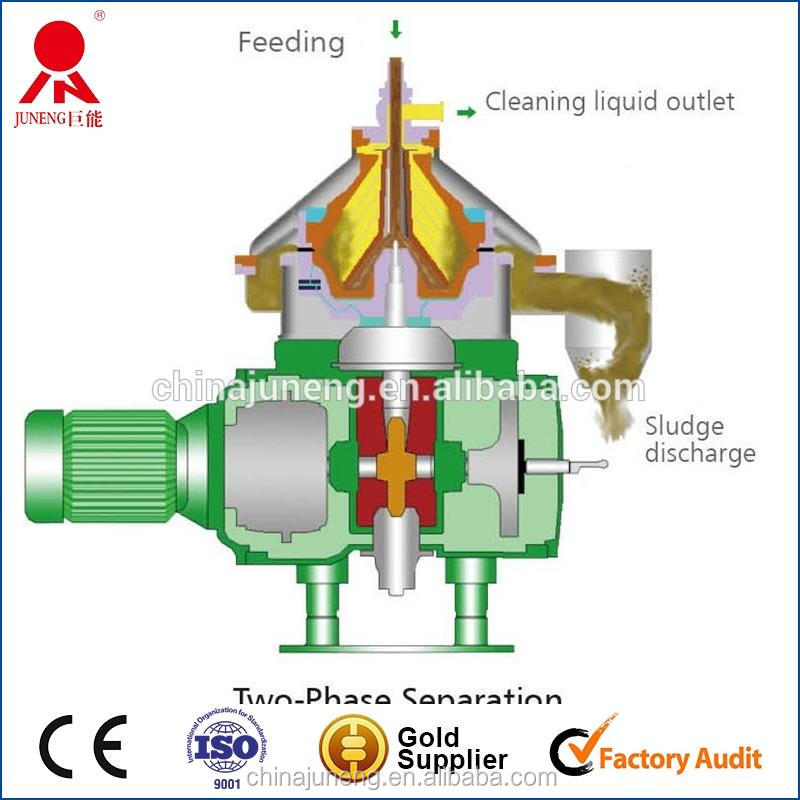

The two-phase separation is to separate the s uspended solid from liquid or s eparate two liquids which have the different specific gravity and are immiscible.

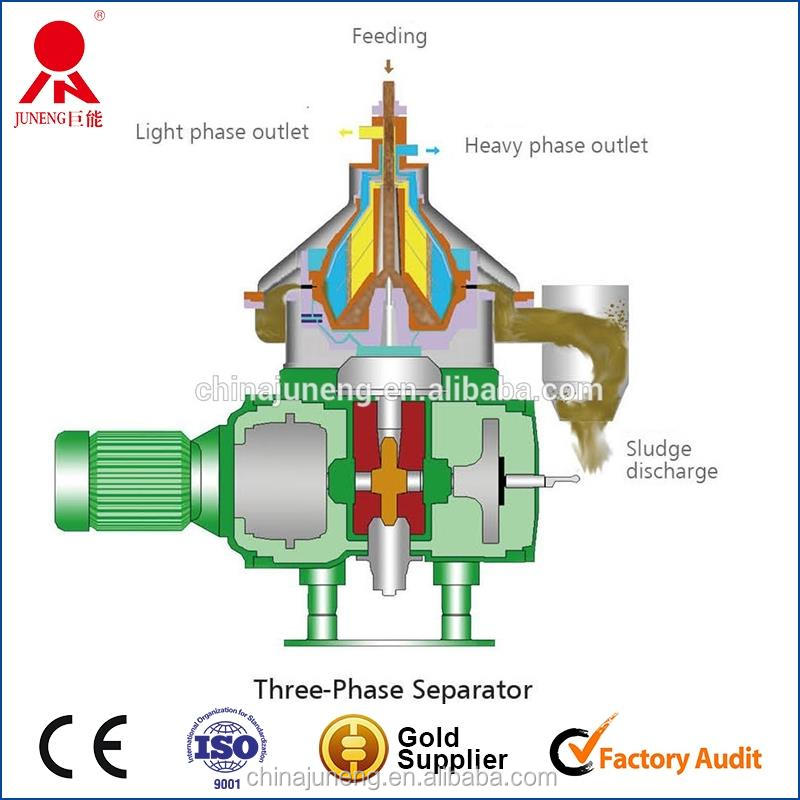

The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time .
Clarification mean two phase separation. The materials are feeding into the heart parts of this machine, the inside of the bowl.
Under the action of strong centrifugal force, the impurity will be removed from the raw material then get the clean milk.
