New Design Sausage Stuffer Meat Paste Extruder Machine
Description
产品描述

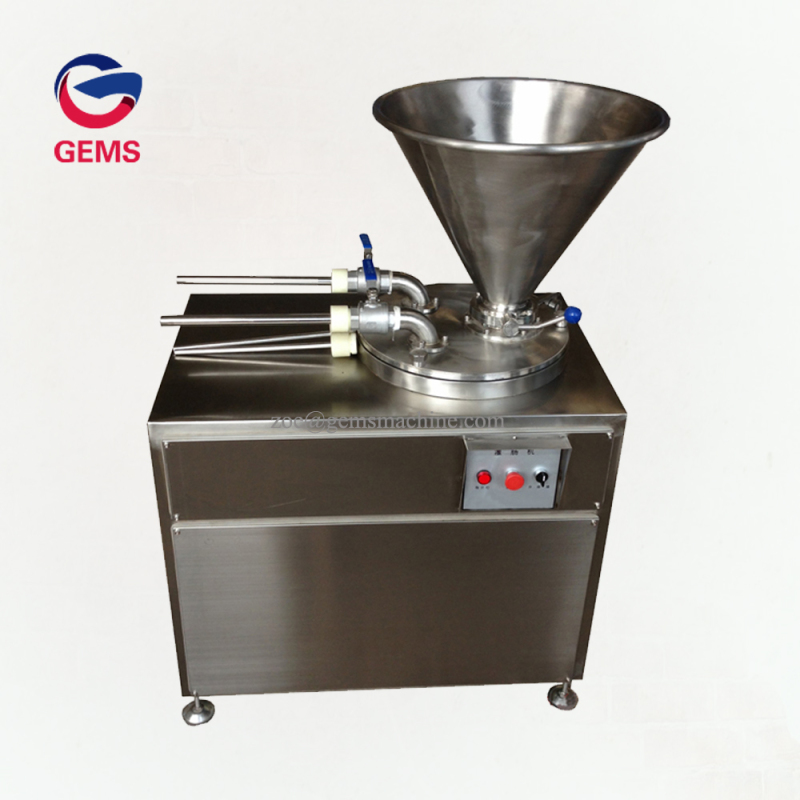

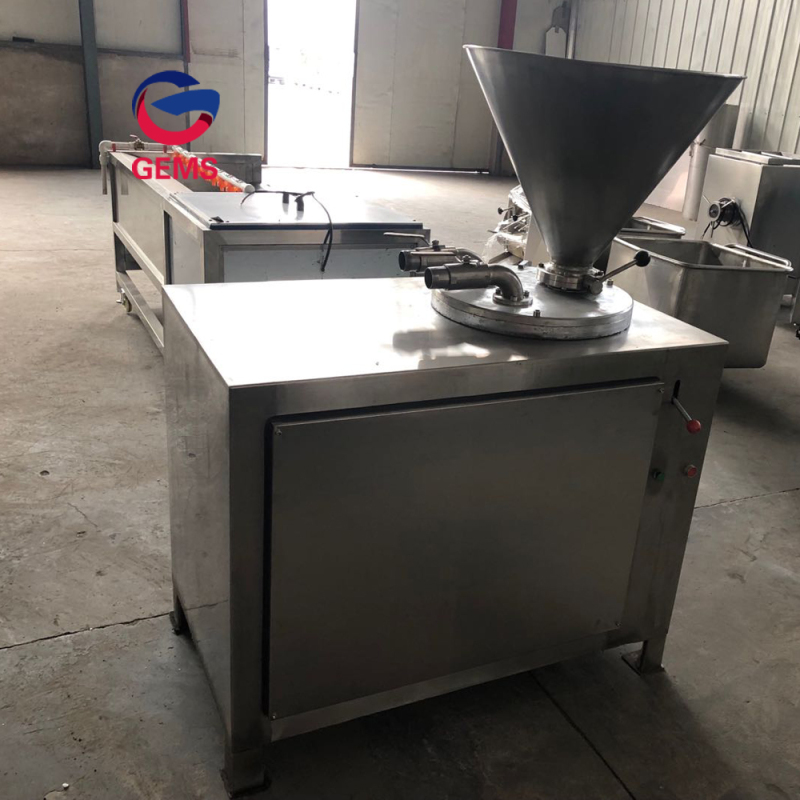

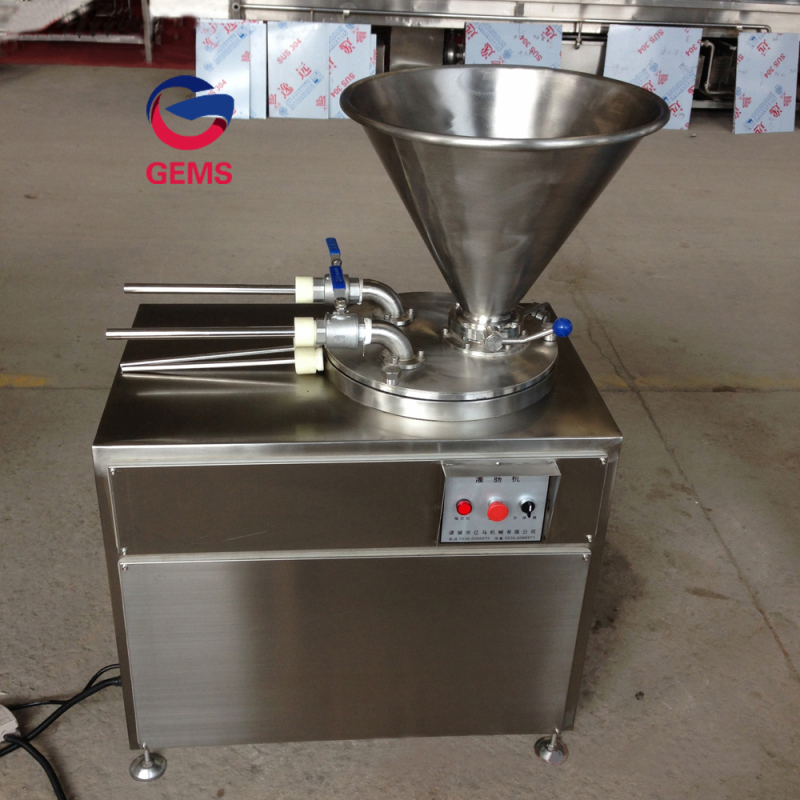

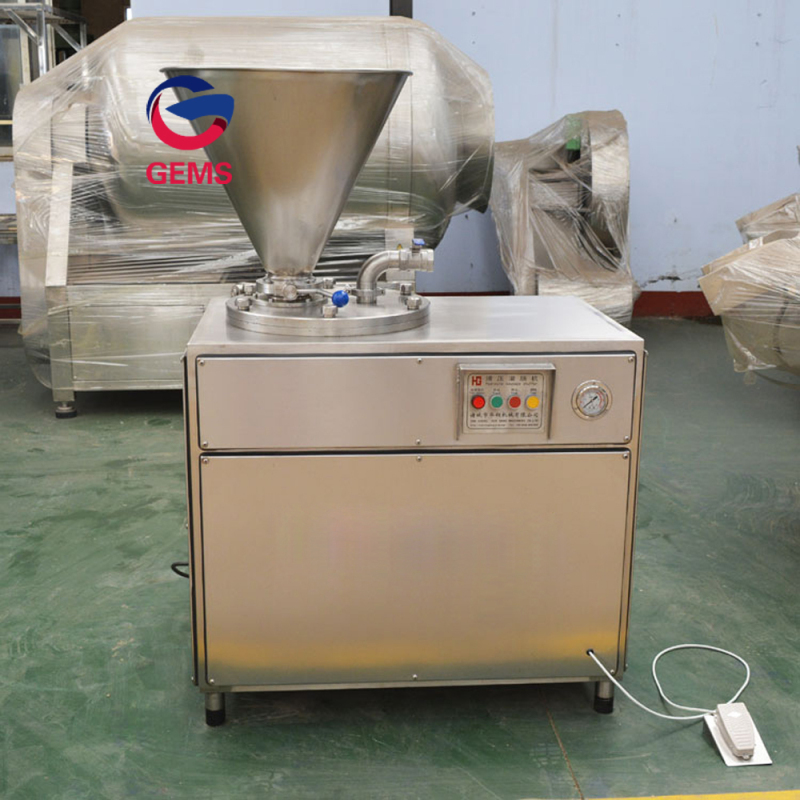

Introduction for New Design Sausage Stuffer Meat Paste Extruder Machine:
Our hydraulic sausage stuffer machine is widely used for filling various sausage products. Especially for the dry stuffing, the effect is better than other sausage stuffers. The upper part of the machine is equipped with a storage hopper and a butterfly valve, which can realize continuous filling without opening the cover, which improves the work efficiency.
Working Principle for Meat Paste Extruder Machine:
After the hydraulic station is started, the lifting of the main shaft in the hydraulic cylinder is controlled by the manual rotary valve, thereby driving the lifting of the material piston in the material cylinder. When the material piston rises, opening the filling ball valve can realize the filling work; when the material piston descends, opening the butterfly valve under the hopper can realize the effect of sucking the material in the hopper into the hopper. Continuous lifting can realize the production state of continuous filling, thereby improving production efficiency.
Technical Parameters of New Design Sausage Stuffer Meat Paste Extruder Machine:
| 型 | 权力 | 能力 | Feed Range | Dimension | 重量 |
| GC20 | 1.5kw | 200-400kg/h | Φ12-48 | 1020*590*1320mm | 180kg |
| GC40 | 2.2kw | 500-1000kg/h | Φ12-58 | 1180*650*1360mm | 300 公斤 |
This is an important equipment for sausage processing, it also needs the meat tumbler, sausage stuffer, meat grinder machine, meat bowl cutter and smoker oven to get final sausages.
We also Have small hydraulic sausage stuffer machine:
