Full Automatic Large Capacity Twin Screw Fish Feed Extrusion Production Line
Description
产品描述

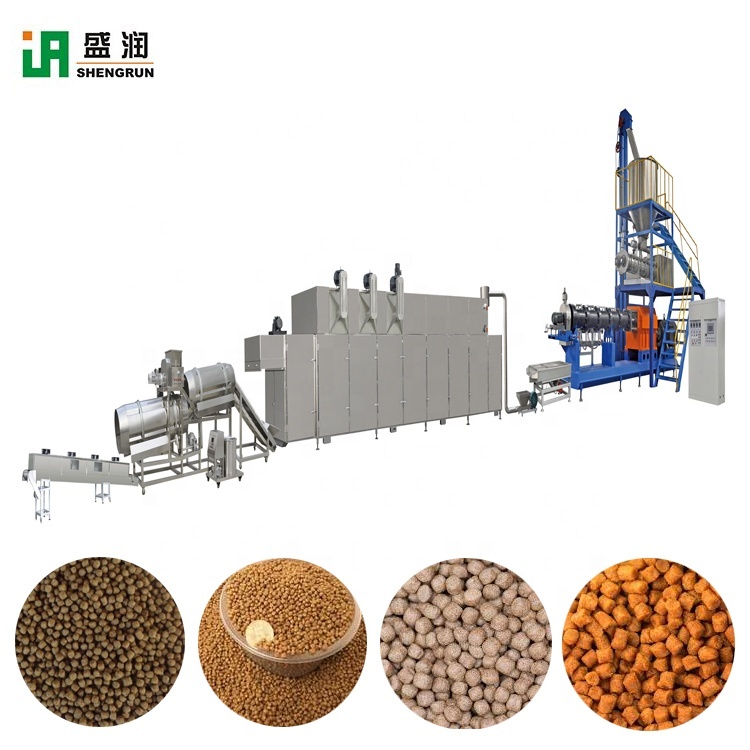

Automatic Fish Feed Production Line
Introduction of Automatic Fish Feed Production Line
This processing line is specially designed to produce healthy pet food, such as dog food, cat food, ,also fish feed for these animals. Normally using grains powder as main material, mixing with meat, bones powder, fish powder as a flavoring. Pet food machine through adopting pre-conditioning system for raw material, it can increase capacity and reduce power consumption. This line would satisfy different demands for capacity and quality. Producing the many kinds of shape by changing the mould. For this pet food line, we have small capacity and large capacity for your choice.
Samples show
The basic formula of sample
corn meal, wheat flour, wheat bran,rice flour, corn starch, de-oil soya flour, meat, bone, animal oil, vitamins, minerals, food color etc.
Humidity: the moisture is no more than 15%.
Sizes: (1) diameter: from 1.5mm-25mm. (2) length: user-defined.
Process flow: mixing--extruding & puffing-Conveying --Drying--flavoring--Cooling(Packing)
TSE65/70 Pet Food Production Line( capacity 150kg/h, 300kg/h ) flow chart

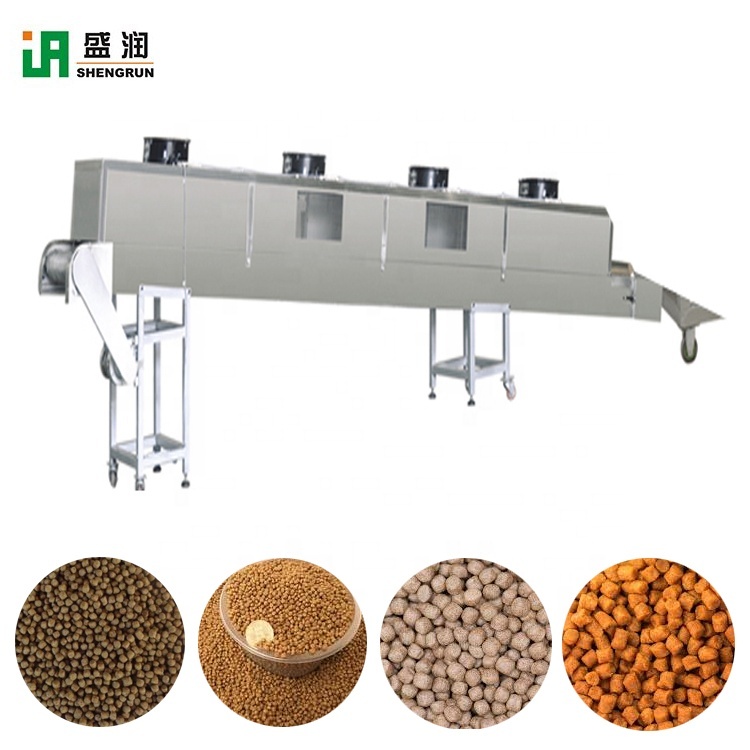

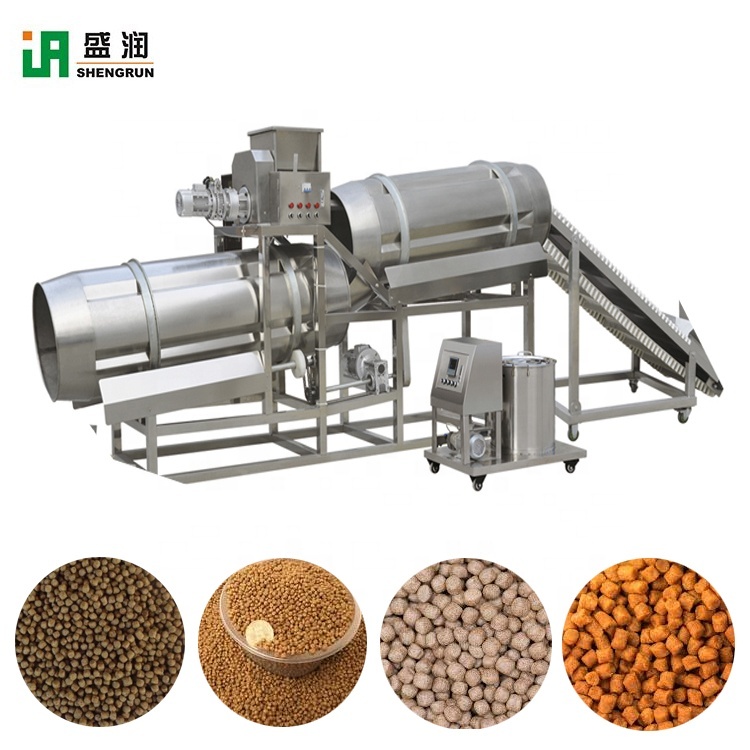

mixer → screw conveyer → TSE65/70 twin-screw extruder → hoister(air conveyer) → 5-layer 5 / 8 meter drying oven → single drum flavoring line → cooling machine → packing machine(optional)
TSE85/90/95 Pet Food Production Line( capacity 500kg/h/, 800kg/h, 1500kg/h) flow chart
mixer → screw conveyer → TSE85/90/95 twin-screw extruder → hoister(air conveyer) → drying oven → double-drum flavoring line → cooling machine → packing machine(optional)
TSE120/140 Pet Food Production Line( capacity 3000kg/h, 6000kg/h) flow chart
raw materials mixing system → screw conveyer(bucket elevator) → Storage hopper → steam pre-conditioner → TSE120/TSE140 twin-screw extruder → hoister(air conveyer) → 9-layer 11 meter drying oven (bigger ovens) → double-drum flavoring line → cooling machine → Storage bin → packing machine(optional)

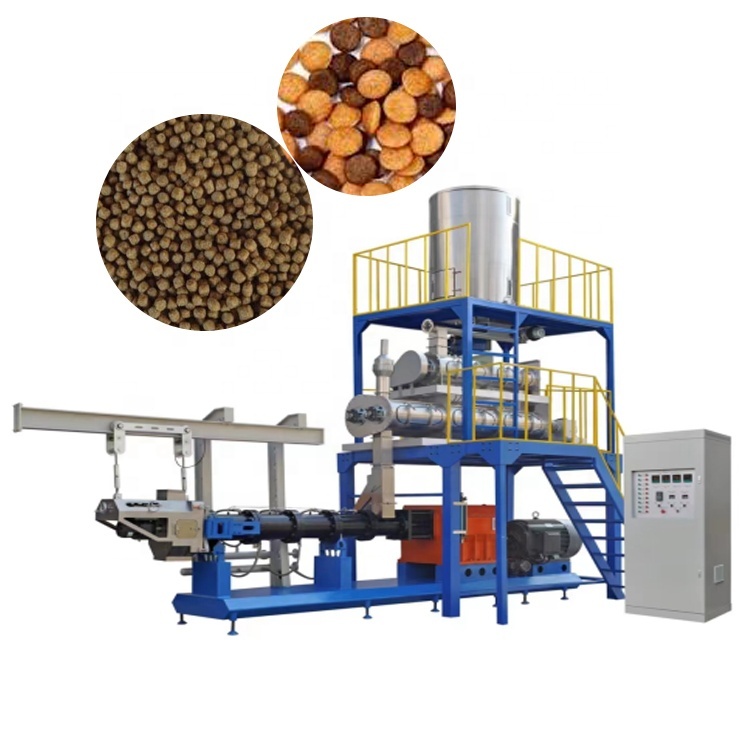

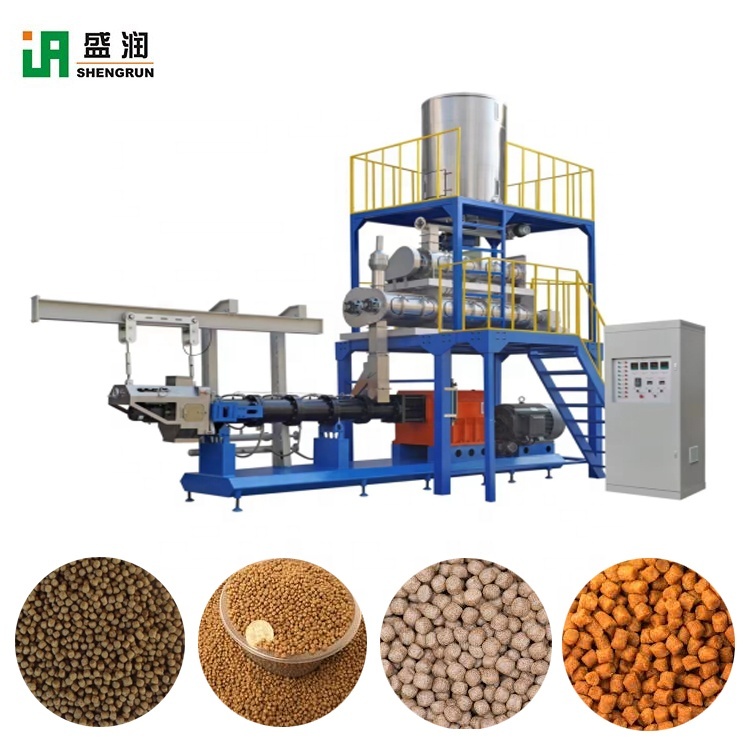

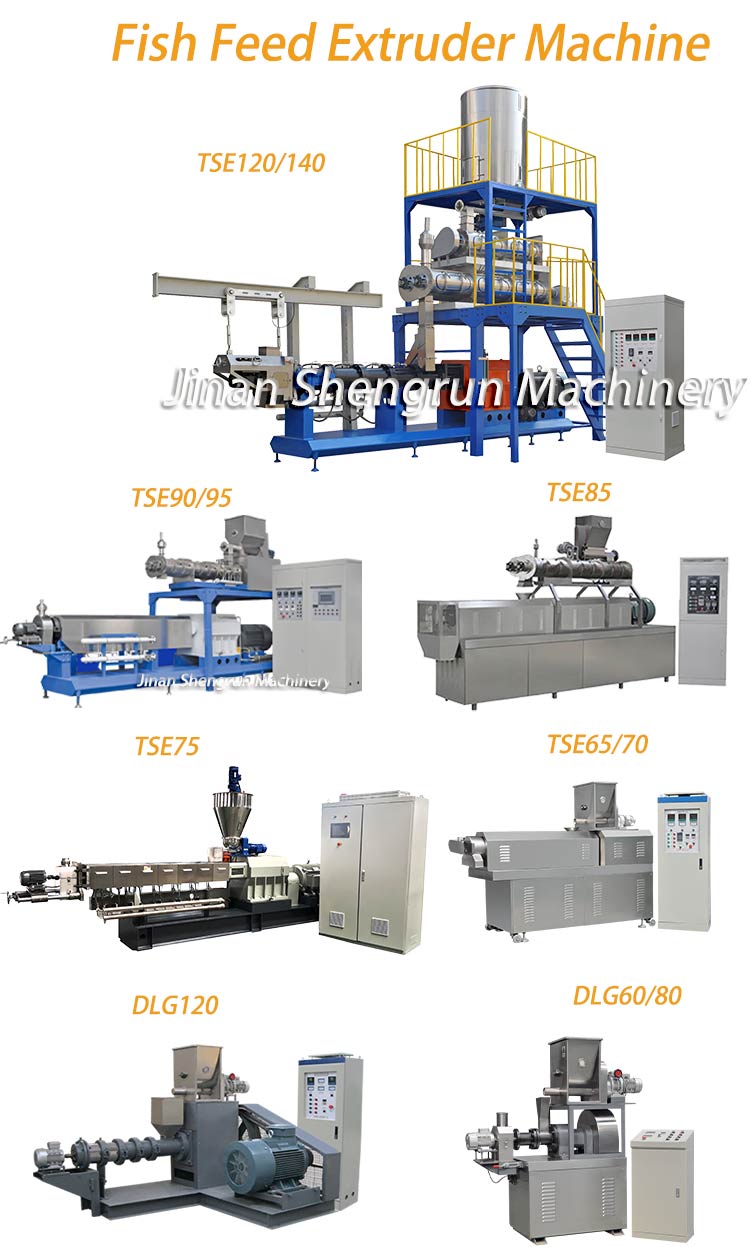

The extruder machinery
