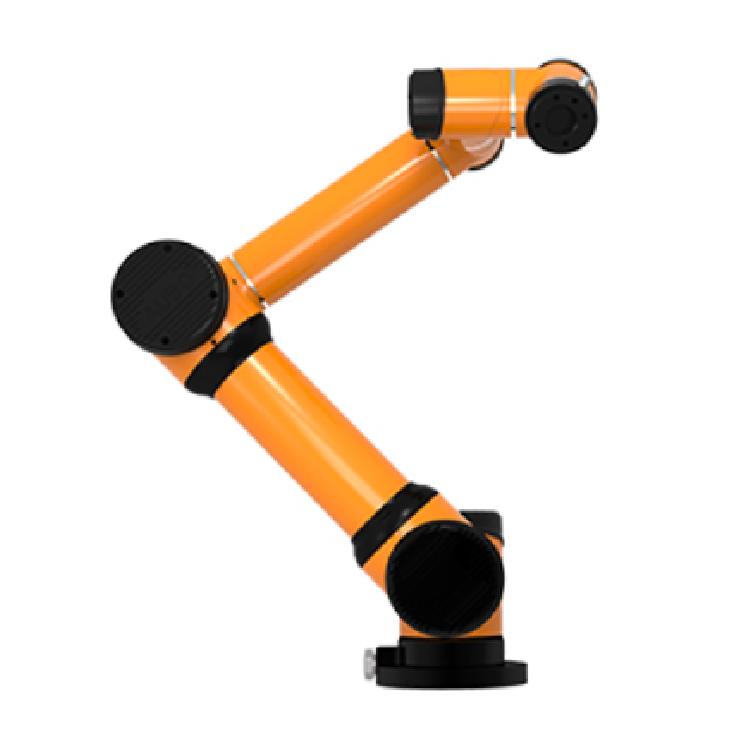

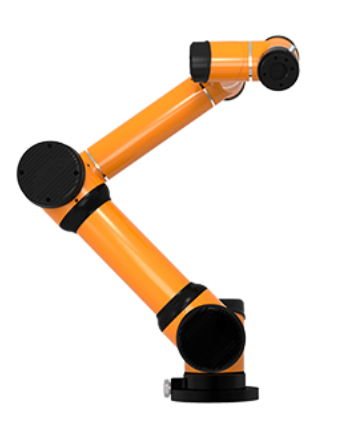

Universal Cobot Robot Aubo E10 6-Axis Collaborative Robot Arm for Welding and Palletizing
Description
产品描述
universal cobot robot Aubo E10 6 axis collaborative robot arm for cobot weld and palltizing
Safer work
With Elfin robots, there is no need to pay extra for safe operation the same as traditional robots. The robots have high collaborative performance and can perform a protective stop immediately when they encounter resistance, ensuring the safety among co-worker, workpieces, and production equipment.
More Flexible Deployment
Elfin robots can be mounted at any angle and installed anywhere to minimize the impact on the production lines. Redeployment requires very short time and is very suitable for small batches, customized and short-cycle production, which is the best choice for automation transformation.
Easier Operation
Elfin robots can be easily teached by moving the end of the arm to the desired position or desired trajectory,which is greatly saves the programing time. 10 minutes is absolutely enough for building one simple pick and place program.
Fast, Stable Ether CAT bus communication
The controller and robot joint adopt industrial EtherCAT communication, which enables the system to have excellent control performance and strong an-interference ability.
| Robot arm |  |
|
| Model | AUBO i10 | |
| Maximum reach | 1335 mm | |
| 最大有效载荷 | 10 kg | |
| Pose repeatability (ISO 9283) | ± 0.05 mm | |
| Number of axes | 6 | |
| Mounting position | Any Angel | |
| Lifetime | 30000H | |
| Weight | 37 kg | |
| Protection rating | IP54 | |
| Power | DC48V | |
| Communication Protocol | CAN Bus | |
| Program | Operated on the AUBOPE graphical user interface of the 12.5-inch touch screen | |
| Ambient temperature | 0-45℃ | |
| environment humidity | 25-85%(No condensation) | |
| Standard | CE/TUV/KCs | |
| Motion range |  |
|
| A1 | ±175° ; 180°/S | |
| A2 | ±175° ; 180°/S | |
| A3 | ±175° ; 150°/S | |
| A4 | ±175° ; 180°/S | |
| A5 | ±175° ; 180°/S | |
| A6 | ±175° ; 180°/S | |
| Controller Cabinet | ||
| Size | 727mm*623mm*235mm | |
| Weight | 20 Kg | |
| length of cable | 5 M | |
| Colour | Black | |
| IP rating | IP54 | |
| Power | 100-240VAC,50-60HZ | |
| Digital input/output | 16/16 | |
| Teach pendant |  |
|
| Size | 355mm*235mm*54mm | |
| Weight | 1.8 Kg | |
| Screen | 12 inch resistive LCD touch screen | |
| length of cable | 4 M | |
| IP rating | IP54 | |
| Colour | Black with orange | |
