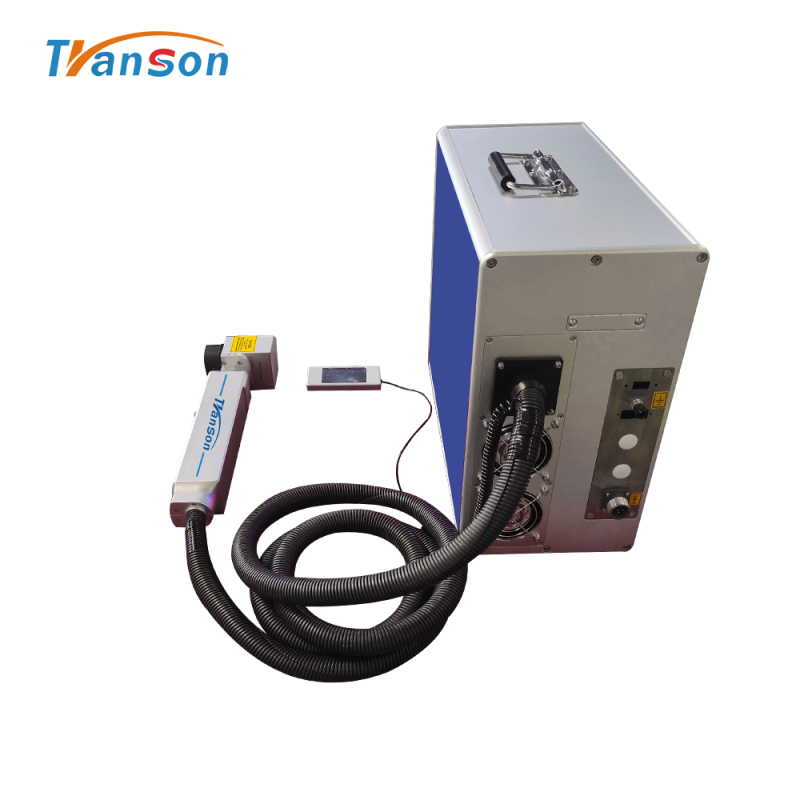

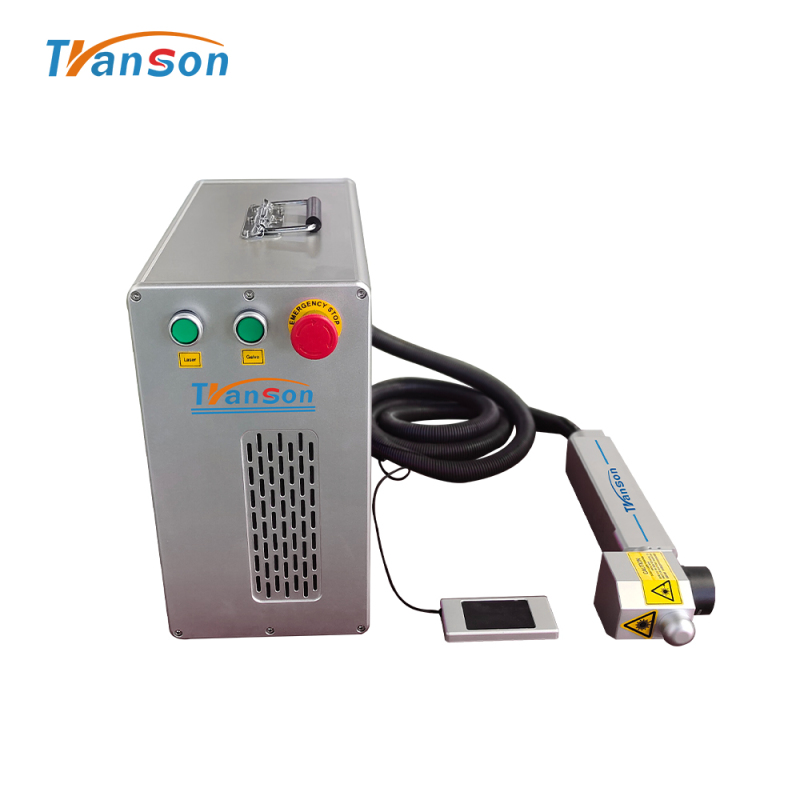

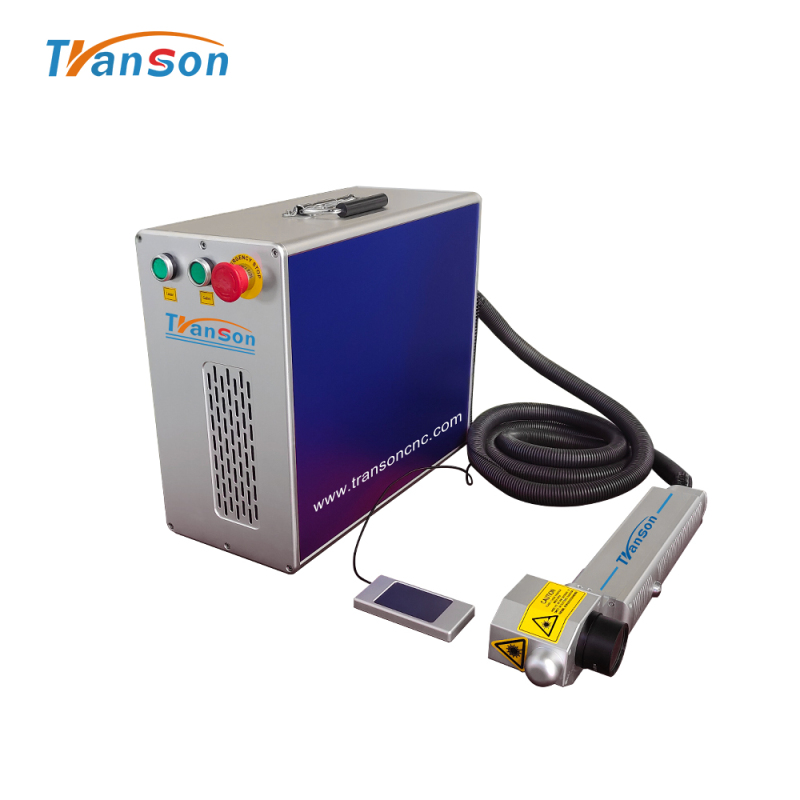

professional laser cleaning machine for rust removal
Description
产品描述
100W 200W 光纤激光清洗机，用于金属碳钢除锈
激光清洗机1000w系列工业激光清洗机已在市场上广泛宣传。根据用户
的反馈和对背包式激光清洗机100w的市场调研，我公司现提供新型激光清洗机100w、便携式激光清洗机、1000w激光清洗机，以满足更多人对激光清洗设备的需求。
新型激光工业激光清洗机体积小，便于携带，清洗过程非常简单快捷，紧凑且可推的设计可以满足您在任何地方进行激光清洗的需求;您可以根据清洗不同表面积的需求，将扫描范围从 1mm 调整到 150mm。
这是我们光纤激光清洗机的一种新型，它是一种微型光纤激光清洗机，具有光纤激光机的全部功能和紧凑的机器尺寸。主要用于除锈和脱漆。它适用于大多数金属表面。光纤激光清洗机的特点使其非常适合工业级除锈、脱漆、除油。
|
型
|
TSF
|
|
激光类型
|
脉冲 光纤激光器
|
|
激光功率
|
200 瓦
|
|
光束质量
|
M2<1.5
|
|
Laser wavelength
|
1064±1nm
|
|
Power adiustment range
|
10~100%
|
|
Output filber length
|
1~2m
|
|
Frequency of pulse
|
20~250KHz
|
|
Power supply
|
220V/60HZ/8A(110V/60HZ/15A can choose)
|
|
Cooling system
|
Air Cooling
|
|
Graphic format supported
|
EMF.PNG.PCX.CMP.FPX.CAL.ICO.JPG XML.EPS.CLP.WMF.TIF.CUR.PSD.TGA |
|
Working area
|
Standard:110"110mm,
Optional:50*5omm,75*75mm,150*15omm,175mm*175mm,200*200mm,300*300mm. |
|
Marking depth
|
<1mm
|
|
Marking speed
|
<7000mm/s
|
|
Min. line width
|
0.05mm
|
|
Repeatability accurac
|
0.003mm
|
|
Power Machine
|
300w-800w(Depend on fiber laser power)
|
|
Operation temperature
|
0~40°C
|
|
Operation system
|
Raycus |
|
Warranty
|
two years
|
Samples:
Application range
* Surface oil, stains, dirt cleaning
* Metal surface rust removal
* Rubber mold residue cleaning
* Welding surface / spray surface pretreatment
* Surface coating, coating removal
* Surface paint removal, paint stripping treatment
* Stone surface dust and attachment removal
1. World-famous laser source: IPG, RAYCUS... for your choice.
2. SMARTECH laser technical laser Gun: very convenient to operate; and the support can help you easily to find the focus lens.
3. Touch screen: easily to operate; language can be changed to your language.
4. Standard fiber cable length is 5M: you can take it everywhere you want; cable length can be customized if you want.
5. Folden cover is easy for keeping and picking the laser gun and tool.
6. Protective glasses offer you the eyes safety guarantee.
7.Easy to install, slight and compact, low noise, suitable for a variety of processing environments.
8.Quick, smooth, and accurate cleaning to remove surface paint, coating, and oxide layers.
9.No chemical reagents, no water, no dust, environmentally friendly cleaning.
10.The dedicated laser control system, powerful, automatic operation, low entry for technicians.
