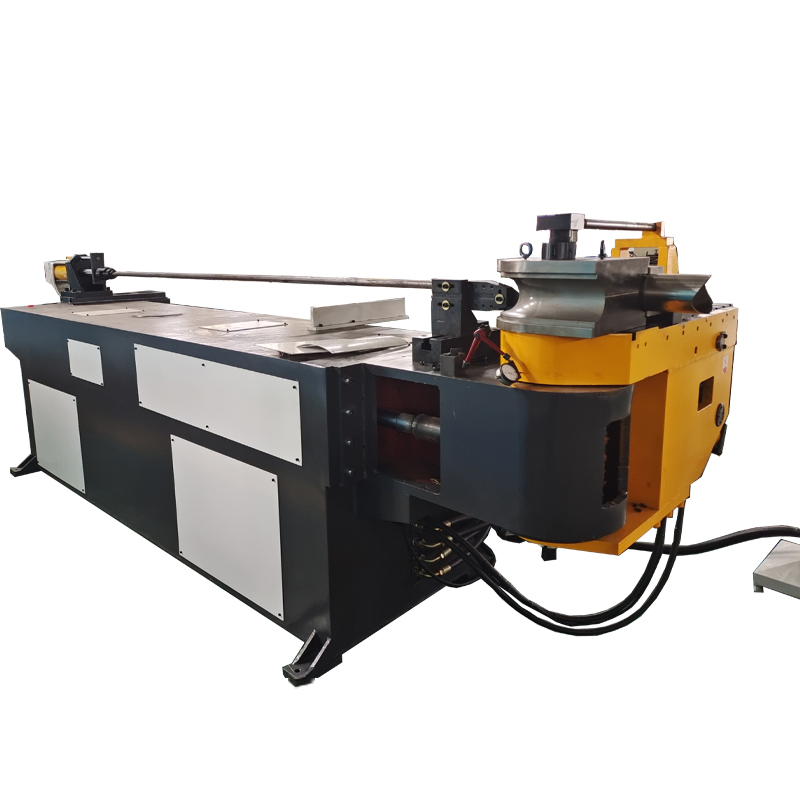

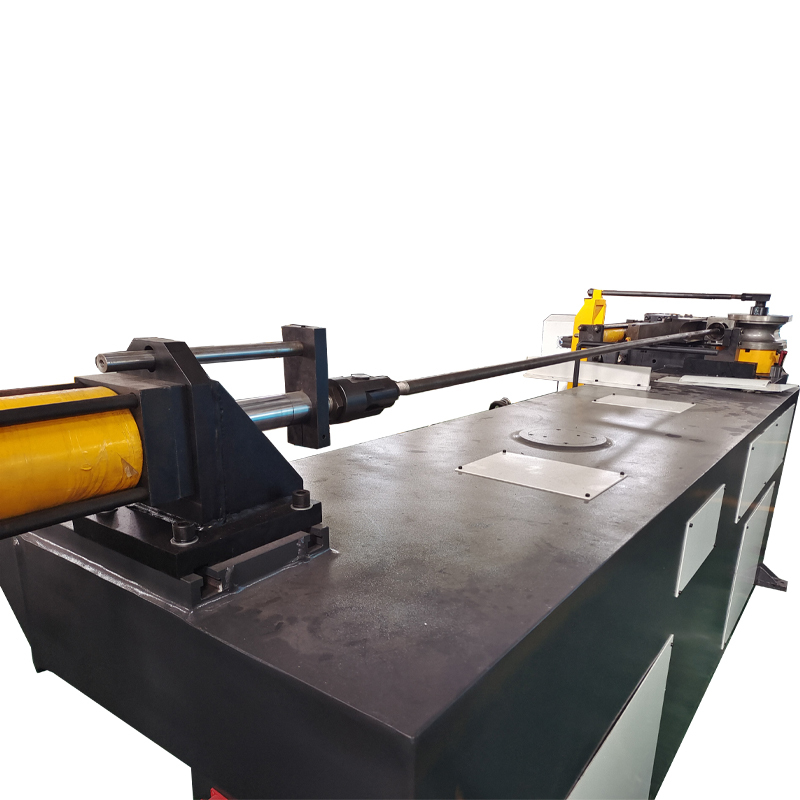

Durable hydraulic pipe bending machine
Description
产品描述
CTK-114NC
CTK-NC series single-head high-speed hydraulic pipe bending machine is developed by ourselves. The product is hydraulic drive, PLC control, touch screen monitor allows the use of man-machine dialogue type operation. The machine has easy operation, stable performance, high efficiency and so on. It is ideal machine for pipe processing industrial especially in the field of stainless steel pipe.
|
model: |
CTK-114NC Hydraulic tube bending machine |
|
Max diameter for carbon steel |
ф114*2.0 |
|
Max. effective mandrel length (mm) |
2500 |
|
Max. bending radius (mm) |
500 |
|
Max. bending degree (degree) |
185° |
|
Net weight (kg) |
3000 |
CTK-114NC Hydraulic tube bending machine
Max diameter for carbon steel: ф114*2.0
Max. effective mandrel length (mm): 2500
Max. bending radius (mm): 500
Max. bending degree (degree): 185°
Motor power(KW) : 11
Hydraulic system Hydraulic drive pressure: 14MPa
Fuel tank capacity: 210L
Net weight (kg): 3000
Dimension (LxWxH) (mm): 4000*900*1400
Chittak has many other pipe processing products:Automatic 3D Laser Pipe Cutting Machine, Handheld Laser Welding Machine, Saw Blade Pipe Cutting Machine, Pipe Bending Machine, Pipe Chamfering Machine,Metal Plate Cutting Machine and Accessories like saw blade etc.. Welcome your enquiry and hope build the business relationship with you !
