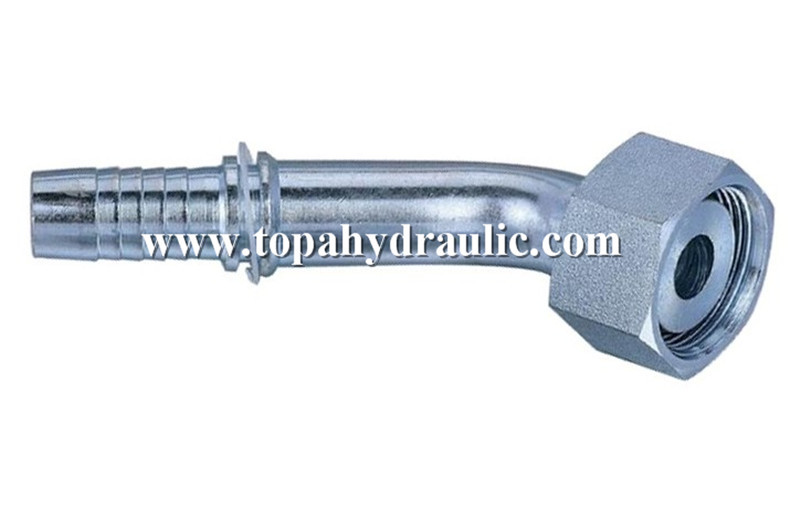

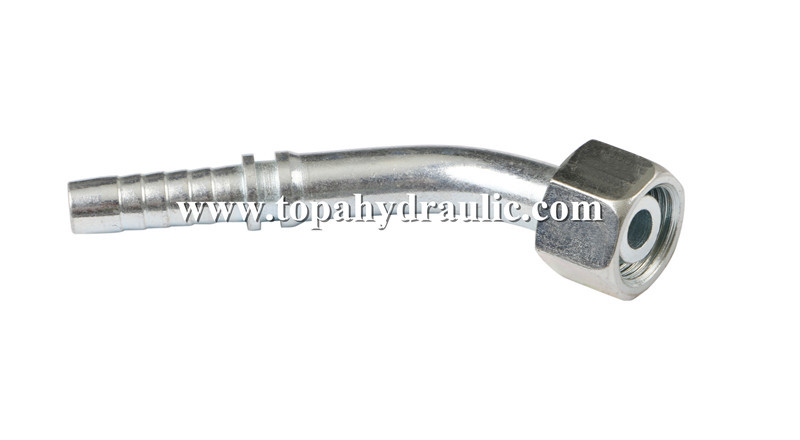

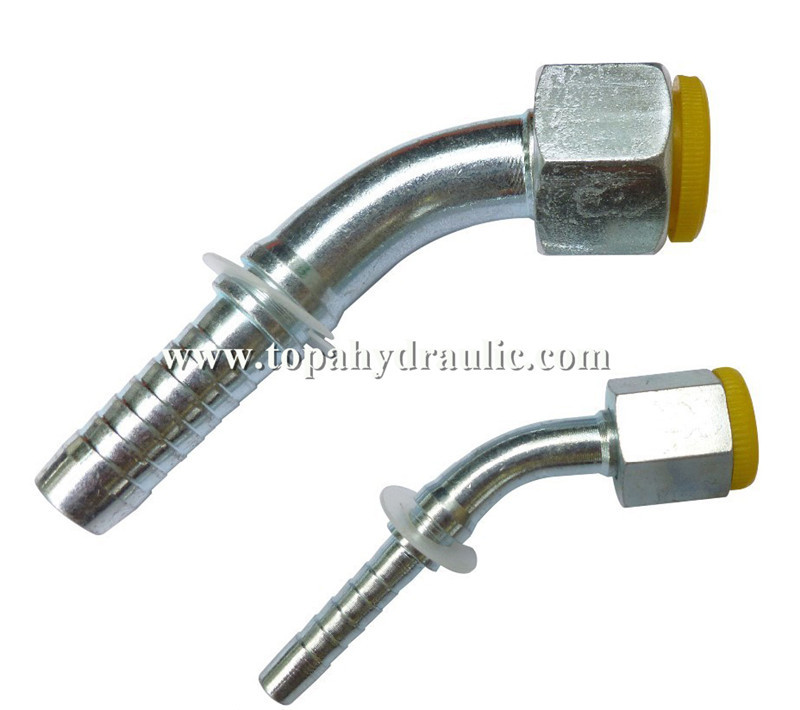

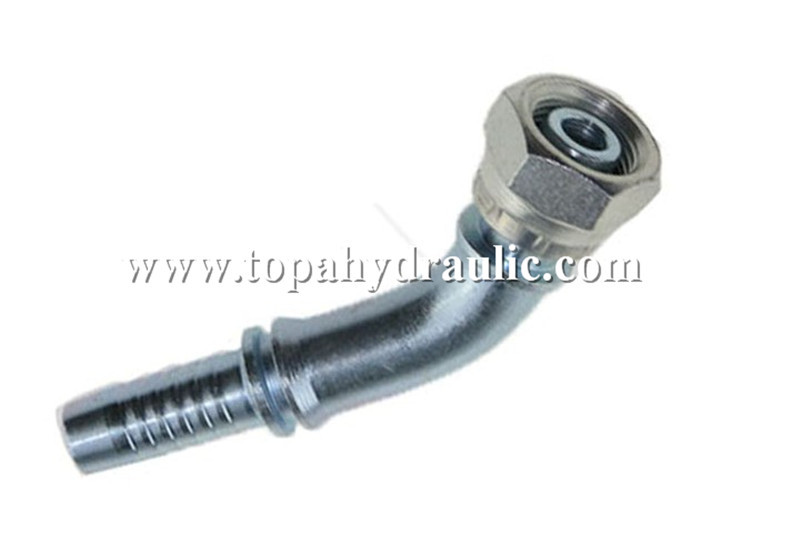

Metric fuel hydraulic multi air hose pipe connectors
Description
产品描述
公制燃油液压多气管接头
Hose Pipe Fittings allow designers to change flow direction, the elevation of lines or split flow. Crimping is the most common method for assembling hoses and
Hydraulic Pipe Fittings. Hose Pipe Connector are made of many different materials including stainless steel, brass, plastic, Monel and more.
产品描述
| E | HOSE BORE | DIMENSIONS | |||||
| PART NO. | THREAD E | DN | DASH | TUBE O.D. | C | S | H |
| 20441-14-04 | M14X1.5 | 6 | 04 | 8 | 2 | 19 | 27 |
| 20441-16-05 | M16X1.5 | 8 | 05 | 10 | 2 | 22 | 28.2 |
| 20441-18-06 | M18X1.5 | 10 | 06 | 12 | 2.5 | 24 | 29.2 |
| 20441-22-08 | M22X1.5 | 12 | 08 | 15 | 2.5 | 27 | 33.2 |
| 20441-26-10 | M26X1.5 | 16 | 10 | 18 | 2.5 | 32 | 35.9 |
| 20441-27-10 | M27X1.5 | 16 | 10 | 18 | 2.5 | 32 | 35.9 |
| 20441-30-12 | M30X2 | 20 | 12 | 22 | 4 | 36 | 41.7 |
| 20441-36-16 | M36X2 | 25 | 16 | 28 | 4 | 41 | 42.8 |

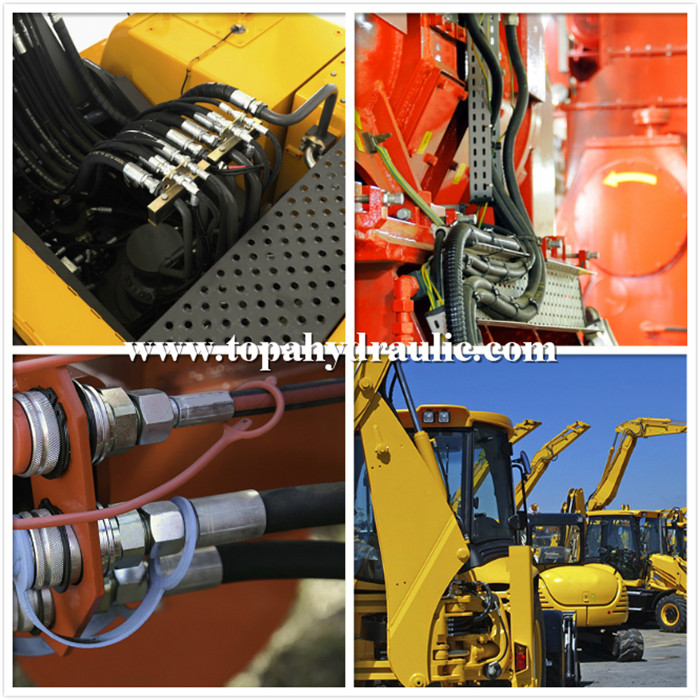

Hydraulic Hoses And Fittings is widely used in the hydraulic and fluid conveying ststem of machinery, oilfield, mine, building, transportation and other industries.

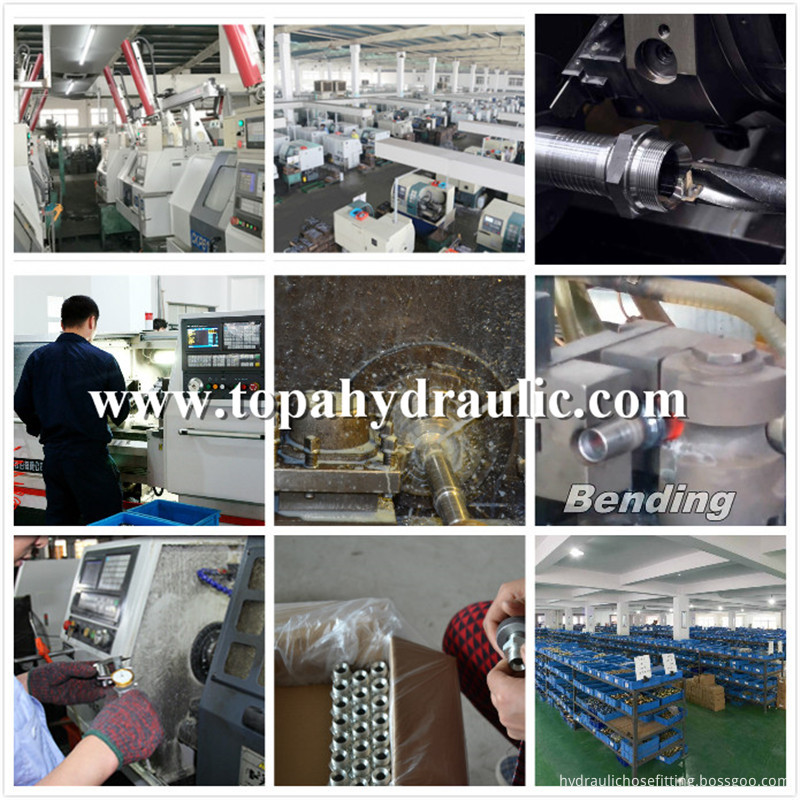

Company Information
Hydraulic Connectors connect conductors such as hoses, pipes and tubes in a hydraulic system. Hydraulic Coupling have a male and female component that join to form a connection. These Hose End Fittings help contain and direct the flow of hydraulic fluid in the conductor while preventing leaks and maintaining pressure. Different hoes end fittings allow designers to change flow direction, the elevation of lines or split flow. Crimping is the most common method for assembling hoses and industrial hose fittings. Gates hydraulic hose fittings are made of many different materials including stainless steel, brass, plastic, Monel and more. Not always, but often fittings match the material of the conductor used in a system.
Our high pressure fittings products include a wide range of standard : Eaton standard, Parker standard, American standard , custom, and jump size fittings from 1/8" to 2" and so on. Virtually any straight or shape style fitting whether tube fitting, pipe fitting, or swivel fitting adapter can be machined in NPT, JIC, ORFS, BSP, BSPT, BSPP, or S. A. E. thread forms and all are meet REACH and RoHS compliant in surface treatments.
