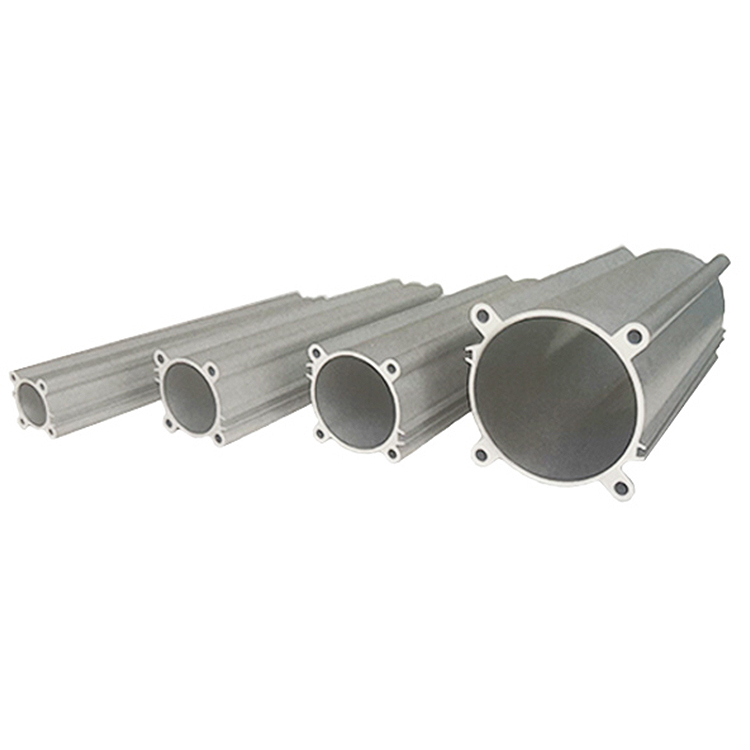

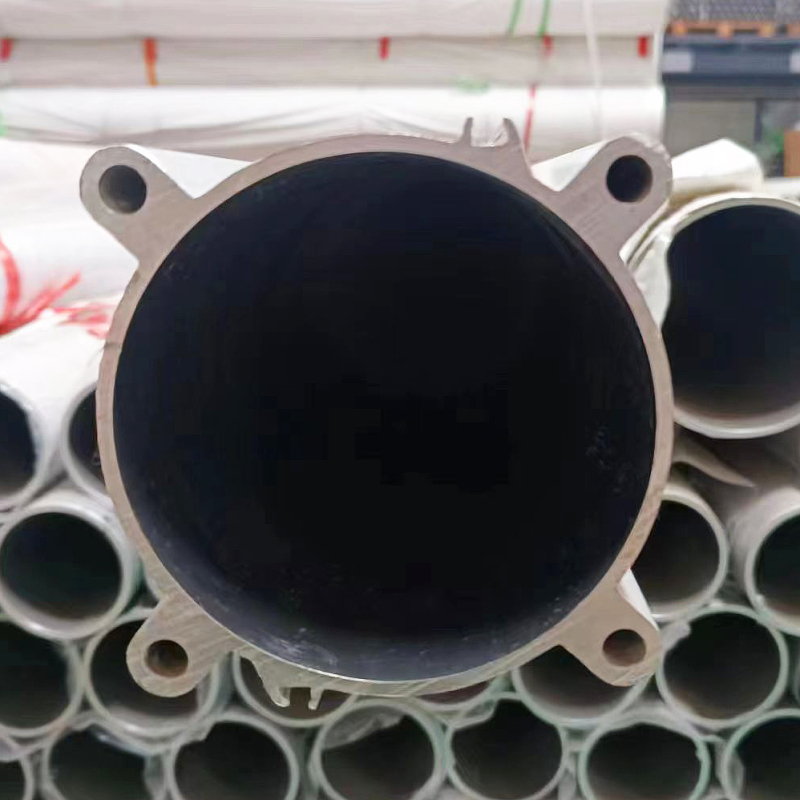

DNT two grooves Mickey shaped Aluminun Cylinder Barrel
Contact Now
Description
产品描述
The cylinder is a cylindrical metal component that guides the piston to perform linear reciprocating motion inside the cylinder.Air Cylinder Tube. It converts the pressure of compressed air into mechanical energy through pneumatic transmission, causing the mechanism to perform linear reciprocating motion or swing and rotate motion. The basic structure of a cylinder includes the cylinder barrel, end cap, piston, and piston rod.
The cylinder barrel is the main part of the cylinder, and its inner diameter determines the output force of the cylinder. The roughness of the inner surface of the cylinder should reach Ra0.8um to ensure smooth reciprocating sliding of the piston inside the cylinder. Pneumatic Cylinder Tube.The material of the cylinder can be high carbon steel pipe, high-strength aluminum alloy, or brass.
There are intake and exhaust ports on the end caps, and some end caps also have buffer mechanisms inside to reduce the impact force when the piston moves to the end. There are sealing rings and dust rings on the end cover of the rod side to prevent air leakage from the piston rod and external dust from entering the cylinder.
The piston is a pressure bearing component in the cylinder, and a piston sealing ring is installed to prevent the left and right chambers of the piston from blowing air into each other. Pneumatic Cylinder Barrel.There is also a wear-resistant ring on the piston to improve the directionality of the cylinder.
The piston rod is the most important load-bearing component in a cylinder, which converts the reciprocating motion of the piston into the motion of other mechanical components.
The working principle of a cylinder is to input compressed air through a rodless chamber, exhaust through a rod-shaped chamber, and use the pressure difference between the two chambers of the cylinder to push the piston to move, causing the piston rod to extend or retract. DNT Pneumatic Cylinder Barrel.If there is an alternating intake and exhaust between a rod chamber and a rodless chamber, the piston can perform reciprocating linear motion. This working principle makes cylinders widely used in various fields such as printing, semiconductor automation control, and robotics.
