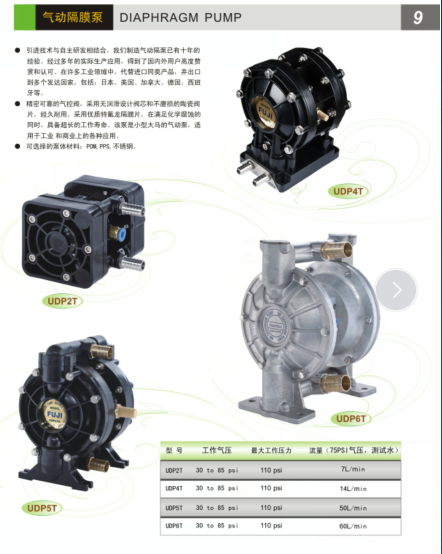

UDP5TS air operated pneumatic double diaphragm pump
Contact Now
Description
产品描述
DIAPHRAGM PUMP FUJI UDP5TS.The pump is a small high-horsepower pneumatic pump, suitable for industrial and commercial applications.
qualification
Name and model: Pneumatic double diaphragm pump, UDP5TS
Compatibility performance: Most solvents and chemicals.
Structure: reinforced steel pump body, 5-inch eflon diaphragm plate, stainless steel internal parts, hard sun aluminum reversing valve
Operating pressure: Compressed air: 20 to 85 psi (1.4 to 6 kg / cm2)
*** high working pressure: 100 psi (7 kg / cm2)
Output: 40 liters of liquid per minute at 80 psi (5.5 Kg / cm2)
Vacuum: 7 " (175mm) Hg at 75 psi (5.1 Kg / cm2)
Self-priming vacuum: 27 " (685mm) at 75 psi (5.1 Kg / cm2) H g
Gas input: quick connection to the 1/4"ÆO.D. (6.35 mm Æ O.D.) pipe
Exhaust: 1 / 8 "NPT Female to 1 / 4" Æ O.D. Muffler, maintenance-free
Liquid input: 1 / 2 " Æ O.D. connector
Liquid output: 1 / 2 " Æ O.D. connector
Input / output valve: eflon ball and stainless steel springs
Weight: 2.5kg
Name and model: Pneumatic double diaphragm pump, UDP5TS
Compatibility performance: Most solvents and chemicals.
Structure: reinforced steel pump body, 5-inch eflon diaphragm plate, stainless steel internal parts, hard sun aluminum reversing valve
Operating pressure: Compressed air: 20 to 85 psi (1.4 to 6 kg / cm2)
*** high working pressure: 100 psi (7 kg / cm2)
Output: 40 liters of liquid per minute at 80 psi (5.5 Kg / cm2)
Vacuum: 7 " (175mm) Hg at 75 psi (5.1 Kg / cm2)
Self-priming vacuum: 27 " (685mm) at 75 psi (5.1 Kg / cm2) H g
Gas input: quick connection to the 1/4"ÆO.D. (6.35 mm Æ O.D.) pipe
Exhaust: 1 / 8 "NPT Female to 1 / 4" Æ O.D. Muffler, maintenance-free
Liquid input: 1 / 2 " Æ O.D. connector
Liquid output: 1 / 2 " Æ O.D. connector
Input / output valve: eflon ball and stainless steel springs
Weight: 2.5kg
