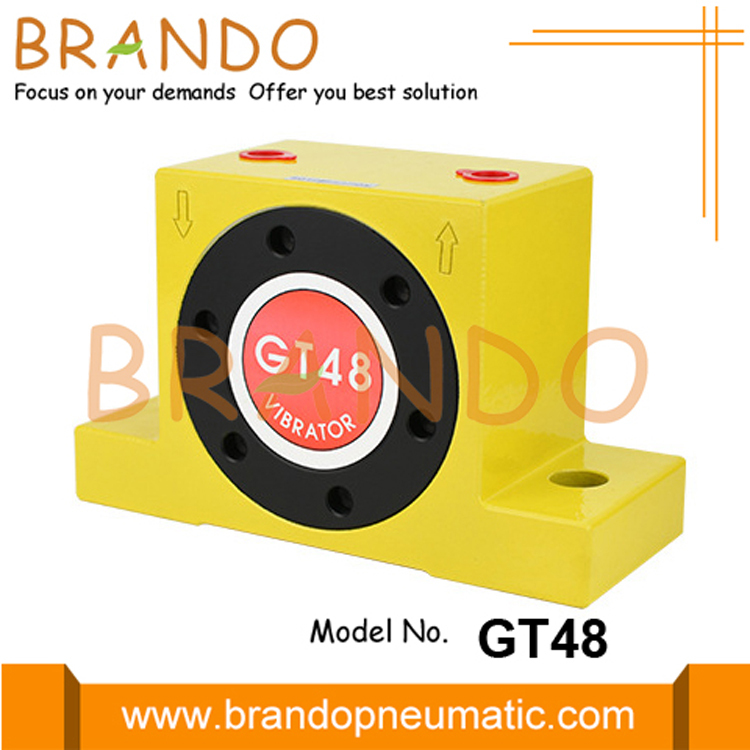

Findeva Type GT48 Pneumatic Vibrator For Hopper Bin
Description
产品描述
Findeva GT48 型料斗仓气动振动器
GT Series Pneumatic Golden Turbine Vibrators are high speed and eccentric working torques for strong vibration. Wide range for many applications.
Properties:
1. Lubrication-free
2. Low noise level
3. Strong vibration by means of high speed and eccentric working torques
4. Rated frequency 6000 to 46000 RPM
5. Centrifugal force 130 to 12000 N
6. Continuously variable
7. Applicable up to 120°C, HT version on request
8. Resistant to extreme environmental conditions
Field of application:
1. Emptying of bunkers
2. Screen filters
3. Vibrating tables
4. Preventing adhesion in pipelines and silos
5. Transporting of fine powders
6. Moving of bulk materials
Main Dimension of GT Series Pneumatic Vibrators:
|
Model
|
A
(mm)
|
Width
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
H
(Thread)
|
|
GT-4
GT-6
|
40
|
28
|
70
|
56
|
10.5
|
6
|
G1/8''
|
|
GT-8
GT-10
|
50
|
33
|
86
|
68
|
12
|
7
|
G1/8''
|
|
GT-13
GT-16
|
65
|
42
|
113
|
90
|
16
|
9
|
G1/4''
|
|
GT-20
GT-25
|
80
|
56
|
128
|
104
|
16
|
9
|
G1/4''
|
|
GT-30
GT-36
|
100
|
73
|
160
|
130
|
20
|
11
|
G3/8''
|
|
GT-40
GT-48
|
120
|
86
|
194
|
152
|
24
|
17
|
G3/8''
|
Technical Data of GT Series Pneumatic Vibrators:
|
Model
|
Vibrations
(x1000 RPM)
|
Centrifugal Force
(N)
|
Air Consumption
(l/min)
|
||||||
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
|
|
GT-4
|
14.0
|
15.0
|
15.0
|
135
|
180
|
200
|
33
|
58
|
83
|
|
GT-6
|
11.5
|
12.0
|
12.5
|
130
|
175
|
210
|
|||
|
GT-8
|
36.0
|
42.0
|
46.5
|
990
|
2060
|
2910
|
46
|
80
|
112
|
|
GT-10
|
27.5
|
35.0
|
37.5
|
840
|
1390
|
2400
|
|||
|
GT-10-S
|
17.0
|
23.0
|
25.0
|
650
|
1350
|
1950
|
|||
|
GT-13
|
26.0
|
30.0
|
33.0
|
1400
|
2440
|
3730
|
120
|
200
|
290
|
|
GT-16
|
17.0
|
21.5
|
24.0
|
1220
|
2090
|
3160
|
|||
|
GT-16-S
|
11.5
|
15.5
|
17.0
|
1100
|
1900
|
2700
|
|||
|
GT-20
|
17.0
|
20.0
|
23.0
|
2170
|
4040
|
5520
|
185
|
325
|
455
|
|
GT-25
|
12.0
|
15.5
|
17.0
|
2120
|
3510
|
5070
|
|||
|
GT-25-S
|
8.5
|
11.0
|
13.0
|
2250
|
3600
|
4900
|
|||
|
GT-30
|
13.0
|
14.0
|
16.0
|
3380
|
5430
|
7540
|
330
|
530
|
745
|
|
GT-36
|
8.0
|
10.0
|
13.0
|
3290
|
5360
|
7190
|
|||
|
GT-36-S
|
6.1
|
7.2
|
8.3
|
4100
|
6200
|
7500
|
|||
|
GT-40
|
7.7
|
8.8
|
9.5
|
4300
|
7300
|
9800
|
425
|
700
|
970
|
|
GT-48
|
6.0
|
7.5
|
9.7
|
4900
|
7700
|
10500
|
|||
|
GT-48-S
|
-
|
5.6
|
6.3
|
-
|
7500
|
12000
|
|||
Construction of GT Series Pneumatic Vibrators:
