CNC High Precision Linear Hard Chromed Shafts
Description
产品描述

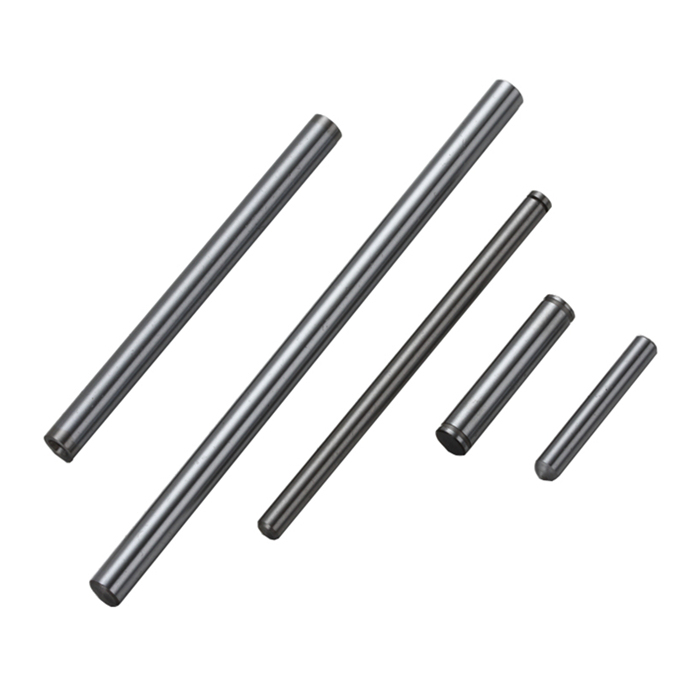

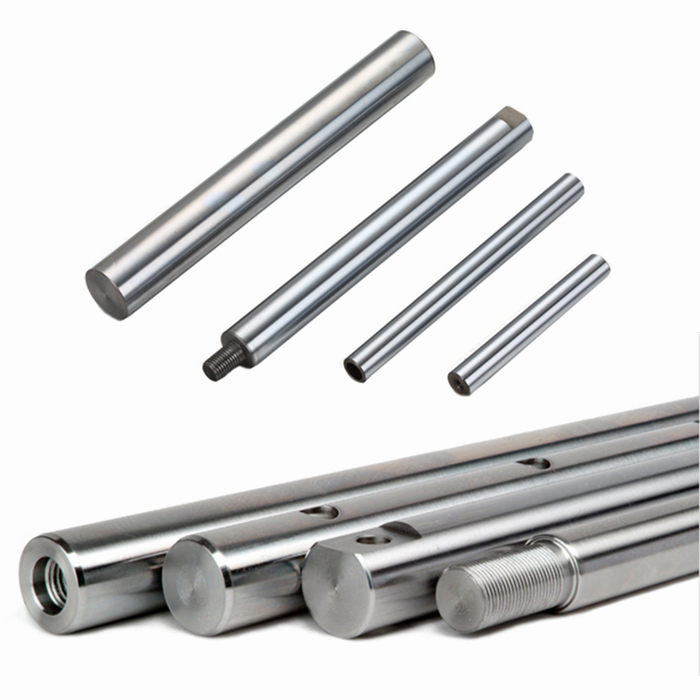

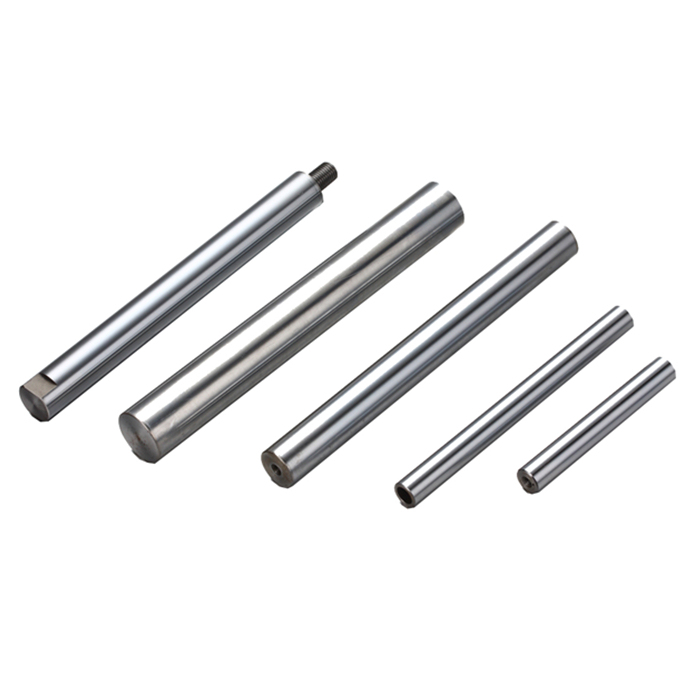

ZNZ Hard Chromed Shaft

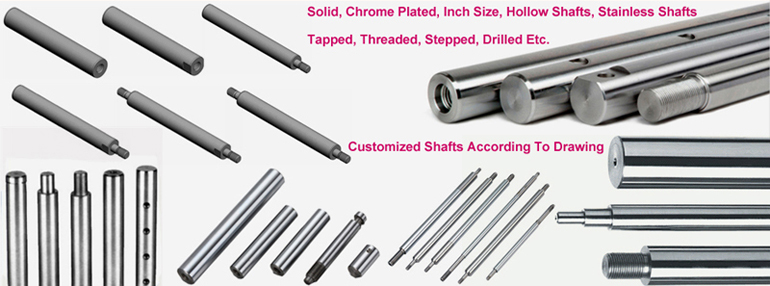

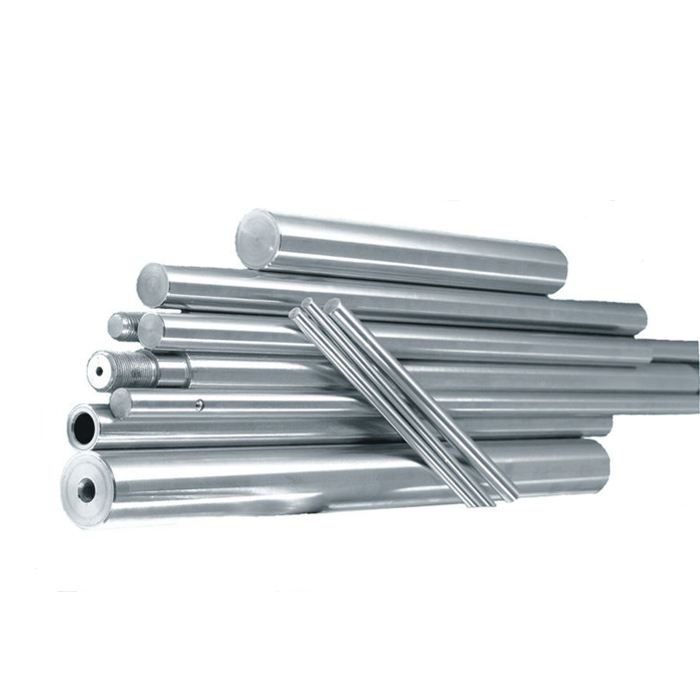

Solid shafts, Chrome plated shafts, Hollow shafts, Stainless Steel Shaft
Dimensions:3mm,4mm,5mm,6mm,8mm,12mm,15mm,16mm,19mm,20mm,25mm,30mm,40mm,35mm,50mm,60mm,80mm
Also can produce other dimensions as you need.

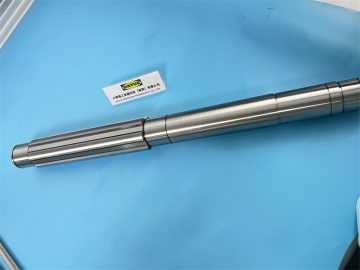

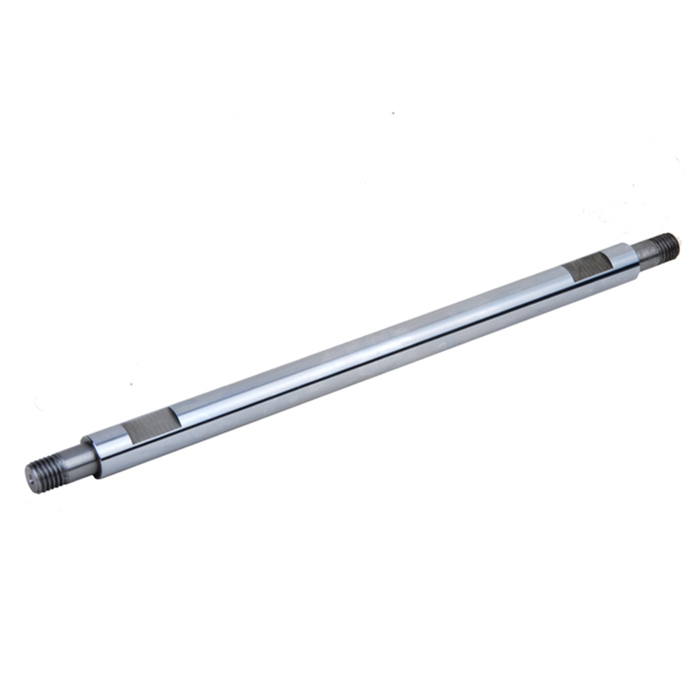

Customized shafts according to drawing
Further dimensions, materials and tolerances upon request
Max: 6000mm
ZNZ Inch Size Linear Shaft

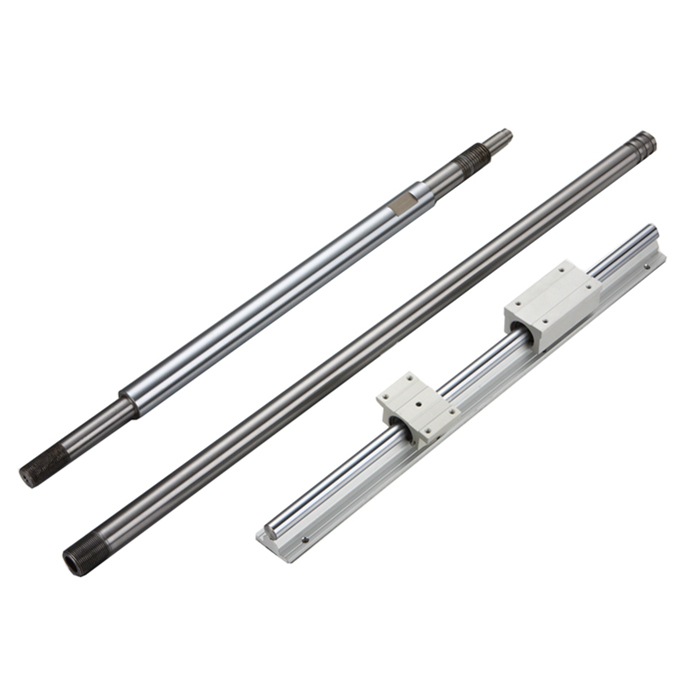

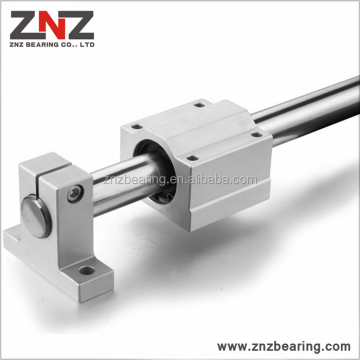

Used with ZNZ LMB series linear bearing
Also can machining as you need
Dimensions: 6.35mm.9.525mm.12.7mm,15.875mm,19.05mm,25.4mm,31.75mm,38.1mm,50.8mm
Pupular used in US OR UK market.
High precision
Chrome plated(Prevent of rust)
And Hardness: HRC58-62
Original: Ningbo China
|

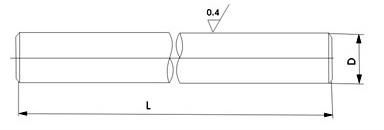

MODEL NO. |
OUTER DIAMETER |
DIAMETER TOLERANCE |
LENGTH |
DEPTH OF EFFECTIVE HARDENED LAYER |
WEIGHT(kg/m) |
|
|
g6 |
h6 |
|||||
|
SFC3 |
3 |
-0.004 |
0 |
100-2000 |
>0.8 |
0.18 |
|
SFC4 |
4 |
0.18 |
||||
|
SFC5 |
5 |
0.19 |
||||
|
SFC6 |
6 |
0.22 |
||||
|
SFC8 |
8 |
-0.005 |
0 |
100-2000 |
0.40 |
|
|
SFC10 |
10 |
-0.005 |
0 |
100-2000 |
>1.0 |
0.62 |
|
SFC12 |
12 |
-0.006 |
0 |
100-3000 |
0.89 |
|
|
SFC13 |
13 |
100-3500 |
1.04 |
|||
|
SFC16 |
16 |
100-4000 |
>1.5 |
1.58 |
||
|
SFC20 |
20 |
-0.007 |
0 |
100-6000 |
2.47 |
|
|
SFC25 |
25 |
3.85 |
||||
|
SFC30 |
30 |
>2.0 |
5.55 |
|||
|
SFC35 |
35 |
-0.009 |
0 |
7.55 |
||
|
SFC40 |
40 |
>2.5 |
9.87 |
|||
|
SFC50 |
50 |
15.4 |
||||
|
SFC60 |
60 |
-0.010 |
22.2 |
|||
|
SFC80 |
80 |
39.5 |
||||
