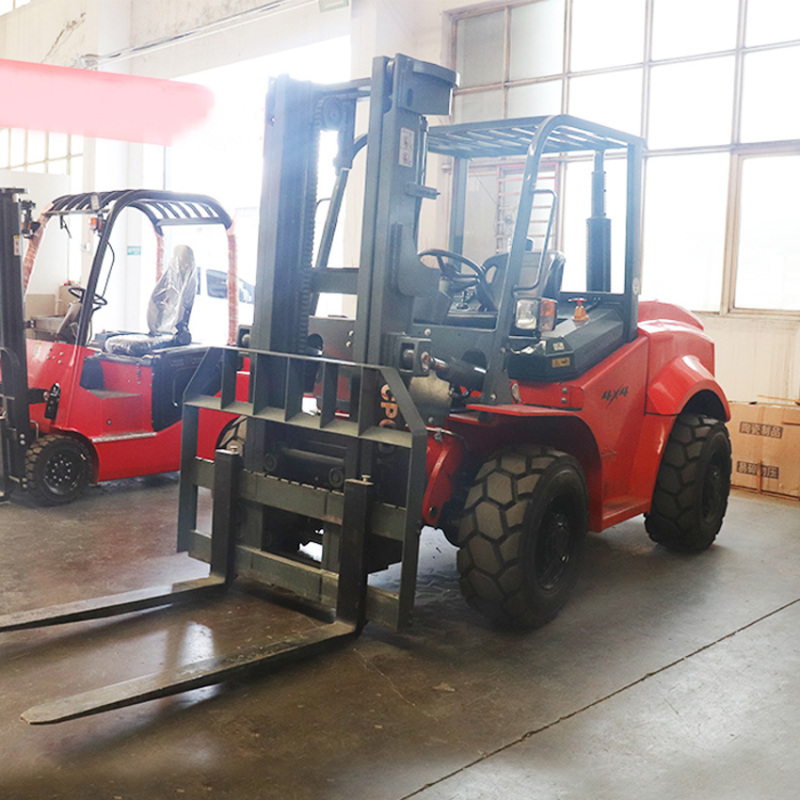

Used and New Forklifts for Sale: 3 Ton, 3.5 Ton, 5 Ton, 7 Ton Capacities with 4x4, 2WD, 4WD Options for Farm, Outdoor, Off-Road,
Contact Now
Description
产品描述
CE Euro5 EPA Forklift Manufacturer
Lifts 0.5ton to 5ton
产品描述
|
型
|
T15A
|
T35A
|
T35A Short
|
|
发动机
|
Weifang490，40kw
|
Xichai/Yunnei493VP，36.8kw
|
Xichai/Yunnei493VP，36.8kw
|
|
Drive mode
|
4wd
|
4wd
|
4wd
|
|
变速器
|
265 torque converter
|
265 high low speed torque converter
|
265 high low speed torque converter
|
|
Axle
|
Isuzu
|
Wheel reduce
|
Wheel reduce
|
|
Tire
|
825-16
|
23.5/70-16
|
23.5/70-16
|
|
Wheelbase
|
1800mm
|
2200mm
|
1980mm
|
|
Rated lifting weight
|
1500kg
|
3500kg
|
3500kg
|
|
Rated lifting height
|
3000mm
|
3000-6000mm
|
3000-6000mm
|
|
Load center distance
|
500mm
|
600mm
|
600mm
|
|
Min. turning radius
|
2800mm
|
3500mm
|
3200mm
|
|
Max. climbing angle
|
≤35°
|
≤38°
|
≤38°
|
|
Min. ground clearance
|
250mm
|
350mm
|
350mm
|
|
Tilt of the mast,front/rear
|
10°/6°
|
10°/6°
|
10°/6°
|
|
Speed
|
30km/h
|
38km/h
|
38km/h
|
|
Max. hook traction
|
15Kn
|
25Kn
|
25Kn
|
|
Mast steel width
|
120mm
|
160mm
|
160mm
|
|
叉子长度
|
1220mm
|
1220mm
|
1220mm
|
|
Machine weight
|
2800kg
|
4200kg
|
4200kg
|
|
Machine size
|
3200*1600*2300mm
|
4200*1850*2700mm
|
3800*1850*2300mm
|
|
型
|
T35A Middle Articulated
|

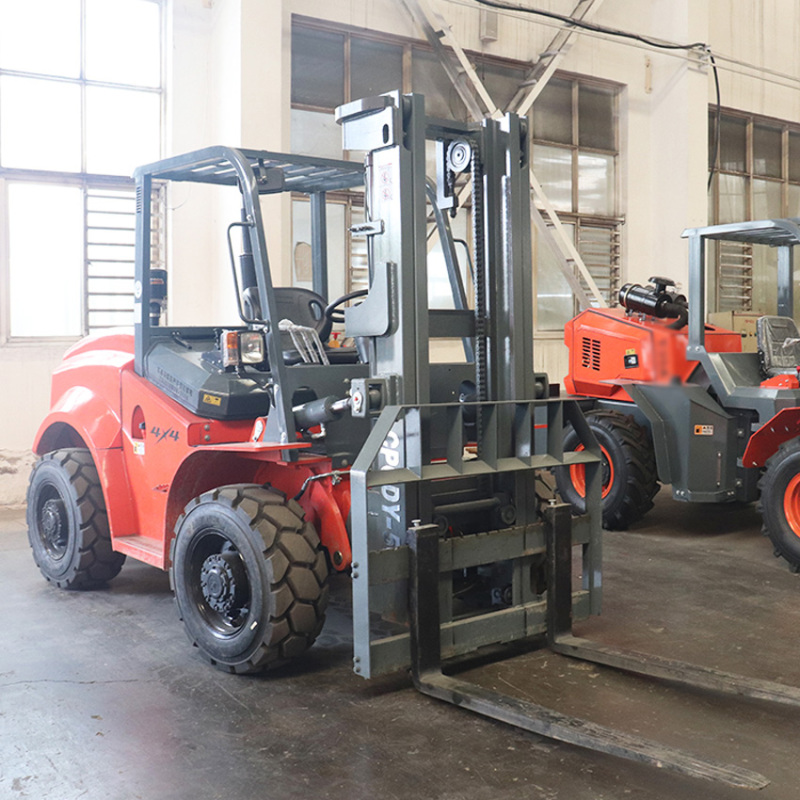

CPCDY-35
|
T35A Rear Articulated
|
|
发动机
|
Xichai/Yunnei493VP，36.8kw
|
Yunnei/Quanchai495，55kw
|
Xichai/Yunnei493VP，36.8kw
|
|
Drive mode
|
4wd
|
4wd
|
4wd
|
|
变速器
|
265 high low speed torque converter
|
280 high low speed torque converter
|
265 high low speed torque converter
|
|
Axle
|
Wheel reduce
|
Wheel reduce
|
Wheel reduce
|
|
Tire
|
23.5/70-16
|
12-16.5
|
23.5/70-16
|
|
Wheelbase
|
1980mm
|
1697mm
|
2300mm
|
|
Rated lifting weight
|
3500kg
|
3500kg
|
3500kg
|
|
Rated lifting height
|
3000-6000mm
|
3000-6000mm
|
3000-6000mm
|
|
Load center distance
|
600mm
|
600mm
|
600mm
|
|
Min. turning radius
|
3200mm
|
2500mm
|
3200mm
|
|
Max. climbing angle
|
≤38°
|
≤38°
|
≤38°
|
|
Min. ground clearance
|
350mm
|
320mm
|
350mm
|
|
Tilt of the mast,front/rear
|
10°/6°
|
10°/8°
|
10°/8°
|
|
Speed
|
38km/h
|
35km/h
|
38km/h
|
|
Max. hook traction
|
25Kn
|
30Kn
|
25Kn
|
|
Mast steel width
|
160mm
|
160mm
|
160mm
|
|
叉子长度
|
1220mm
|
1220mm
|
1220mm
|
|
Machine weight
|
4200kg
|
5500kg
|
4500kg
|
|
Machine size
|
3600*1850*2150mm
|
3200*1500*2300mm
|
3700*1850*2350mm
|
|

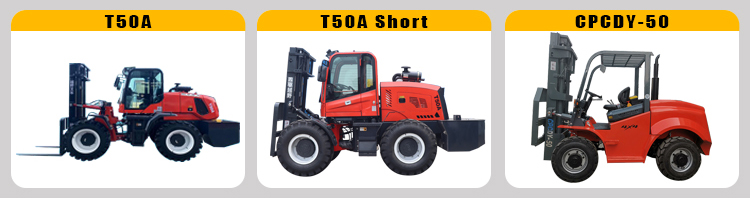

型
|

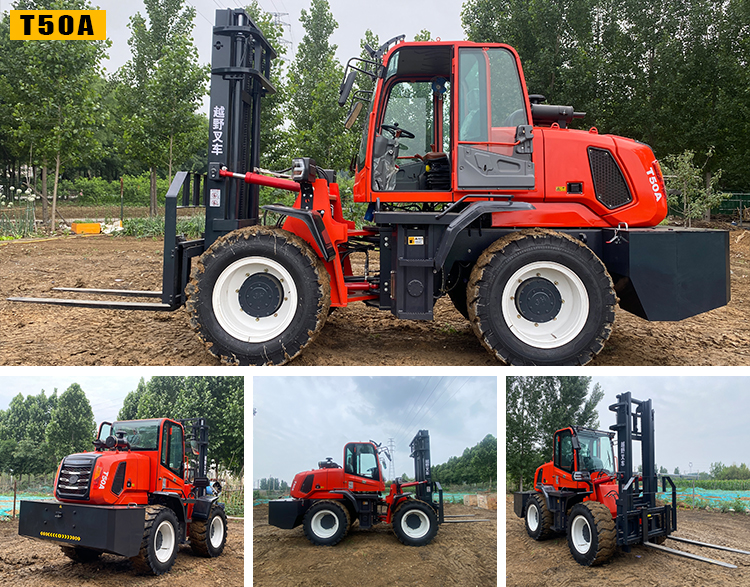

T50A
|
T50A Short
|
CPCDY-50
|
|
发动机
|
Xichai/Yunnei4102，80-83kw
|
Huajie 4102
|
Yunnei4102，80kw
|
|
Drive mode
|
4wd
|
4wd
|
4wd
|
|
变速器
|
265 high low speed torque converter
|
265 high low speed torque converter
|
280 high low speed torque converter
|
|
Axle
|
Wheel reduce
|
Wheel reduce
|
Wheel reduce
|
|
Tire
|
16/70-24
|
16/70-20
|
12-16.5
|
|
Wheelbase
|
2400mm
|
19800mm
|
1890mm
|
|
Rated lifting weight
|
5000 公斤
|
5000 公斤
|
5000 公斤
|
|
Rated lifting height
|
4000-6000 毫米
|
3000-6000mm
|
3000-6000mm
|
|
Load center distance
|
600mm
|
600mm
|
600mm
|
|
Min. turning radius
|
3800毫米
|
4200 毫米
|
3200mm
|
|
Max. climbing angle
|
≤38°
|
≤38°
|
≤38°
|
|
Min. ground clearance
|
380 毫米
|
380 毫米
|
350mm
|
|
Tilt of the mast,front/rear
|
10°/6°
|
10°/8°
|
10°/8°
|
|
Speed
|
45 公里/小时
|
38km/h
|
35km/h
|
|
Max. hook traction
|
35 卡
|
35 卡
|
30Kn
|
|
Mast steel width
|
180 毫米
|
175 毫米
|
180 毫米
|
|
叉子长度
|
1520毫米
|
1220mm
|
1520毫米
|
|
Machine weight
|
5500kg
|
5000 公斤
|
6500 公斤
|
|
Machine size
|
4500 * 1900 * 2850毫米
|
4200 * 1920 * 2500毫米
|
3500 * 1892 * 2300毫米
|
