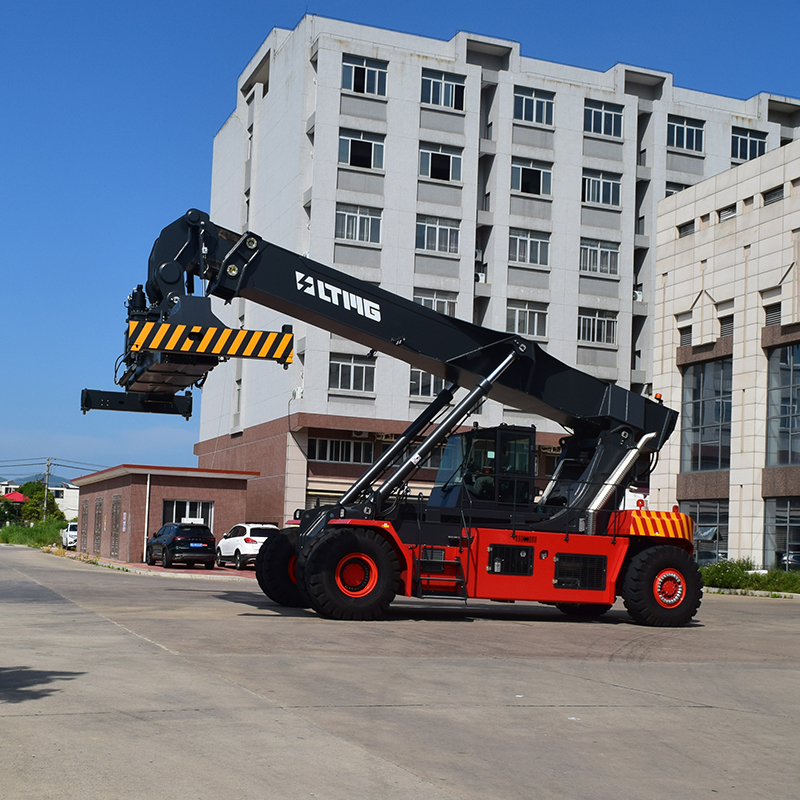

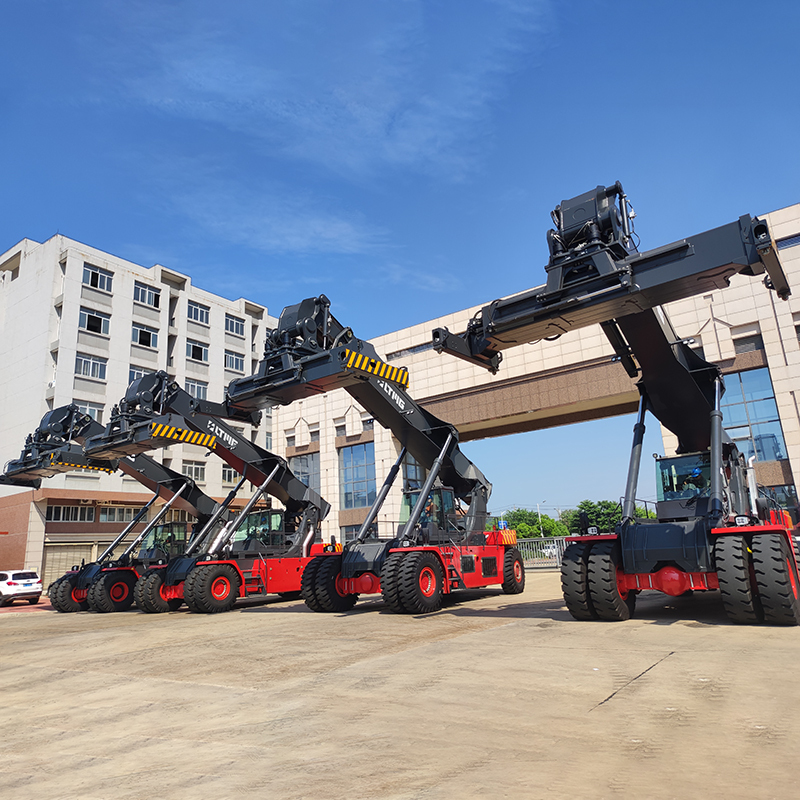

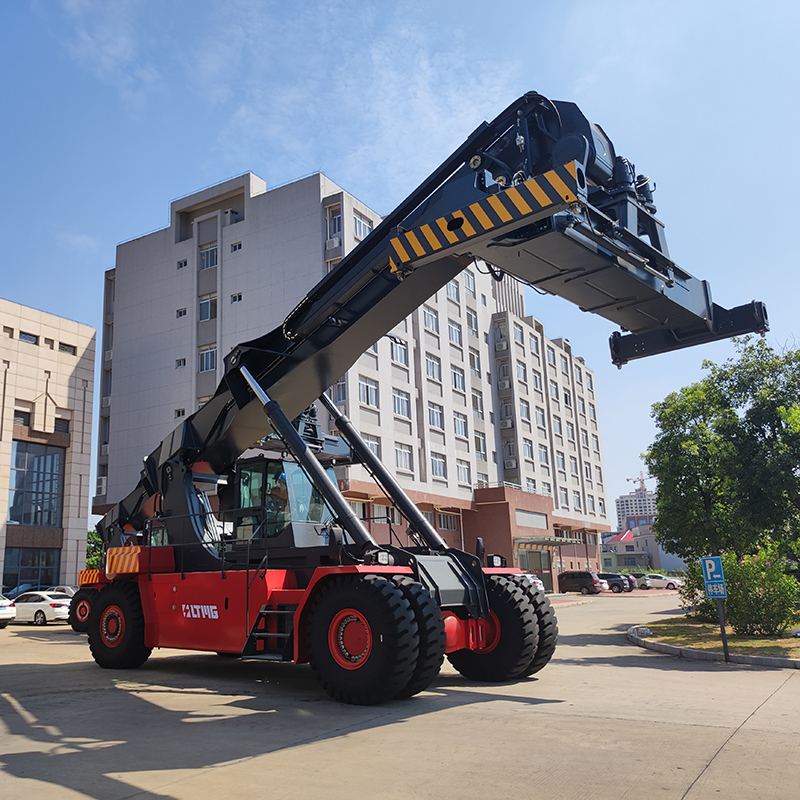

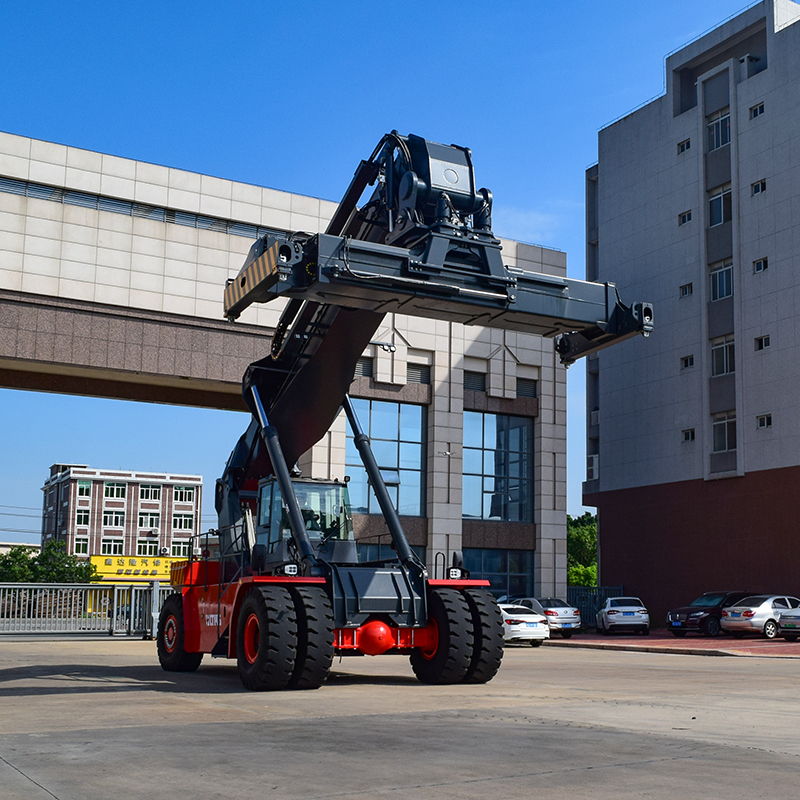

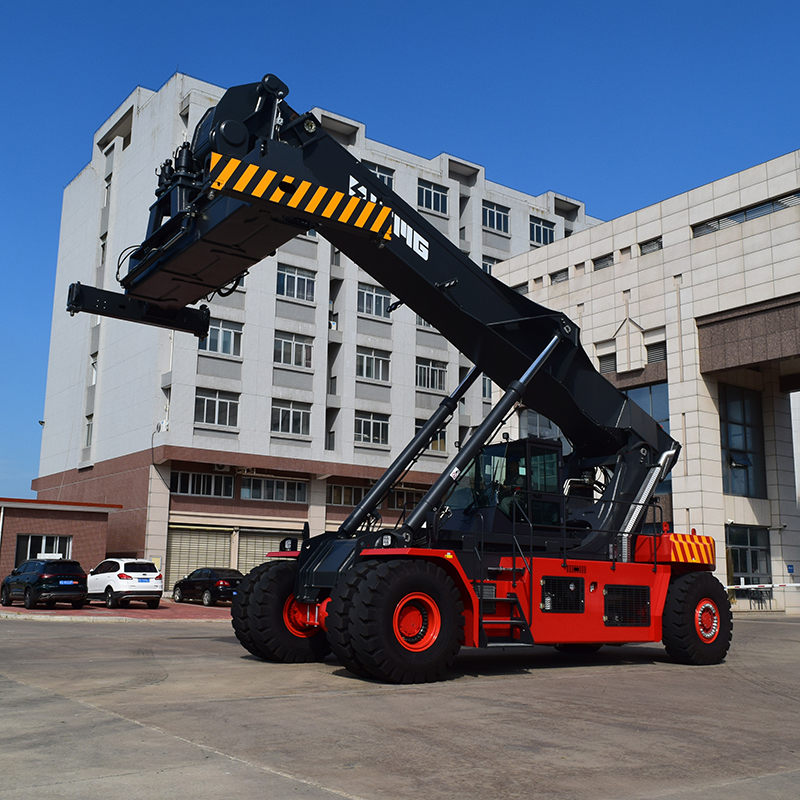

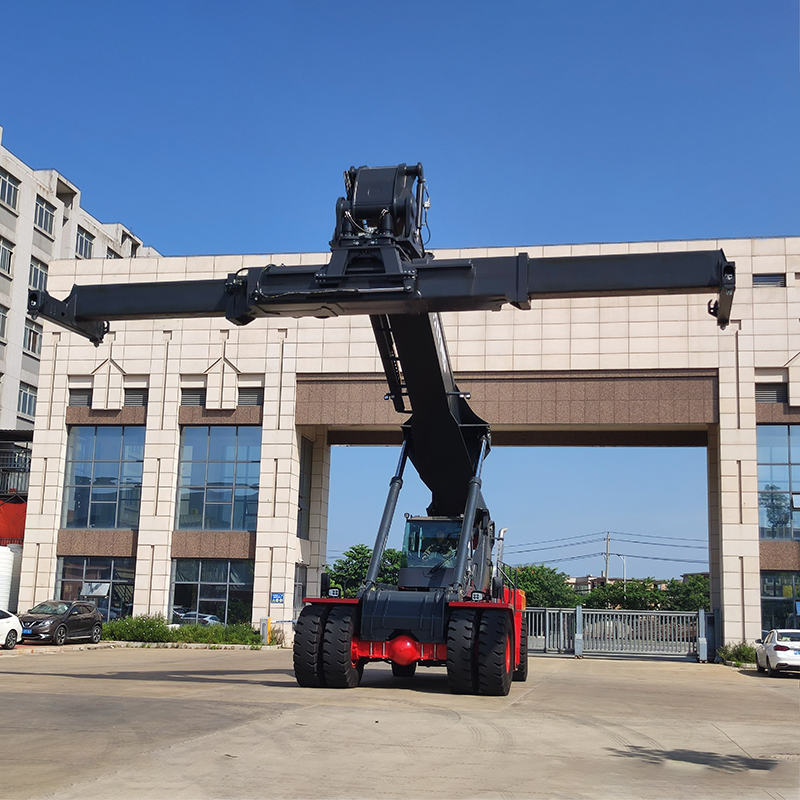

Hot Sale 45 Ton Diesel Container Handler Reach Stacker Forklift
Contact Now
Description
产品描述
优势
|
CHARACHTERISTICS
|
|
|
TRANSMISSION
|
|
|||
|
Manufacturer
|
|
LTMG
|
Transmission Manufacturer
|
ZF/5WG261 AUTO
|
|||
|
Model designation
|
|
CRS450/5
|
Transmission type
|
Auto-shift / Interlock
|
|||
|
Power unit: battery, diesel, LP gas, mains power
|
|
Diesel
|
Clutch Type
|
Torque Converter
|
|||
|
Operation: manual, pedestrian, stand-on, seated, order picker
|
|
Rider seated
|
Gear number
|
5 F / 3 R
|
|||
|
Load capacity(L1, L2, L3)
|
Q (kg)
|
45000 / 31000 / 16000
|
TYRES
|
|
|||
|
Load centre, First row(L1)
|
c (mm)
|
1800
|
Drive wheels
|
18.00-25 40PR
|
|||
|
Load centre, Second row(L2)
|
c (mm)
|
3860
|
Steering wheels
|
18.00-25 40PR
|
|||
|
Load centre, Third row(L3)
|
c (mm)
|
6400
|
Type
|
Pneumatic
|
|||
|
Axle centre to spreader center(L1-1/2 high)
|
x (mm)
|
2800 / 2600
|
Pressure
|
10 bar
|
|||
|
Wheelbase
|
y (mm)
|
6400
|
Quantity, Front/Rear
|
4 / 2
|
|||
|
DIMENSIONS
|
|
|
TANKS CAPACITY
|
|
|||
|
Boom lift angle, raised/lowered
|
α/β( / °)
|
61/ 0
|
Hydraulic oil tank
|
800 liter
|
|||
|
Height boom lowered
|
h1 (mm)
|
4945
|
Fuel tank
|
500 liter
|
|||
|
Lift height(L1, L2, L3)
|
h3 (mm)
|
15900 / 14100 /11350
|
DRIVE AXLE
|
|
|||
|
Height, boom extended
|
h4 (mm)
|
19000
|
Driver axle manufacturer
|
KESSLER/Germany
|
|||
|
Height of cabin
|
h6 (mm)
|
3900
|
Type
|
D102PL341
|
|||
|
Height, operators seat
|
h7 (mm)
|
2840
|
|
|
|||
|
Towing coupling height
|
h10 (mm)
|
600
|
|
|
|||
|
Twistlock height lowered
|
h13 (mm)
|
1495
|
STEER AXLE
|
|
|||
|
Overall length with spreader
|
l1 (mm)
|
11618
|
Steering axle manufacturer
|
KESSLER/Germany
|
|||
|
Overall length
|
l2 (mm)
|
8410
|
Type
|
L102
|
|||
|
Overall width
|
b1/b2 (mm)
|
4180 / 3400
|
Steering
|
Double action cylinder
|
|||
|
Width of soreader 20'/40’
|
b3 (mm)
|
6050 /12150
|
BRAKE SYSTEM
|
|
|||
|
Ground clearance minimum
|
m1 (mm)
|
345
|
Service brake: Hydraulic wet-disc
|
|
|||
|
Ground clearance, centre of wheelbase
|
m2 (mm)
|
300
|
Parking brake: Electric released disc brake, enabled when power off
|
|
|||
|
Stacking aisle 20' container
|
Ast (mm)
|
10225
|
HYDRAULIC SYSTEM
|
|
|||
|
Stacking aisle 40' container
|
Ast (mm)
|
13050
|
Twin piston pump
|
|
|||
|
Turning radius
|
Wa (mm)
|
8605
|
Maximum pressure: 310 bar
|
|
|||
|
Minimum pivoting point distance
|
b13 (mm)
|
3400
|
Load sensing system
|
|
|||
|
Wheelspan, Front wheels
|
b10 (mm)
|
3030
|
Hydraulic cooler with electric motor
|
|
|||
|
Wheelspan, Rear wheels
|
b11 (mm)
|
2786
|
separate brake oil tank
|
|
|||
•The cabin adopts the latest ergonomic design,Simple & elegant, Spacious & comfortable. Equipped with large-color display for easy reading the real status of the truck. •Firm cabin design to ensure the safety and comfort of the operator. Good tightness, the doors & windows can be opened & closed easily and firmly. Equipped with multi-function joystick, All the control are at your fingertips. •The luxury seat can be adjusted according to the driver's height and weight to ensure the most comfortable driving and high efficiency. he safety glass to ensure the excellent all-round visibility. Equipped with Air-Conditioner with heating function to suit working in all climates.
