2017 Mini Battery Forklift Trucks
Description
产品描述
2017 Mini Battery Forklift Trucks
Forklift also named modern forklift, forklift truck, all terrain forklift, electric forklift. Often divided into three categories: internal combustion diesel forklift, battery forklift and warehouse forklift.
Forklift tuck is the most widely used warehouse handling machinery, which is mainly used for the loading and unloading of goods in the warehouse, but also for the stacking and handling of trucks and railway flatbed trucks. It can reduce heavy manual labor of loading and unloading workers, improve efficiency, shorten vehicle stay time and reduce loading and unloading costs.
electric forklift 3 tons forklift widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transport of highly efficient equipment.
Power System High-power AC motor with reliable performance, brushless, maintenance-free, powerful vehicle power, comprehensive driving, acceleration and climbing performance, and regenerative braking technology is more energy efficient.
Hydraulic system AC pump motor, lifting ability, high efficiency. Low noise gear pump. Hydraulic power steering, steering more flexible.
Transmission ratio transmission, transmission more stable. Longitudinal gearbox structure, transmission efficiency.
Electric system imports SEVCON exchange controller, drive ability low failure rate. With a variety of safety features to ensure the safety of the driver's operation. CAN bus technology, signal transmission more stable.
Cab and console overhead guard using ergonomic design theory to ensure the driver's safety, operational comfort. A new wide-field gantry, effectively increasing the driver's field of vision. Multi-function dashboard, beautiful appearance, can display power, direction and other information. Optional gantry type wide field of vision, two free, three free.

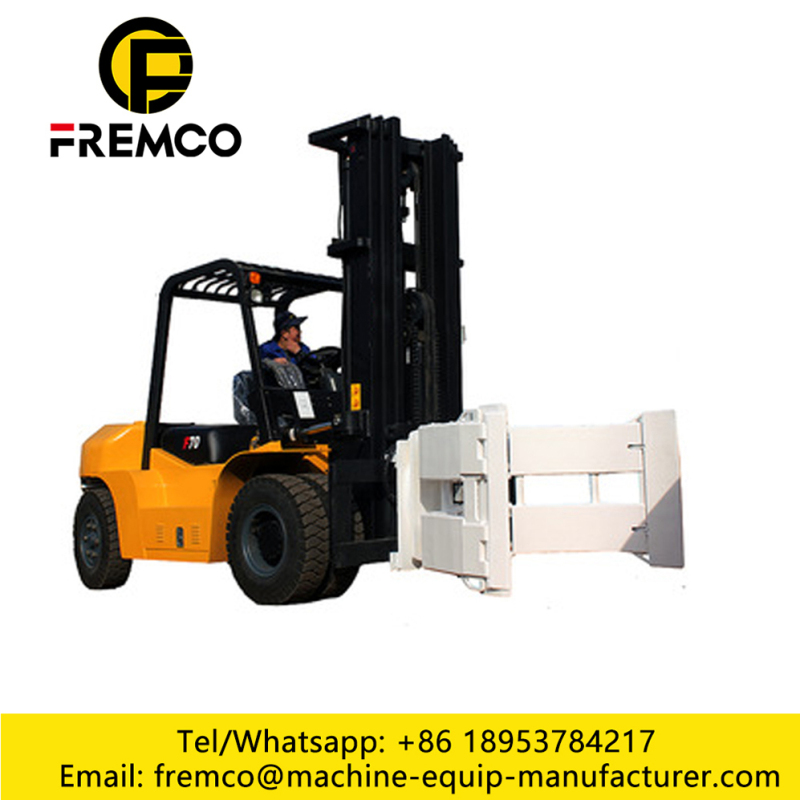

Work with optional sideshift, pitch fork, paper roll folder, soft folder and so on.
Fuel consumption, green performance introduced traction battery as the driving force, exchange efficient motor drive. Zero emissions, pollution-free, more environmentally friendly. Power consumption, low operating costs.
Maintenance of key parts of the installation of detection sensors, controller fault detection. Failure of the instrument can display the corresponding fault code, easy maintenance.
Technical Parameter
|
型 |
F30S |
|
Load Capacity |
3000 kg |
|
Load Center |
500 mm |
|
Power type |
电池 |
|
Lift Size |
3000 mm |
|
Free lift height |
80 mm |
|
Fork Size |
1070x122x45 mm |
|
Mast Tilt angel |
6/12 deg |
|
Fort overhang |
495 mm |
|
Over size length to face of fork |
3545 mm |
|
Over size overall width |
1260mm |
|
Overall height fork lowered |
2065 mm |
|
Overall height fork raised |
4272 mm |
|
Overhead guard height |
2135 mm |
|
Mini turn radius |
2135 mm |
|
Mini right angle width |
3890 mm |
|
Travel speed(No load/full load) |
17/15 km/h |
|
No load Lift speed |
260 mm/sec |
|
Max slope |
13 % |
|
Self weight |
4850 kg |
|
Front Tires |
28x9-15-14pr |
|
Rear Tires |
18x7-8-14pr |
|
Front Tread |
1000 mm |
|
Rear Tread |
980 mm |
|
Wheel base |
1585 mm |
|
Mini ground clearance(mast) |
105/120 mm |
|
Engine frame |
140/140 mm |
|
Engine model |
YDQ11.75-4 |
|
Rated power |
11.75 KW |
|
Rated current |
173 A |
|
Rated voltage |
AC55 V |
|
Control system |
ZAPI |

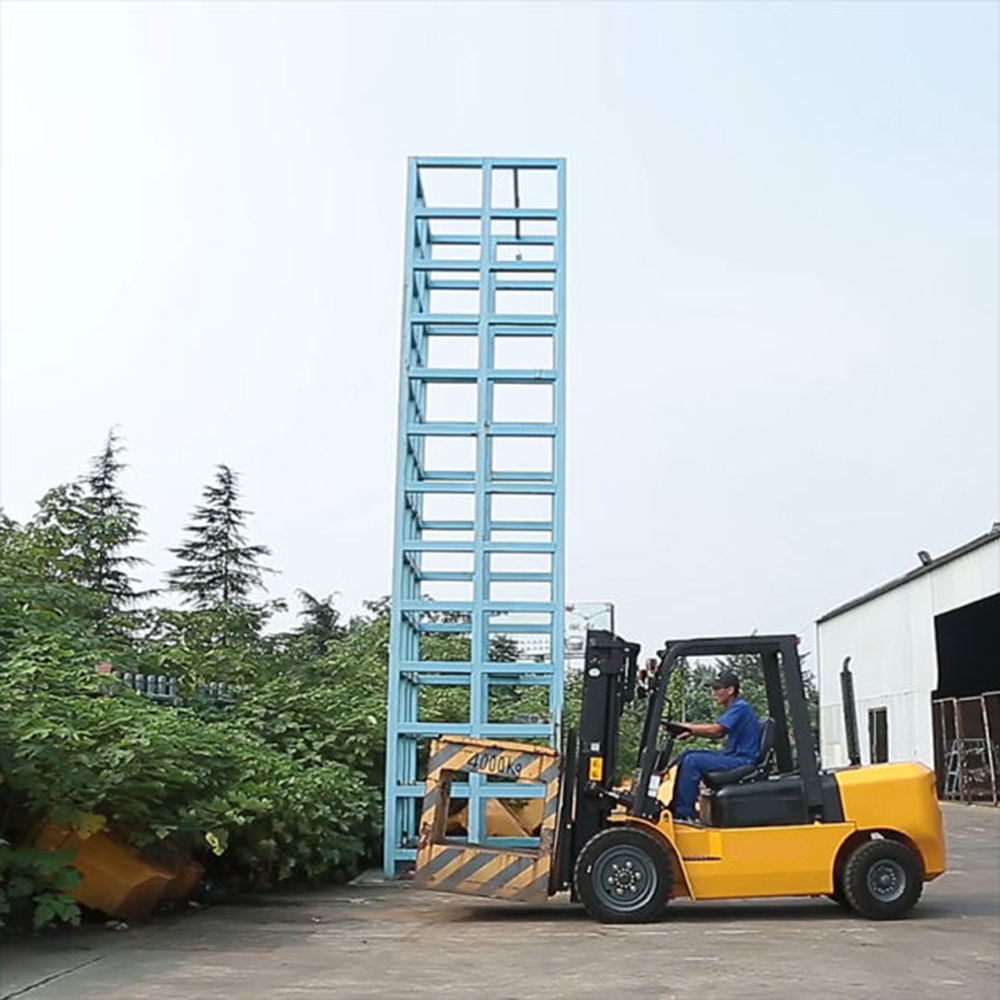

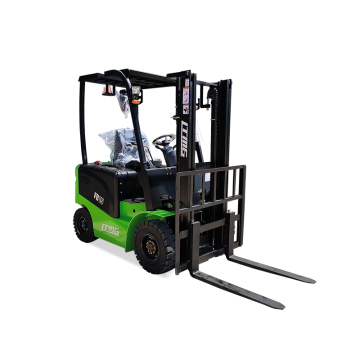

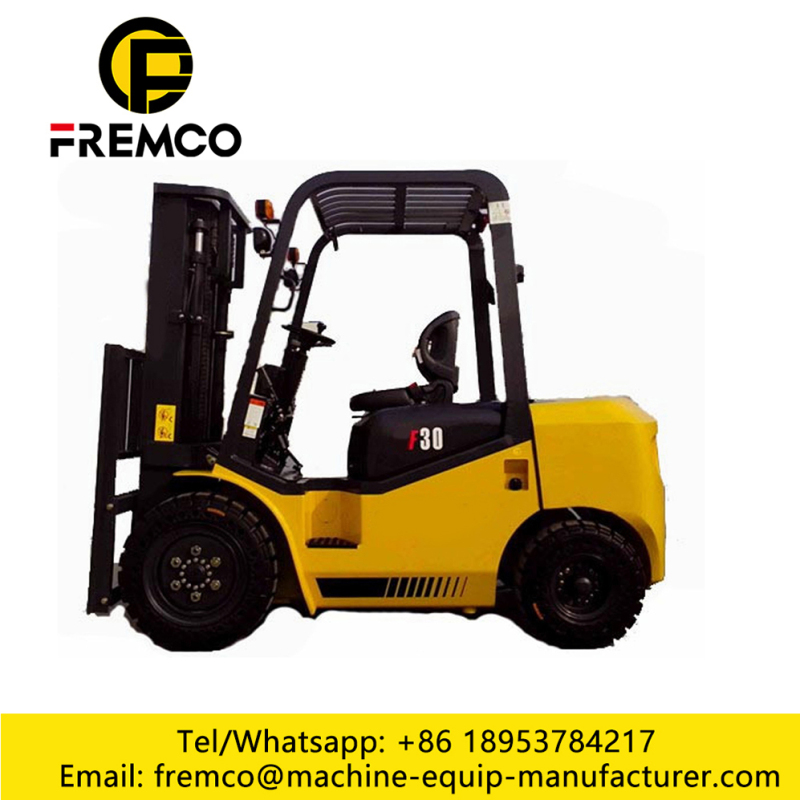

Detal photos of battery forklift truck
