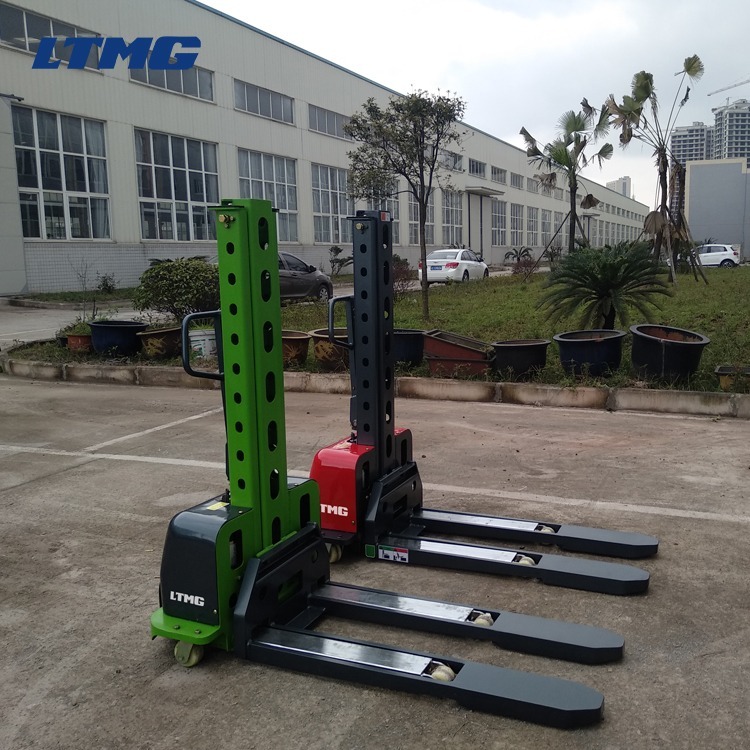

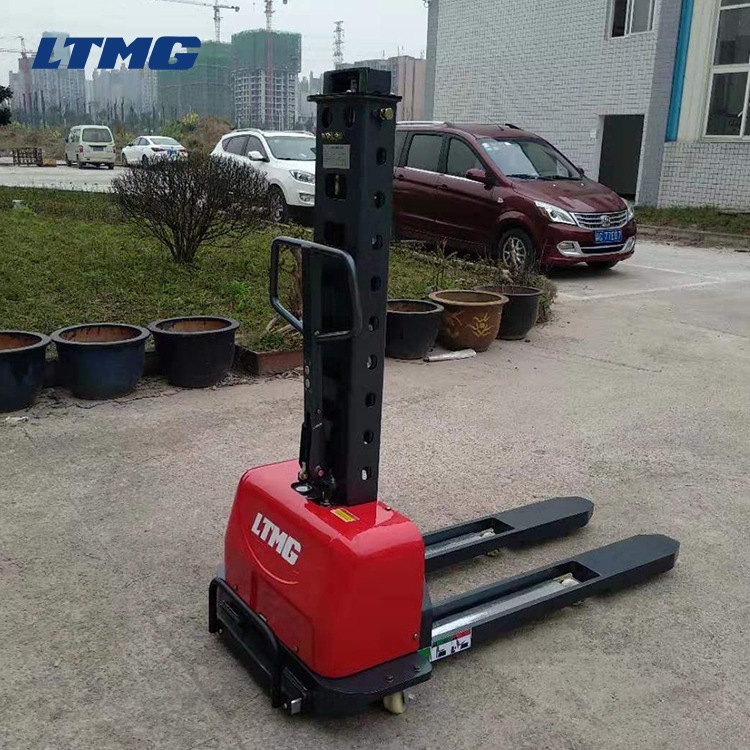

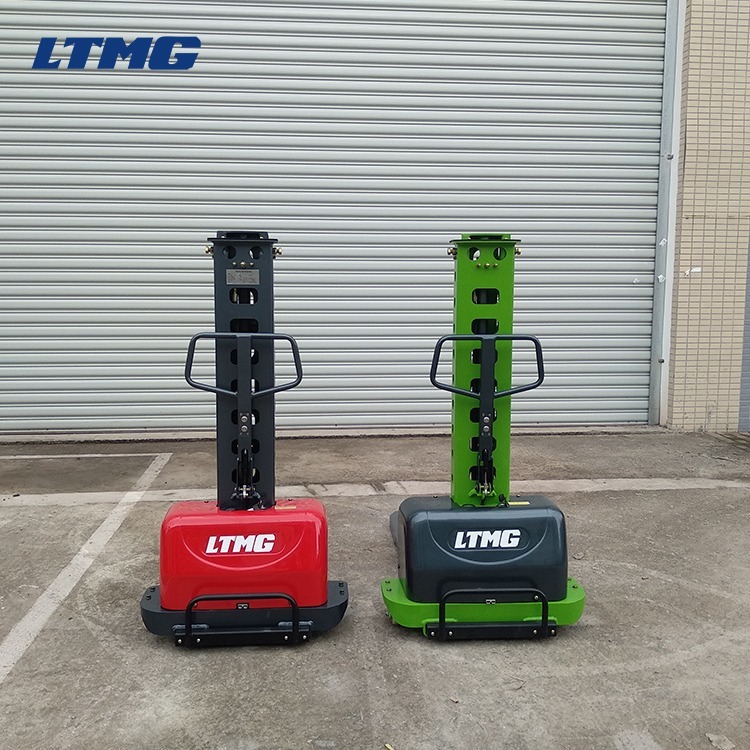

Electric Pallet Stacker 500kg - Portable Auto Lift Self-Loading Stacker
Contact Now
Description
产品描述
优势
Swing guide wheels are installed under the movable gate to push the body into the cabin
smoothly.
smoothly.
Scalable support frame , making the stacker more stable and safe.
Sealed batteries free of maintenance safe operation and no pollution.
Leg adopts the seamless moment tube, chromium plating.
|
Semi/Full Electric Self Lifting Stacker
|
|
|
|
|
|
|||||
|
型
|
|
|
ERB05/SERB05
|
ERB07/SERB07
|
ERB010/SERB10
|
|||||
|
|
|
|
|
|
|
|||||
|
性能
|
Maximum load capacity
|
kg
|
500
|
700
|
1000
|
|||||
|
|
with load center at
|
mm
|
400
|
400
|
400
|
|||||
|
|
Weight （with battery）
|
kg
|
245
|
280
|
300
|
|||||
|
|
Maximum lifting height
|
mm
|
1300
|
1300
|
1300
|
|||||
|
|
Lifting speed (without load)
|
mm/s
|
55
|
140
|
140
|
|||||
|
|
Lowered speed (without load)
|
mm/s
|
70
|
140
|
140
|
|||||
|
Dimensions
|
Overall length of frame
|
mm
|
1570
|
1658
|
1658
|
|||||
|
|
Overall width of frame
|
mm
|
786
|
800
|
800
|
|||||
|
|
Mast lowered height
|
mm
|
1600
|
1600
|
1600
|
|||||
|
|
Max height(mast lifted with backrest
|
mm
|
2375
|
2375
|
2375
|
|||||
|
|
Wheelbase
|
mm
|
758
|
985
|
985
|
|||||
|
|
叉子长度
|
mm
|
1150
|
1188
|
1188
|
|||||
|
|
Fork outside width
|
mm
|
535
|
565/680
|
565/680
|
|||||
|
|
Fork thickness
|
mm
|
60
|
80
|
80
|
|||||
|
|
Min ground height
|
mm
|
20
|
20
|
20
|
|||||
|
|
Fork lowered height
|
mm
|
90
|
90
|
90
|
|||||
|
|
Minimum turning radius
|
mm
|
1100
|
1300
|
1300
|
|||||
|
Tire
|
Front wheel
|
mm
|
70*60
|
80*50
|
80*50
|
|||||
|
发动机
|
Type or driving motor
|
DC
|
|
|
|
|||||
|
|
Rated output
|
KW
|
0.75
|
0.75
|
0.75
|
|||||
|
|
升降电机
|
DC
|
|
|
|
|||||
|
|
Rated output
|
kw
|
0.8
|
0.8
|
0.8
|
|||||
|
电池
|
Voltage
|
V
|
12 or 48
|
12 or 48
|
12 or 48
|
|||||
|
|
Capacity
|
AH
|
45 or 15
|
45 or 15
|
45 or 15
|
|||||
OEM/ODM
