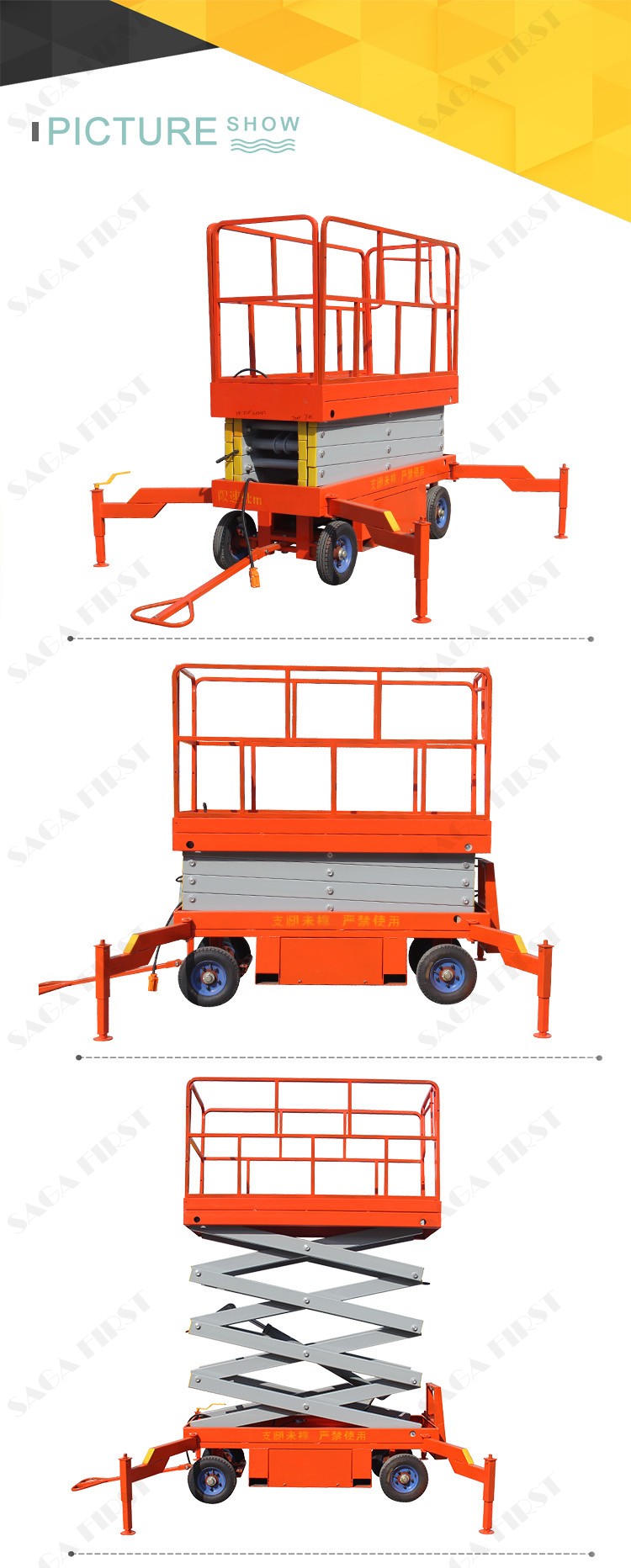

Electric Motor Towable Vertical Lifter Scissor Lift
Contact Now
Description
产品描述
Electric Hydraulic Upright mx19 Scissor Lift Parts
- OEM & ODM Service -
| Model No. | Platform Size (mm) |
Net weight (kg) |
Max. Platform Height (m) |
Lowed Platform Height (m) |
Power | Overall sizemm (mm) |
Net weight (kg) |
| SSL0504 | 2100*830 | 500 | 4 | 1.1 | Single Phase Power or Three Phase Power | 2250*950*1100 | 800 |
| SSL0506 | 2100*830 | 500 | 6 | 1.2 | 2250*950*1200 | 880 | |
| SSL0507 | 2100*830 | 500 | 7 | 1.28 | 2250*950*1280 | 970 | |
| SSL0508 | 2100*930 | 500 | 8 | 1.38 | 2250*1060*1380 | 1050 | |
| SSL0509 | 2100*930 | 500 | 9 | 1.5 | 2250*1060*1500 | 1165 | |
| SSL0510 | 2100*1230 | 500 | 10 | 1.53 | 2250*1350*1530 | 1360 | |
| SSL0511 | 2100*1230 | 500 | 11 | 1.65 | Three Phase Power | 2250*1350*1650 | 1400 |
| SSL0512 | 2550*1530 | 500 | 12 | 1.75 | 2796*1670*1750 | 2260 | |
| SSL0514 | 2812*1530 | 500 | 14 | 1.81 | 3067*1730*1810 | 2400 | |
| SSL0516 | 2812*1600 | 500 | 16 | 2.08 | 3067*1800*2080 | 3500 | |
| SSL0518 | 3070*1600 | 500 | 18 | 2.08 | 3321*1810*2080 | 3900 | |
| SSL1004 | 2100*1200 | 1000 | 4 | 1.18 | 2250*1350*1180 | 1250 | |
| SSL1006 | 2100*1200 | 1000 | 6 | 1.3 | 2200*1350*1300 | 1400 | |
| SSL1008 | 2100*1200 | 1000 | 8 | 1.42 | 2200*1350*1420 | 1585 | |
| SSL1010 | 2100*1200 | 1000 | 10 | 1.53 | 2200*1350*1530 | 1700 | |
| SSL1012 | 2550*1530 | 1000 | 12 | 1.75 | 2796*1670*1750 | 2560 | |
| SSL1014 | 2812*1530 | 1000 | 14 | 1.81 | 3067*1750*1810 | 2765 | |
| SSL1506 | 2100*1530 | 1500 | 6 | 1.53 | 2250*1750*1530 | 1780 | |
| SSL1508 | 2100*1530 | 1500 | 8 | 1.69 | 2250*1750*1690 | 2070 | |
| SSL1510 | 2100*1530 | 1500 | 10 | 1.85 | 2250*1750*1850 | 2250 | |
| SSL1512 | 2550*1530 | 1500 | 12 | 1.85 | 2250*1762*1850 | 2900 | |
| SSL1514 | 2816*1600 | 1500 | 14 | 1.96 | 3045*1852*1960 | 3400 | |
| SSL2006 | 2100*1530 | 2000 | 6 | 1.53 | 2250*1750*1530 | 1780 | |
| SSL2008 | 2100*1530 | 2000 | 8 | 1.69 | 2250*1750*1690 | 2070 | |
| SSL2010 | 2100*1530 | 2000 | 10 | 1.85 | 2250*1750*1850 | 2250 | |
| SSL2012 | 2550*1600 | 2000 | 12 | 1.954 | 2796*1852*1954 | 3200 | |
| SSL2014 | 2816*1600 | 2000 | 14 | 2.23 | 3067*1852*2230 | 3900 |
立式 mx19 剪刀式升降机零件由人工移动或由拖拉机或罐头牵引。并通过不同的功率提升，例如 AC、DC、AC 和 DC、柴油。
产品描述
立式 mx19 剪刀式升降机零件以其结构简单、故障率低、载重量大、价格便宜而著称。
