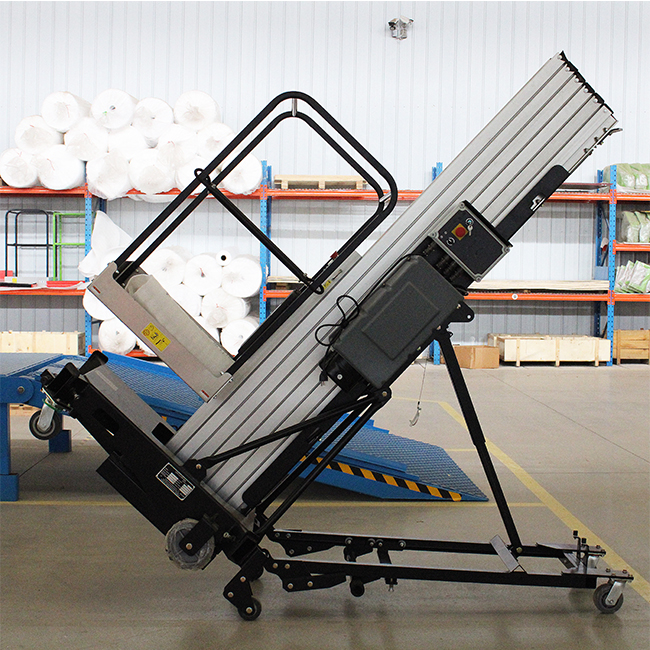

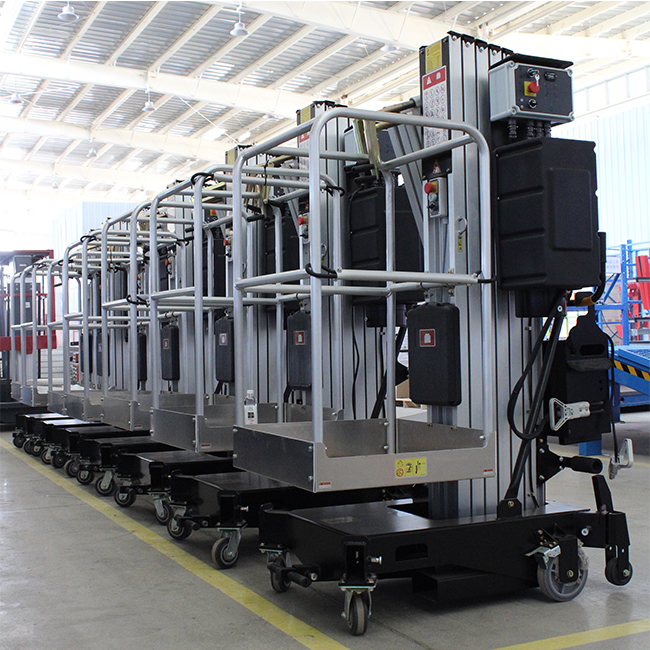

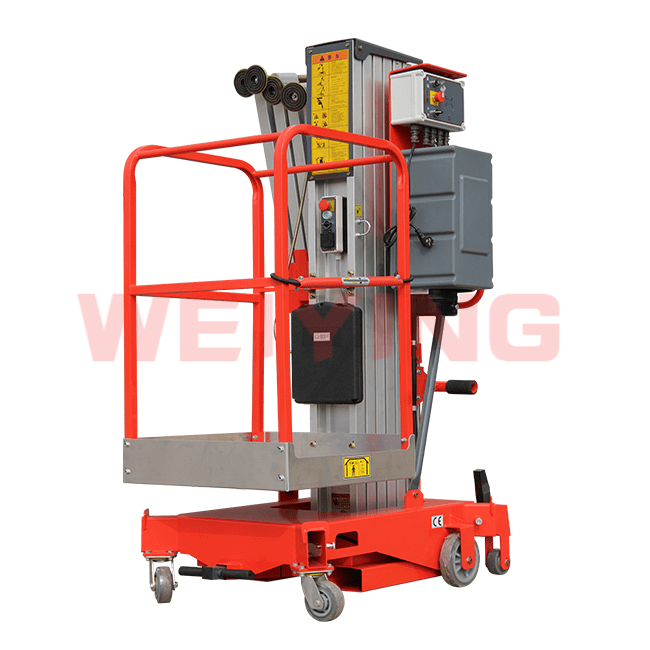

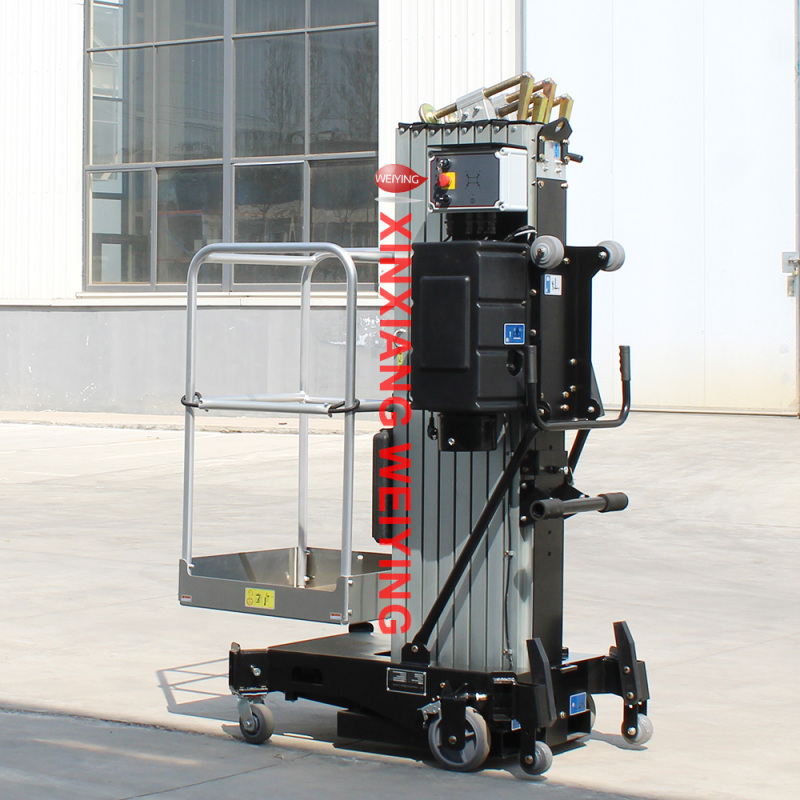

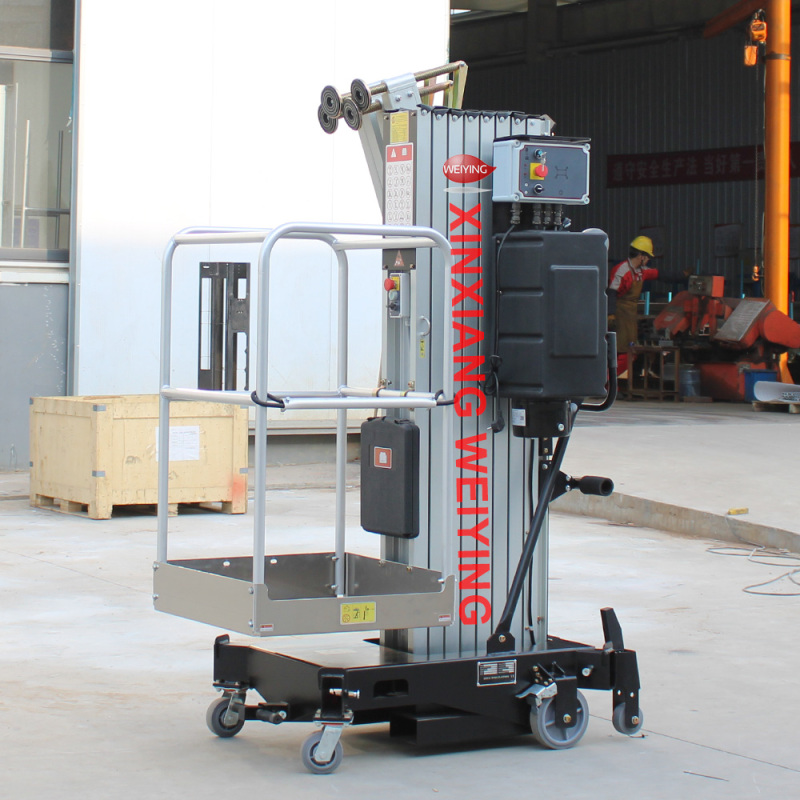

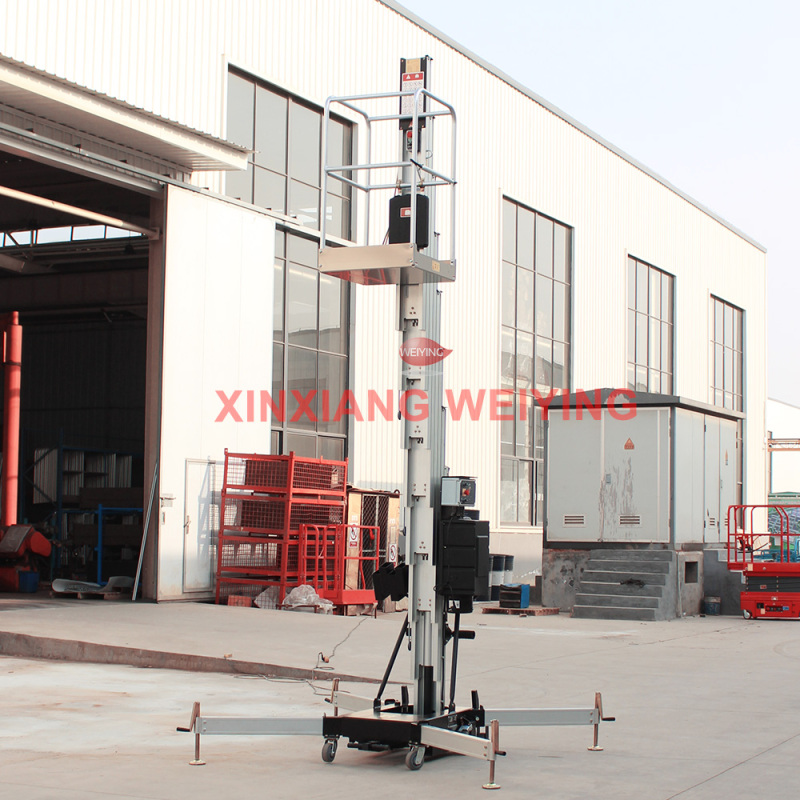

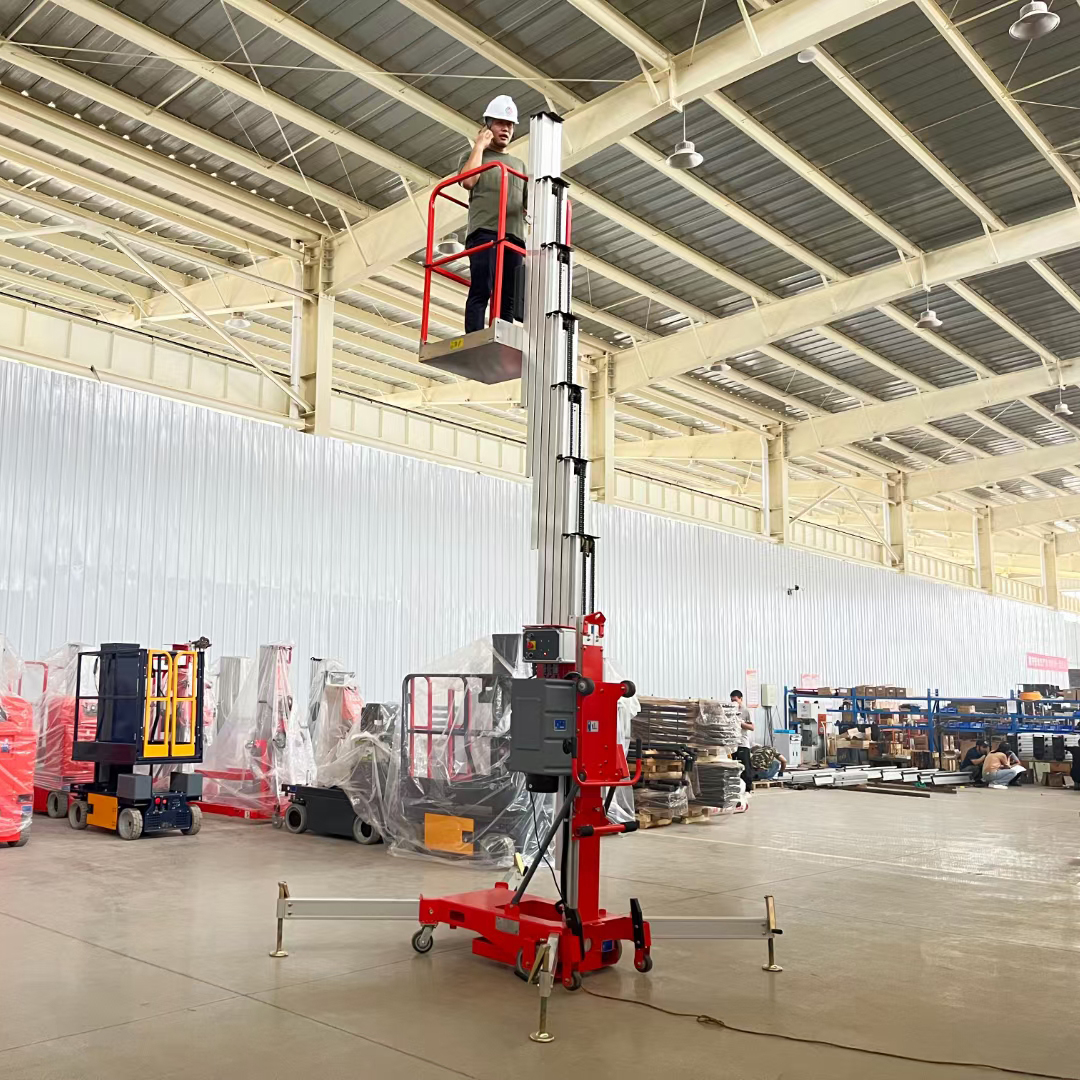

European Standard 8m 150kg AC Power Aluminum Alloy Lift Table Hydraulic Single Mast Electric Lifting Platform
Contact Now
Description
产品描述
|
型
|
GTWY1-5
|
GTWY1-6
|
GTWY1-8
|
GTWY1-9
|
GTWY1-10
|
GTWY1-12
|
||||||
|
Max.Platform height
|
4.7m
|
6.2m
|
7.8m
|
9.2m
|
10.4m
|
12m
|
||||||
|
Max.working height
|
6.7m
|
8.2m
|
9.8m
|
11.2m
|
12.4m
|
14m
|
||||||
|
loading capacity
|
150kg
|
150kg
|
150kg
|
150kg
|
136kg
|
120kg
|
||||||
|
Platform size
|
0.67*0.66m
|
0.67*0.66m
|
0.67*0.66m
|
0.67*0.66m
|
0.67*0.66m
|
0.67*0.66m
|
||||||
|
Overall height
|
1.99m
|
1.99m
|
1.99m
|
1.99m
|
1.99m
|
2.68m
|
||||||
|
Overall width
|
0.78m
|
0.78m
|
0.78m
|
0.78m
|
0.78m
|
0.83m
|
||||||
|
Overall length
|
1.24m
|
1.24m
|
1.36m
|
1.4m
|
1.42m
|
1.46m
|
||||||
|
Outriggers Support Range
|
1.7*1.7m
|
1.7*1.7m
|
1.7*1.7m
|
2.1*2m
|
2.1*2m
|
2.5*2.3m
|
||||||
|
Total weight AC
|
330kg
|
350kg
|
370kg
|
390kg
|
420kg
|
490kg
|
||||||
|
Total weight
DC
|
355kg
|
375kg
|
395kg
|
415kg
|
445kg
|
515kg
|
||||||
|
权力
|
|
|
|
|
|
|
||||||
|
AC
|
380v/220v/110v
|
380v/220v/110v
|
380v/220v/110v
|
380v/220v/110v
|
380v/220v/110v
|
380v/220v/110v
|
||||||
|
AC motor
|
0.75kw
|
0.75kw
|
0.75kw
|
0.75kw
|
0.75kw
|
0.75kw
|
||||||
|
DC
|
12v
|
12v
|
12v
|
12v
|
12v
|
12v
|
||||||
|
DC motor
|
1.6kw
|
1.6kw
|
1.6kw
|
1.6kw
|
1.6kw
|
1.6kw
|
||||||
|
Charger
|
12v/15A
|
12v/15A
|
12v/15A
|
12v/15A
|
12v/15A
|
12v/15A
|
||||||
