QH-800 Swing Radial Industrial Robot Manipulator with 3/5 Axis Servo Motor
Contact Now
Description
产品描述
产品描述

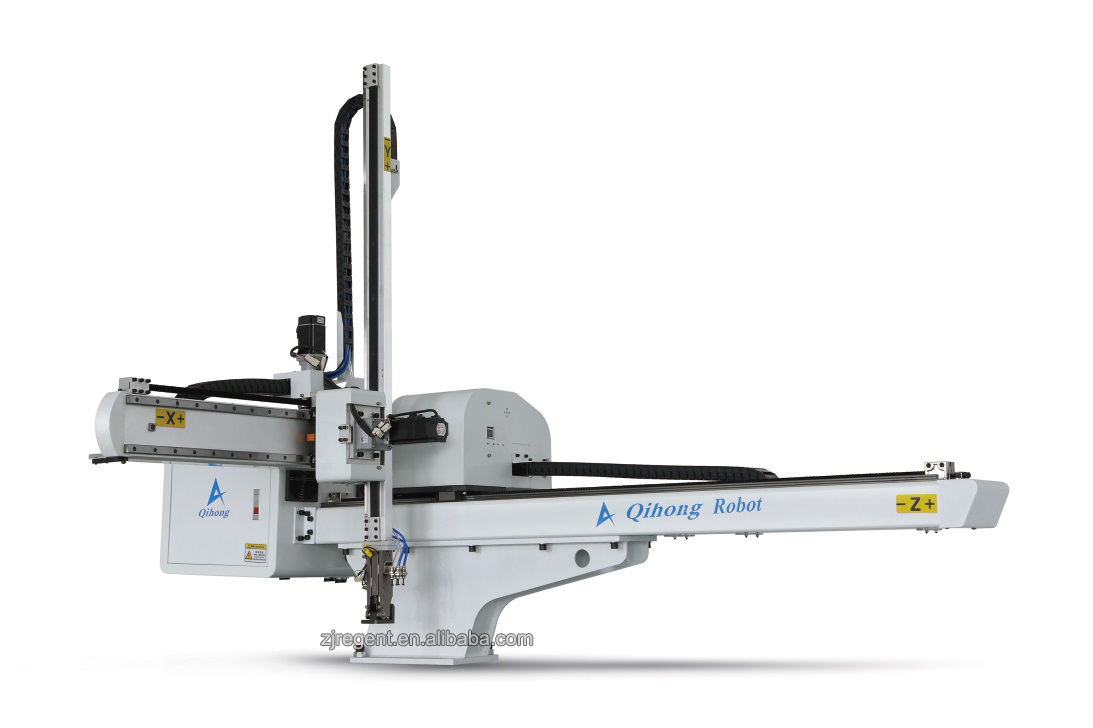

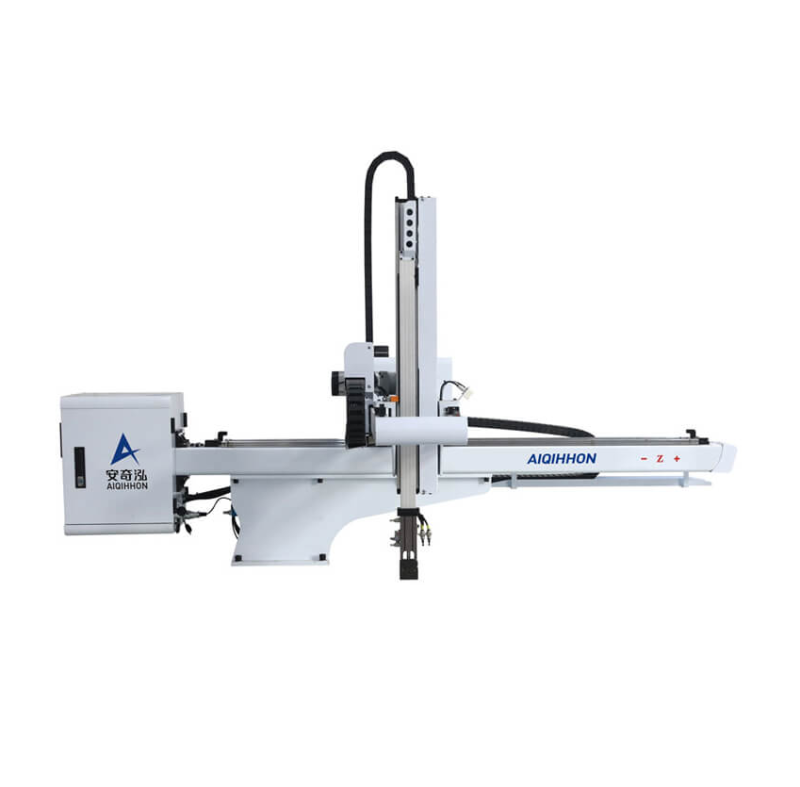

QH-800 Swing Radial Industrial Pick And Place Arm Robot Manipulator With 3/5 Axis Servo Motor
1. QH-800 manipulator
2. Customized industrial robot arm
3. Match 250-280T injection molding machine, contact us for details
4. Automatic injection molding system
|
Model
|
QH-800
|
|
Product Name
|
3/5 Axis Servo Mechanical Arm
|
|
Recommended I.M.M
|
250-280T
|
|
X-axis Stroke
|
800mm
|
|
Y-axis Stroke
|
650mm
|
|
Traverse Stroke
|
1300mm
|
|
Voltage
|
200-220V / 50-60Hz
|
|
Air Pressure
|
0.55Mpa
|
|
Drive System
|
AC servo motor + air cylinder
|
|
Swing Angle
|
90°
|
|
Max Load
|
1-6kg
|
|
Max Consume Power
|
2.7Kw
|
|
Air Consumption
|
0.5NL/cm³
|
|
Dry Take Out Time
|
0.98 sec
|
|
Dry Cycle Time
|
4.4 sec (or match injection cycle time)
|
|

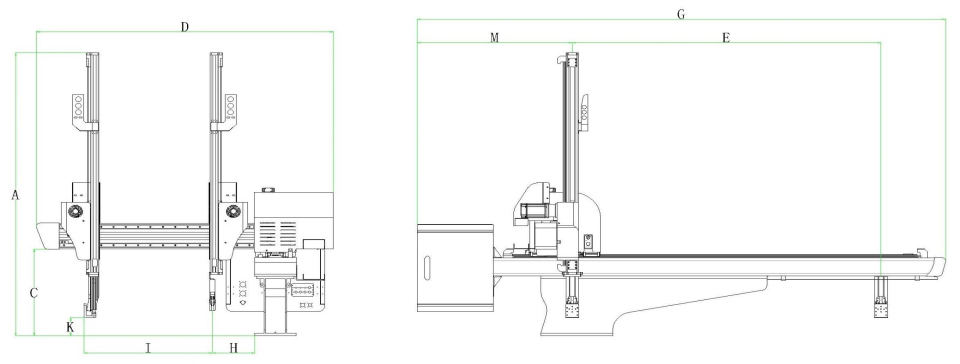

Dimension
|
L234 * W145 * H157cm
|
|
Weight
|
280kg
|
