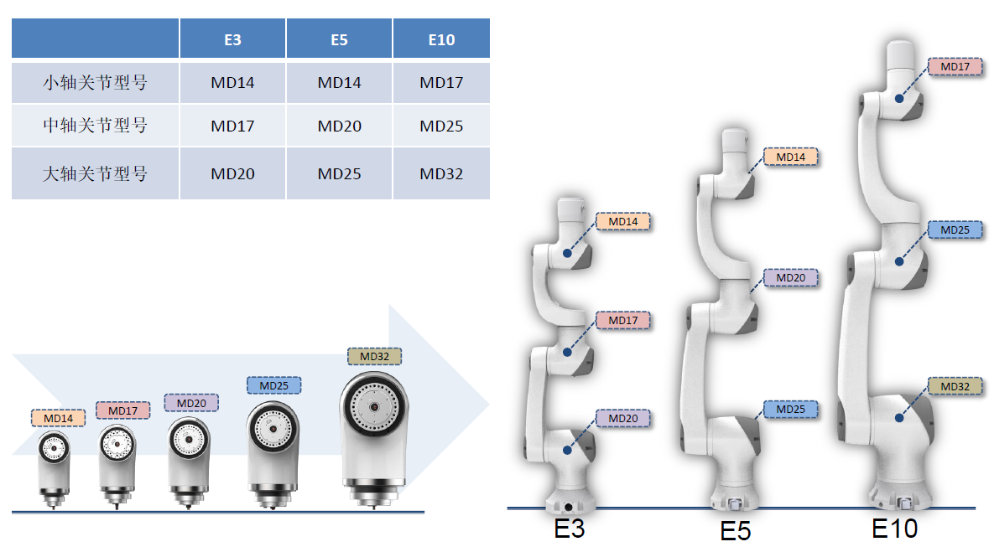

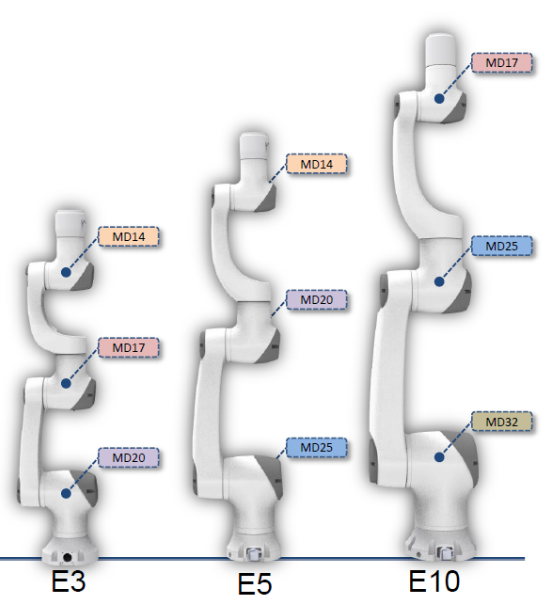

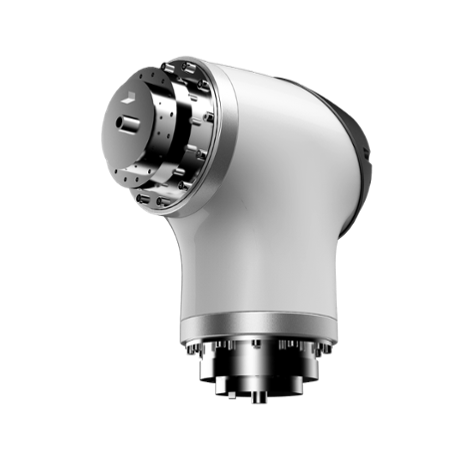

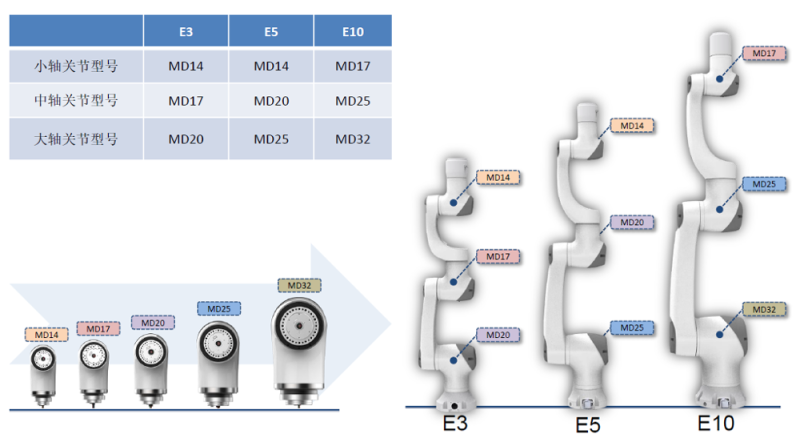

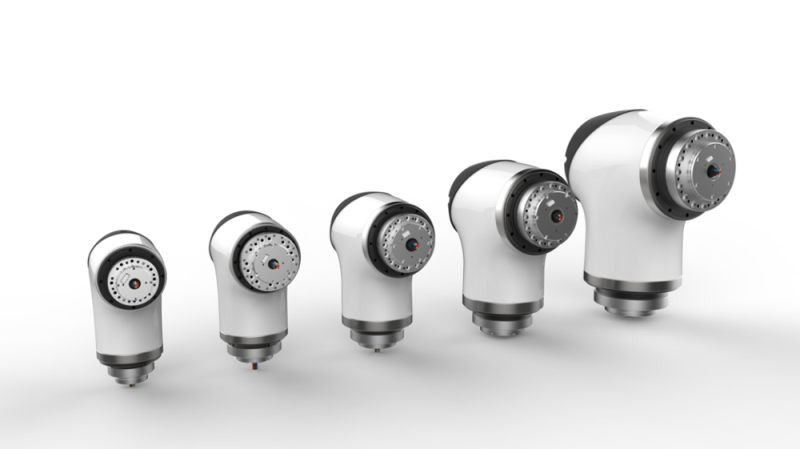

D module series Modular Joint

Han's Robot has designed for the collaborative robot a two-joint module. It highly integrates frameless direct drive torque motor, low-voltage DC drive, harmonic drive, brake and so on, which conforms to the compact and flexible feature of a collaborative robot.

The high integration design reduces customer's R&D investment in engineers and time, simplifies supplier chain management and comprehensive quality management cost, thus achieving quick marketing of new robots. Therefore, it makes the development of collaborative robot more stable, reliable, convenient, safe as well as meets design diversity.

Model	D module 14 series
Repeatability	20 arcsec
Ambient temperatue range	0-50°
Working humidity	10-80%
supply voltage	DC 48V
Certification	CE，ISO

规范

Rated Torque	9.4Nm
Peak Torque	34Nm
Maximum Rotation Speed	90°/s
Weight	2.8Kg
Rotation Angle	+/— 360°
Communication	Ether CAT
IP Class	IP54
Main Material	Aluminum Alloy
