Plastic Bearing Conveyor Roller
Description
产品描述
Baoding Huayun Conveyor Machinery Co.,Ltd is a manufacture a wide series of Idler Roller and its Accessories such as Conveying Set, Carrying Idler, Flat Return Idler,Toughing Idler, Conveyor Belt Guide Roller, Impact Idler, Drum Pulley and many conveyor accessories form material handling purpose as described ahead. All the conveyor accessories are designed and developed with high quality material.
plastic bearing conveyor conveyor roller bearing plastic bearing conveyor roller

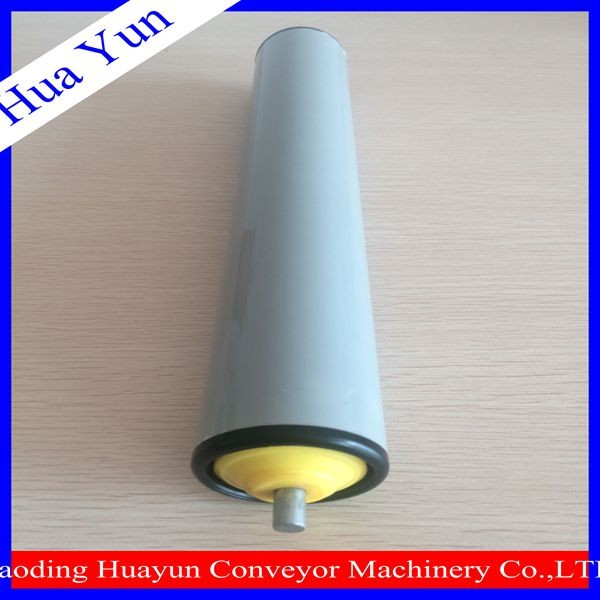

Baoding Huayun factory PVC pipe conveyor roller:
Features:
Pipe - steel Z/P stainless steel Aluminium PVC
Diameter(mm): 20 25 38 48 50 60 63.5 76 80 89 108 133 159
Thickness(mm):1 1.2 1.5 2.0 2.5 3 4
Shaft diameter(mm) - 6 8 10 12 15 11hex 17 20 25
Bearing - 6001 6002 6003 6004 6005 6202 6204
| Description | PVC pipe conveyor roller |

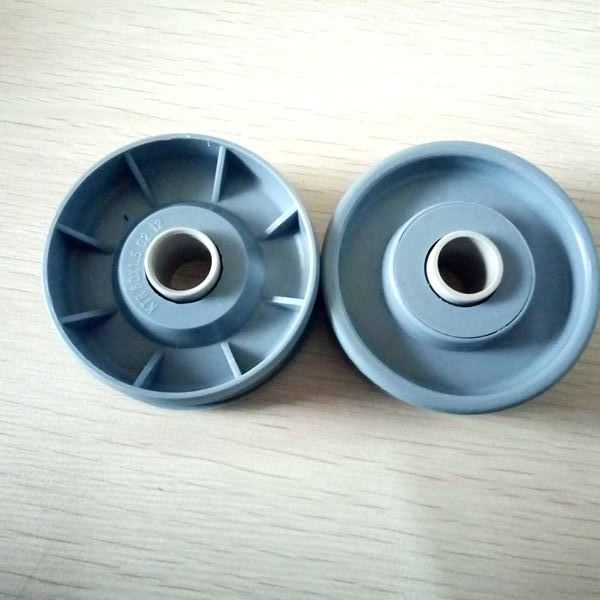

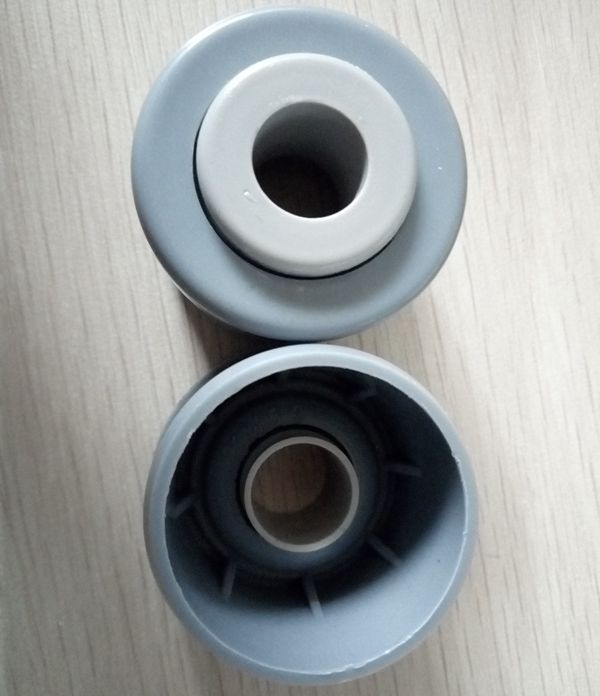

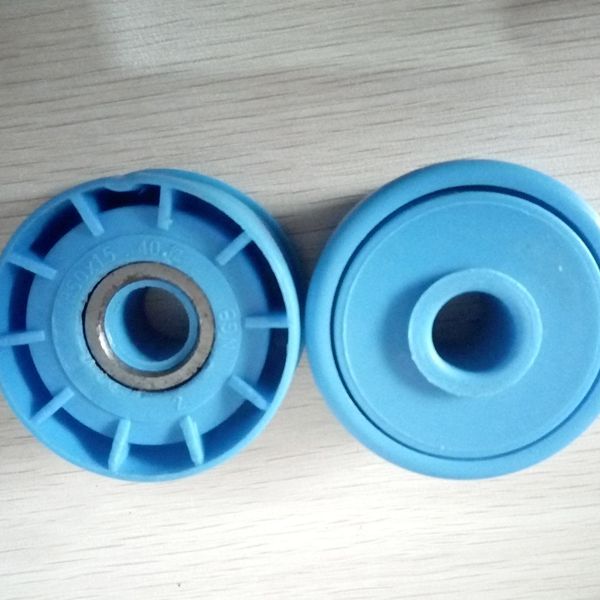

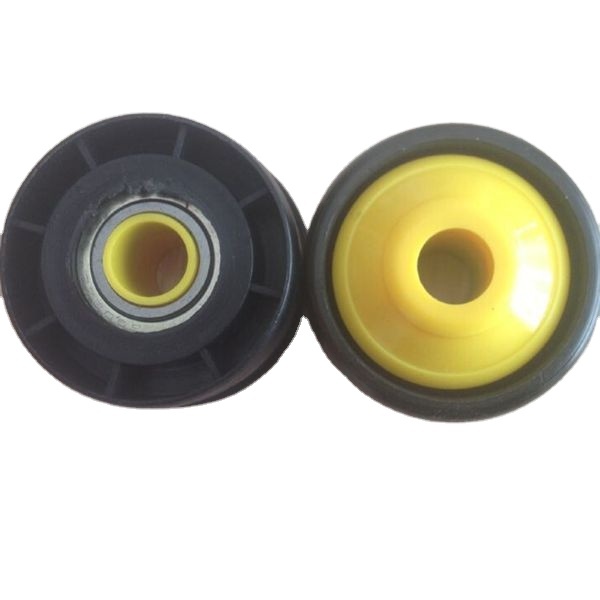

| Cover end type | galvanized steel / plastic |
| Installation method | Spring loaded/female thread/flat milling |
| Tube material | Steel, zinc-plated, stainless steel, aluminium |
| Tube diameter | 18/25/38/50/60mm |
| Shaft material | high quality carbon steel |
| Shaft diameter | 6/8/12/15mm |

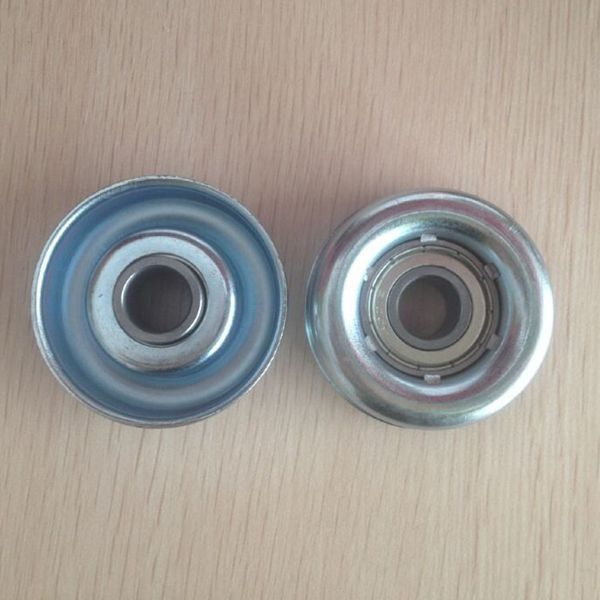

| Bearing housing | steel/galvanized steel |
| Bearing type | Precision ball bearing |
| Ground sleeve | polyamide |
| Temperature | -0 ~ +80 centigrate degree |
| Appliation | Used for airport conveyor parts |
Different kinds of PVC pipe conveyor roller:

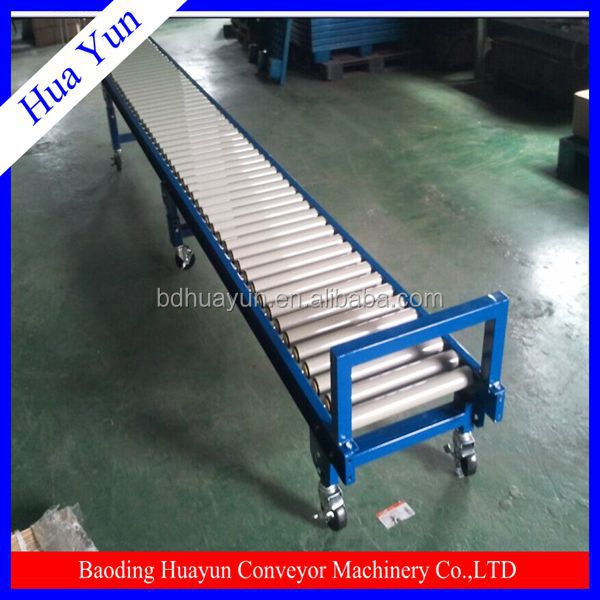

About roller,we can make gravity conveyor roller,steel conveyor roller,driving roller,light middle duty conveyor roller,o-belt tapered sleeve roller,gravity tapered roller,polymer sprocket roller and so on.
