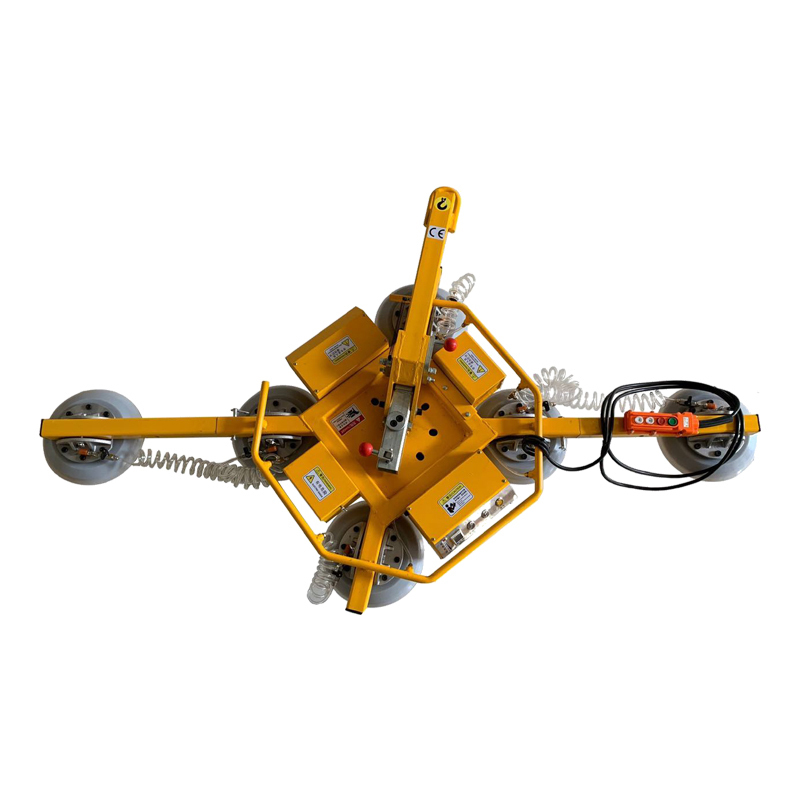

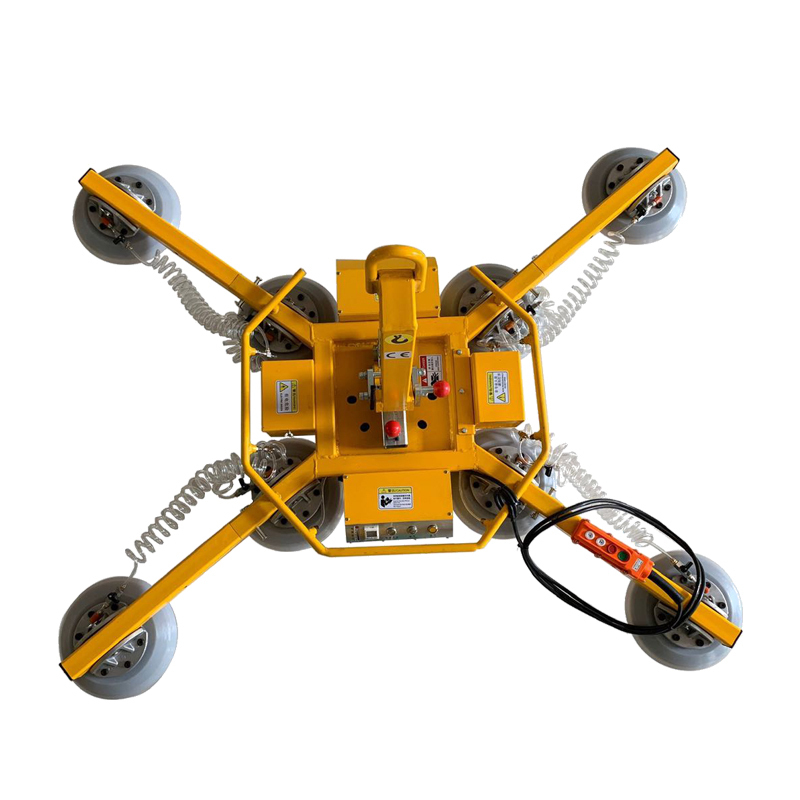

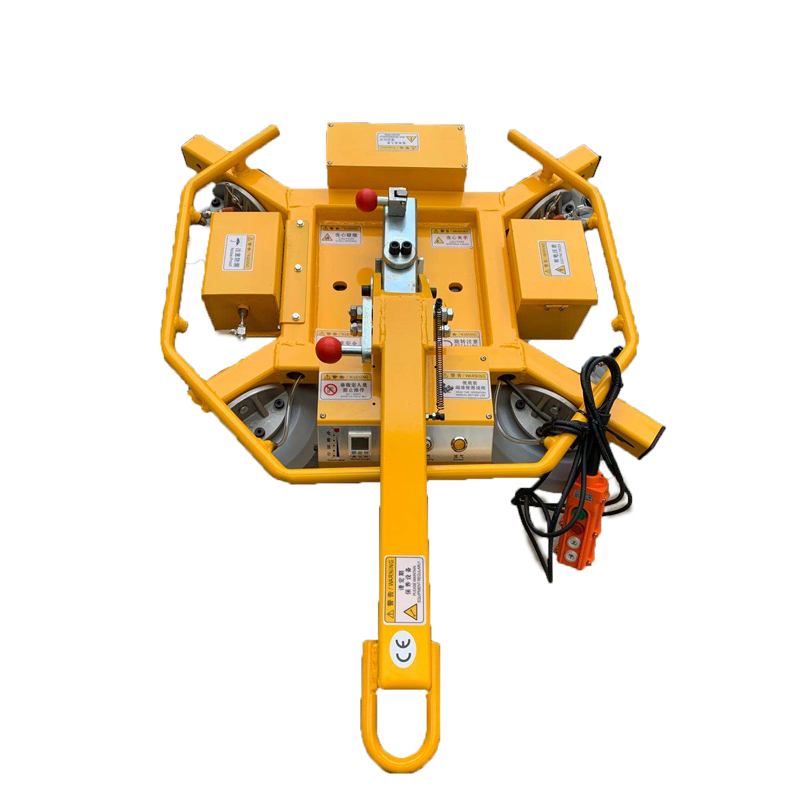

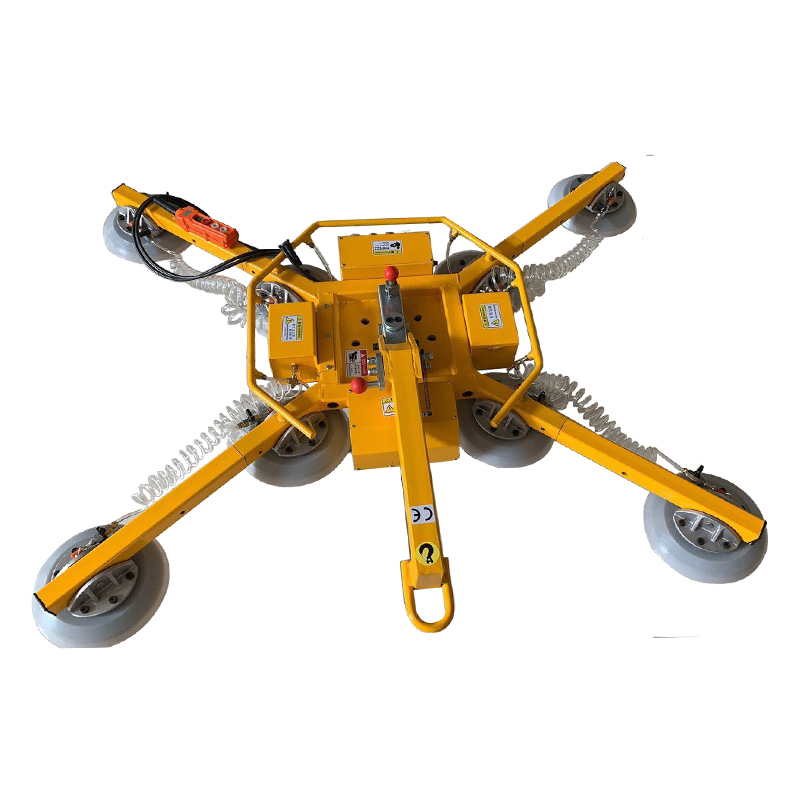

Portable Vacuum Glass Suction Lifter for Loads up to 1200kg
Contact Now
Description
产品描述
400kg 600kg 800kg 1000kg 1200kg Portable Vacuum glass suction lifter
OEM&ODM Service
OEM&ODM Service

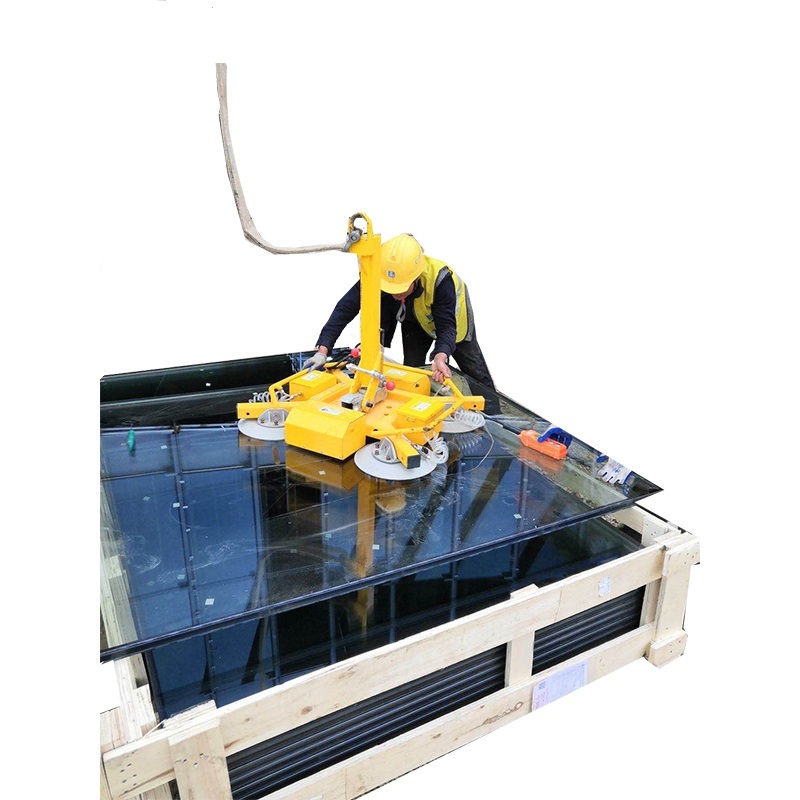

Sagafirst suction caps are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble.They are widely used for installing glass wall,windows for contruction and metal sheet,marbles process workshop etc.
| 型 | GL-SC-400 | GL-SC-600 | GL-SC800 | GL-SC-1000 | |
| Lifting Capacity | kg | 400 | 600 | 800 | 1000 |
| Cup Qty | / | 4 | 6 | 8 | 10 |
| Single Cup Size | mm | 300 | 300 | 300 | 300 |
| Single Cup Lifting Capacity | kg | 100 | 100 | 100 | 100 |
| Rotation | / | 360°manual rotate | |||
| Tilting | / | 90° manual | |||
| Volte | V | DC12 | |||
| 充电器 | V | AC220/110 | |||
| Weight | kg | 70 | 90 | 100 | 110 |
| Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 |
| Extension Bar Length | mm | 500 | |||
| Control System | / | Integrated Control Cabinet and Wired Remote Control | |||
| Overall Size after packed by wooden box | mm | 1230*910*390 | |||
| Gross Weight after packed by wooden box | kg | 97 | 110 | 123 | 150 |
