Wireless Remote Control Trackless Electric Motorized AGV Transfer Cart for Material Handling
Description
产品描述
Handling equipment wireless remote control trackless electric motorized agv transfer cart

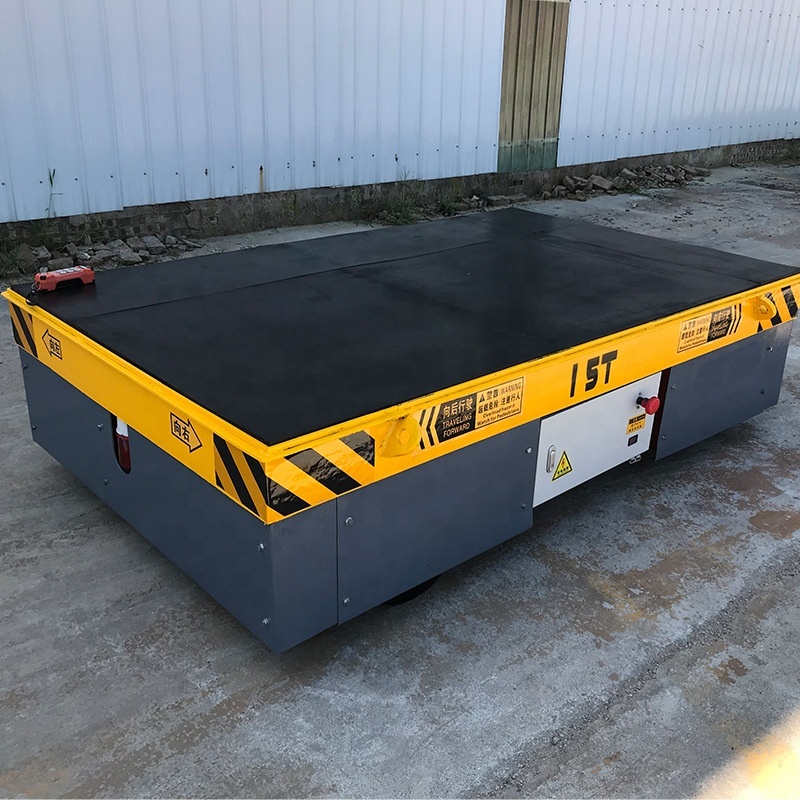

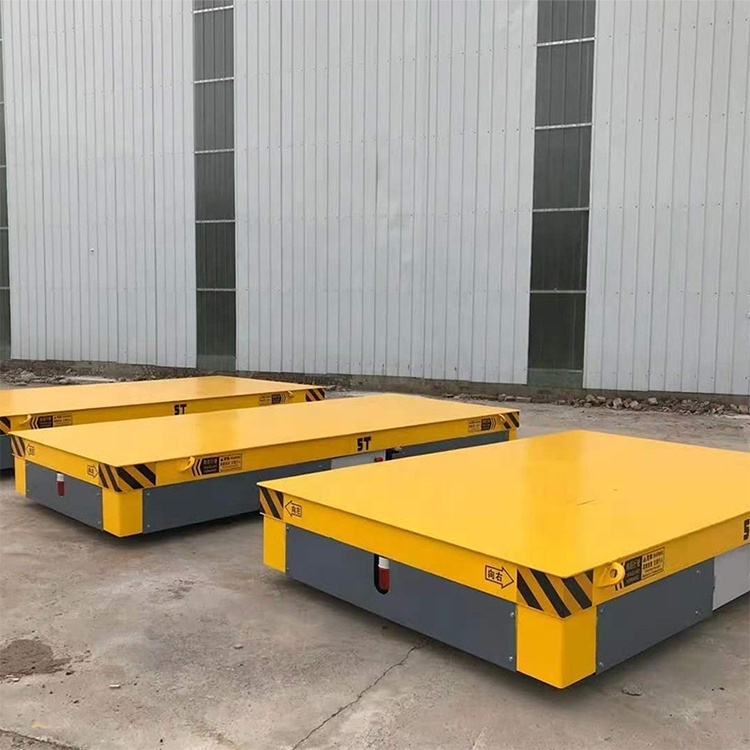

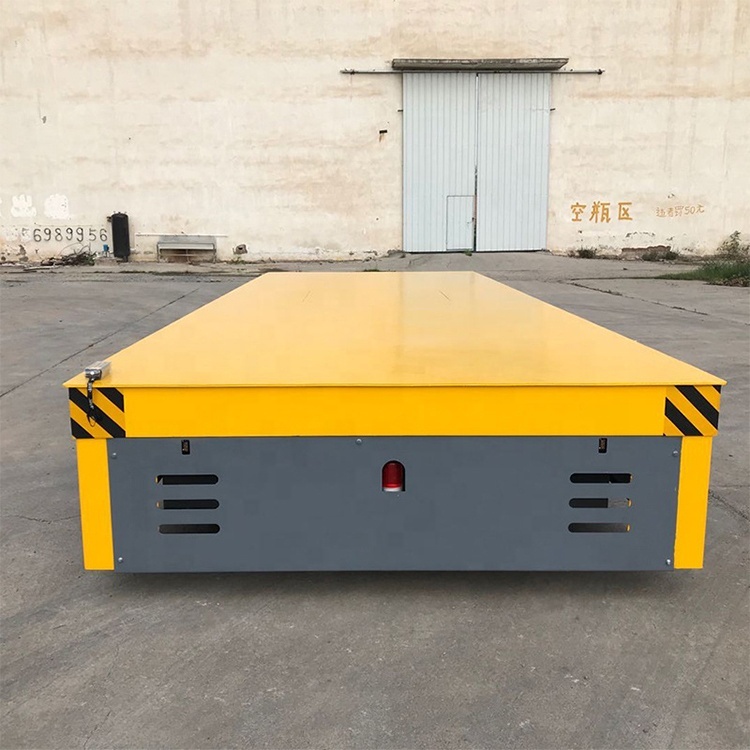

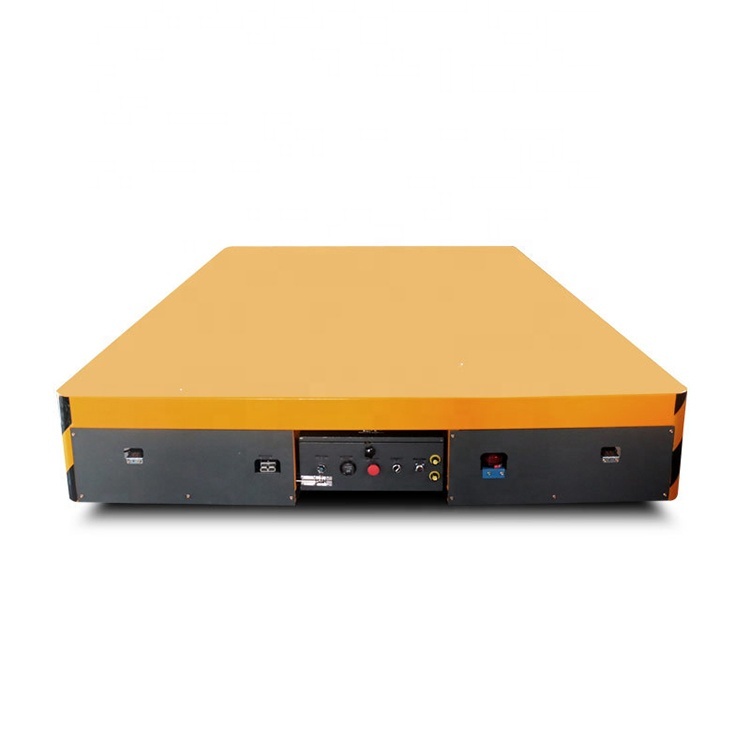

Handling equipment wireless remote control trackless electric motorized agv transfer cart is designed for transporting heavy cargoes or equipment from one place to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
Handling equipment wireless remote control trackless electric motorized agv transfer cart main contains KPD, KPJ, KPTand KPX, If you are unsure as to what type of transfer cart will best serve your needs. Spending a few minutes now to discuss with us about your needs. According to your business needs, we will provides you with the most professional products ,our products are found in all sectors, with excellent craftsmanship and technical team, so we produce transfer cart applications in various industries have been widely used.
Advantage:
· The transfer cart can run on the Vertical rails, ”L”rails, “S”rails, arc-shaped rails...
· The transfer cart can be applied in many occasions, such as easy explosion, high temperature, ferry...
· DC motor, stable start, starting torque, small impact to gear reducer, low voltage, long lifetime...
· This kinds of transfer cart is battery powered, so only charged fully, can it run freely without limited distance.
· Professional team from Kenancranes, the proper solution can be provided once getting for your inquiry.
· The transfer carts are customized as per your true demand.
|
Mode |
KPX-10T |
KPX-30T |
KPX-50T |
KPX-80T |
KPX-100T |
KPX-150T |
|
Table Size (m) |
3.6*2.0*0.5 |
4.5*2.2*0.6 |
5.5*2.5*0.65 |
6.0*2.6*0.8 |
6.5*2.8*0.9 |
10*3.0*1.2 |
|
Power |
Maintenance Free Battery |
|||||
|
Rail inner Gauge |
1435mm |
1435mm |
1435mm |
1800mm |
2000mm |
2000mm |
|
Wheel Dia. |
350mm |
400mm |
500mm |
600mm |
600mm |
600mm |
|
Running Speed |
0-20m/min |
0-20m/min |
0-20m/min |
0-20m/min |
0-20m/min |
0-20m/min |
|
Motor Power |
1.6kw |
3.5kw |
5kw |
8kw |
10kw |
15kw |
|
Battery Capacity |
180Ah |
250Ah |
330Ah |
400Ah |
440Ah |
600Ah |
|
Battery Voltage |
48v |
48v |
48v |
72v |
72v |
72v |
|
Max Wheel Load |
42.6Kn |
110.4Kn |
174Kn |
278.4Kn |
343.8Kn |
265.2Kn |
|
Reference weight |
4.2t |
6.8t |
8t |
12.8t |
14.6t |
26.8t |
|
Recommend Rail |
P24 |
P38 |
P43 |
P50 |
QU100 |
QU100 |
Remark: the technical parameter of the transfer cart only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time.

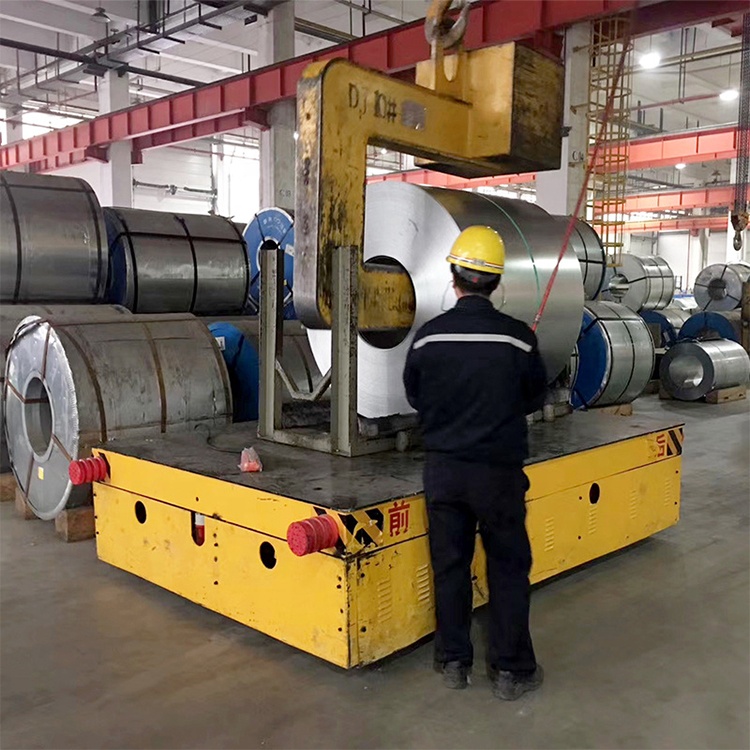

Industrial high speed transfer transport cart on rail is suitable for various occasions, for example,industries,( 67596641,steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer work piece into the painting room Sand blasting room) Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.
For material handling, it has been widely used in this field with hot market. Any requirement, welcome to contact with us. The proper solution will be provided once listening to your voice by our professional engineer.
