Product ID: 67922663

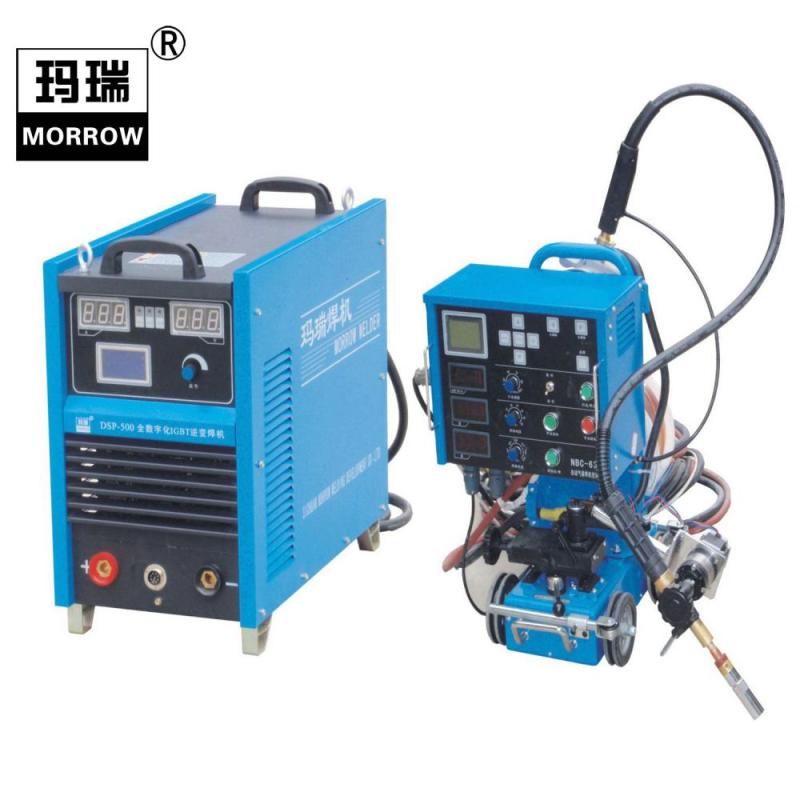

Inverter IGBT Automatic Angle-Oscillation MIG Weldier (630A)
Contact Now
Description
产品描述
Product Description:
1. Using inverter technology, IGBT dual module to save energy.
2. Reactors and transformers are all copper wire wound.
3. The actual input current ensures compliance with the described current value.
4. Small size, light weight, high reliability, good welding effect.
5. All products are available for OEM.
6.Guaranty: One year for the whole machine and PC board, and we will offer you spares valued 4% of the total amount for you to do maintenance.
Features:
Power Source:
1.soft-switch inverter technology, DSP all-digital control, world-advanced level
2.With welding expert database inside, can save 30 sets of self-set Parameter
3.Automatic protection from over-current, over/under-voltage, over
Temperature
4.all-digital LCD menu to show functions and data, synergic adjustment supported, easy to operate
5.Support MMA and MAG welding
Trolley:
1. 30 sets of data can be saved
2.Oscillation speed, rate, range, stopping time can be adjusted
3.Digital display of current, voltage, marching speed
Technical Parameters:
公司简介：
四川莫罗焊接发展有限公司（MORROW WELDING）是一家专业从事IGBT系列逆变焊接产品研发、生产和销售的高新技术企业。
我们成立了 Morrow 逆变电源研究所，专门从事逆变焊机的研究、开发和再生。
我们可以根据不同客户的不同要求开发和生产专业产品。
我们所有的产品均按照 ISO9001：2000 质量体系证书生产，并拥有“CCC”证书。
我们以“质量第一、性能第一、服务第一”的经营理念，致力于为国内外客户提供理想的焊接设备。
1. Using inverter technology, IGBT dual module to save energy.
2. Reactors and transformers are all copper wire wound.
3. The actual input current ensures compliance with the described current value.
4. Small size, light weight, high reliability, good welding effect.
5. All products are available for OEM.
6.Guaranty: One year for the whole machine and PC board, and we will offer you spares valued 4% of the total amount for you to do maintenance.
Features:
Power Source:
1.soft-switch inverter technology, DSP all-digital control, world-advanced level
2.With welding expert database inside, can save 30 sets of self-set Parameter
3.Automatic protection from over-current, over/under-voltage, over
Temperature
4.all-digital LCD menu to show functions and data, synergic adjustment supported, easy to operate
5.Support MMA and MAG welding
Trolley:
1. 30 sets of data can be saved
2.Oscillation speed, rate, range, stopping time can be adjusted
3.Digital display of current, voltage, marching speed
Technical Parameters:
| 内容 | NBC-630 |
| Power source | 3-phase 380V/415V 50/60Hz |
| 额定输入电流 | 52A |
| 额定输入容量 | 34KVA |
| Rated welding current/voltage | 630A/44V |
| 焊接电流 | 60% |
| No-load voltage (MAX) | 73V |
| Adjust. range of welding curr. | 40-630A |
| 效率 | 85% |
| Power factor | >0.95 |
| Pre-gas sending time | 0~1S |
| Post-gas sending time | 0~10S |
| Diameter of wire | Ф1.0~Ф1.6mm solid/flux-cored wire |
| Dimensions (mm) | 651×356×665 |
| Insulation class | F |
| Protection class | IP21S |
| Contents | Technical parameter |
| Marching speed of trolley | 0-120cm/min |
| Oscillation angle | ± 0.1 °~9.9° |
| Oscillation center | As you like |
| Oscillation speed | 0.1-6.0 m/min |
| Left stop time in oscillation | 0-5.0S |
| Right stop time in oscillation | 0-5.0S |
| Center stop time in oscillation | 0-5.0S |
| Up/down adjust. Distance of torch | 10cm |
| Left/right adjust. Distance of oscillator | 10cm |
| Number of saving channel | 30group |
公司简介：
四川莫罗焊接发展有限公司（MORROW WELDING）是一家专业从事IGBT系列逆变焊接产品研发、生产和销售的高新技术企业。
我们成立了 Morrow 逆变电源研究所，专门从事逆变焊机的研究、开发和再生。
我们可以根据不同客户的不同要求开发和生产专业产品。
我们所有的产品均按照 ISO9001：2000 质量体系证书生产，并拥有“CCC”证书。
我们以“质量第一、性能第一、服务第一”的经营理念，致力于为国内外客户提供理想的焊接设备。
