200A cellouse mma pulsed arc welding machine,220V 1phase input,Vertical Weld,overhead Weld,fillet Weld
Description
产品描述
Product Application

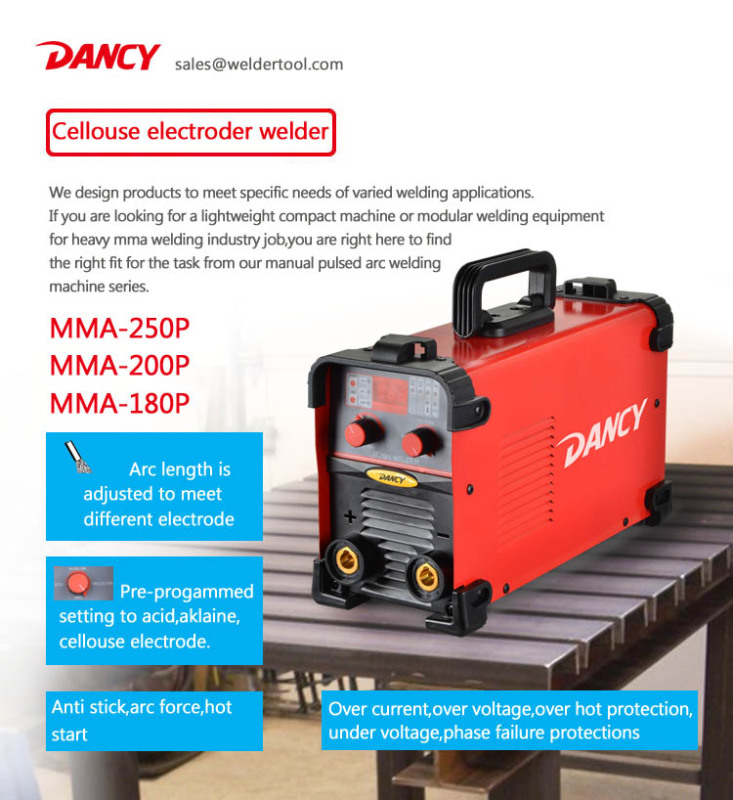

- We design products to meet specific needs of varied welding applications. If you are looking for a lightweight compact machine or modular welding equipment for heavy mma welding industry job,you are right here to find the right fit for the task from our manual pulsed arc welding machine series- MMA P series,with output 160A,180A,200A,250A
- For those who build boats, trailers, tanks or are in the field, the MMA P series inverter is light weight and can be used either manually or utilise the pre-progammed settings that allow very fast set up and perfect operation the welding arc.

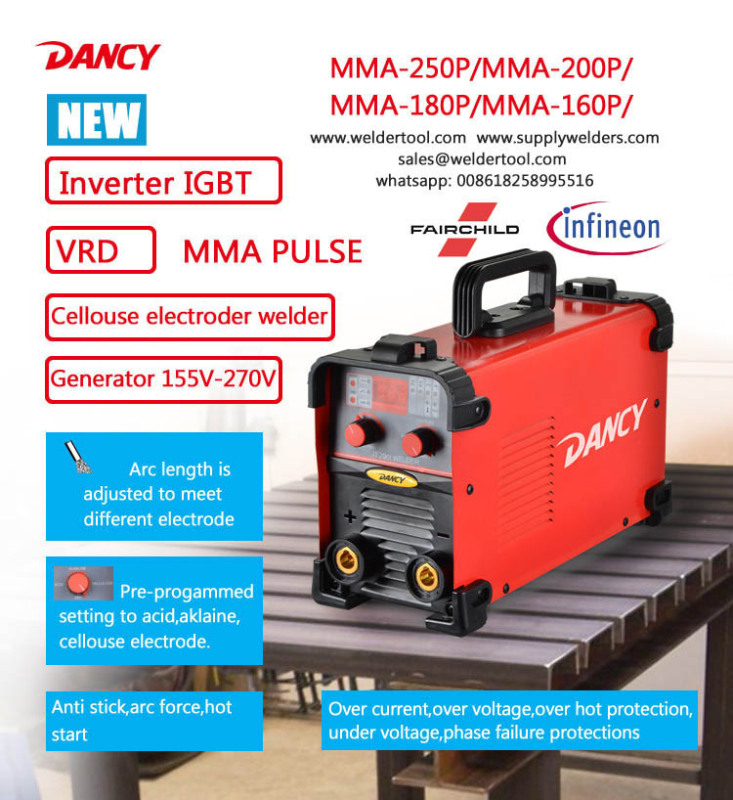

- Range : MMA160P,MMA180P,MMA200P,MMA250P
|

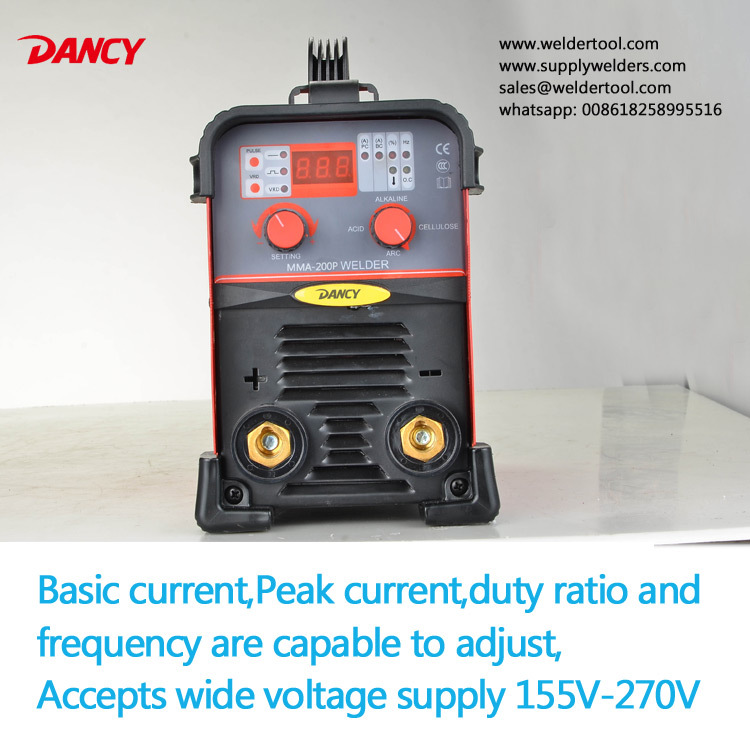

MMA 200P ARC PULSED WELDER
|
|||
|
INPUT
|
VOLTAGE
|
155V~265V workable
|
|
|
POWER CAPACITY
|
5.7KVA
|
||
|
CURRENT
|
|
28A
|
|
|
OUTPUT
|
VOLTAGE
|
|
28.0V
|
|
CURRENT
|
20-200A
|
||
|
POWER FACTOR
|
0.8
|
||
|
DUTY CYCLE
|
60%
|
||
|
INSULATION CLASS
|
IP21S
|
||
|
PROTECTION CLASS
|
F
|
||
|

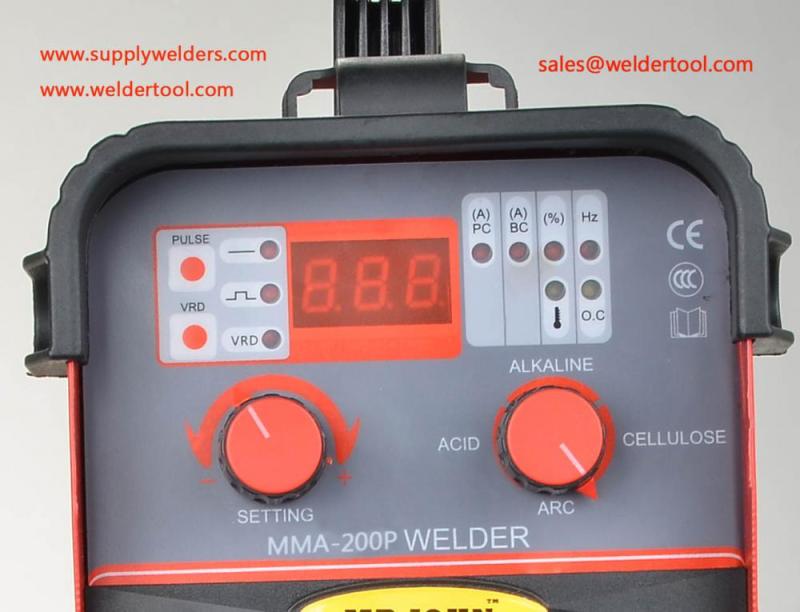

PRE-PROGRAM SET
|
set to acid electrode,alklaine electrode,cellouse electrode, welding all material
|
||
|
Pulsed
|
Yes
|
||
|
Pulse parameters adjusted
|
Yes
|
||
|
Net weight,Machine size
|
365X150X230mm,5.8kgs
|
||
|
Duty-cycle(40 ° C )
|
200A@100%
|
||
|
Protection
|
Over voltage,over heat,over load,Anti stick,Arc force,Hot start
|
||
|
Diameter
|
Electrode: 1.6mm-5.0mm
|
||
|
Inexperienced welder men
|
1. For common welding wihtout special welding quality requirement,please close "PULSE BUTTOM",it is easy to operate as DC output arc welder
2. For speical welding quality,please choose pre-program setting to Acid / cellouse/alklaine electrode to fit different material
|
||
|
Experienced welder men
|
Parameters is manually adjusted according to welder men's experience,to fit all kinds of metal sheet.
|
||
