Ac dc pulse tig welder with foot pdeal control TIG400P inverter tig mma welding machine 380V,3PHASE

Product ID: 67953452

Ac dc pulse tig welder with foot pdeal control TIG400P inverter tig mma welding machine 380V,3PHASE

Contact Now

Description

产品描述

规范

TIG400P TECHNICAL SPECIFICATION

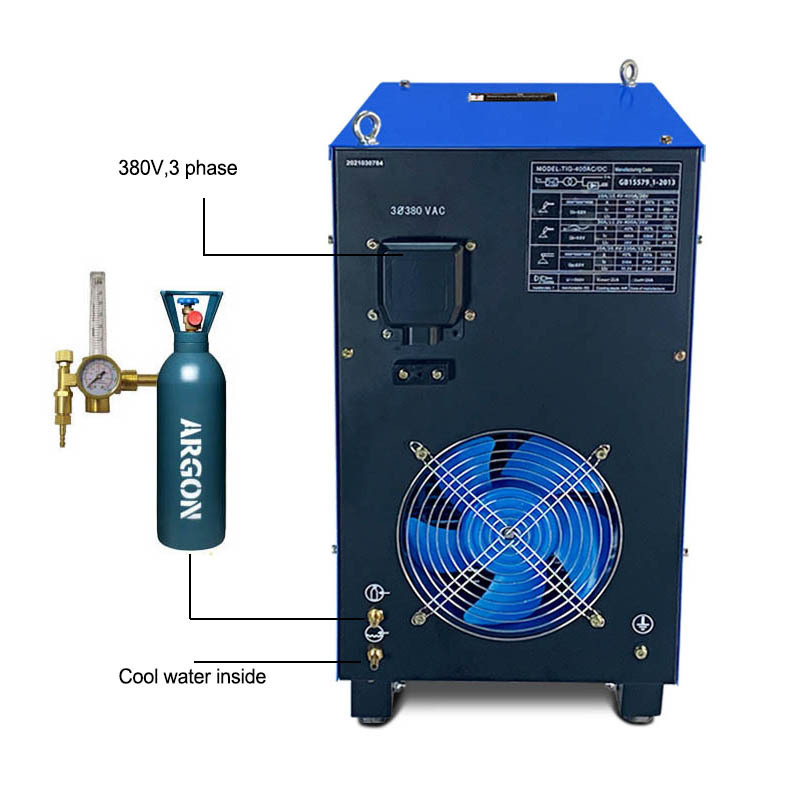

Input voltage	3 phase ,AC380V	Pulse width ratio	0.2-0.8
Rated output current	400A	Down slope time	0.1-5.0S
Rated output voltage	22.0V	Crater arc current	10-400A
Rated input power	13.5KVA	Gas delay	5s-25s
No-load voltage	65V	Clean width	25%-75%
Display Current range	10-400A	AC frequency	50-150HZ
Start arc current	10-400A	Duty cycle	370A@40%@40°C
Up-Slope time	0.1-5S	Efficiency	83%
Pulse current	10-400A	Protection	IP21S

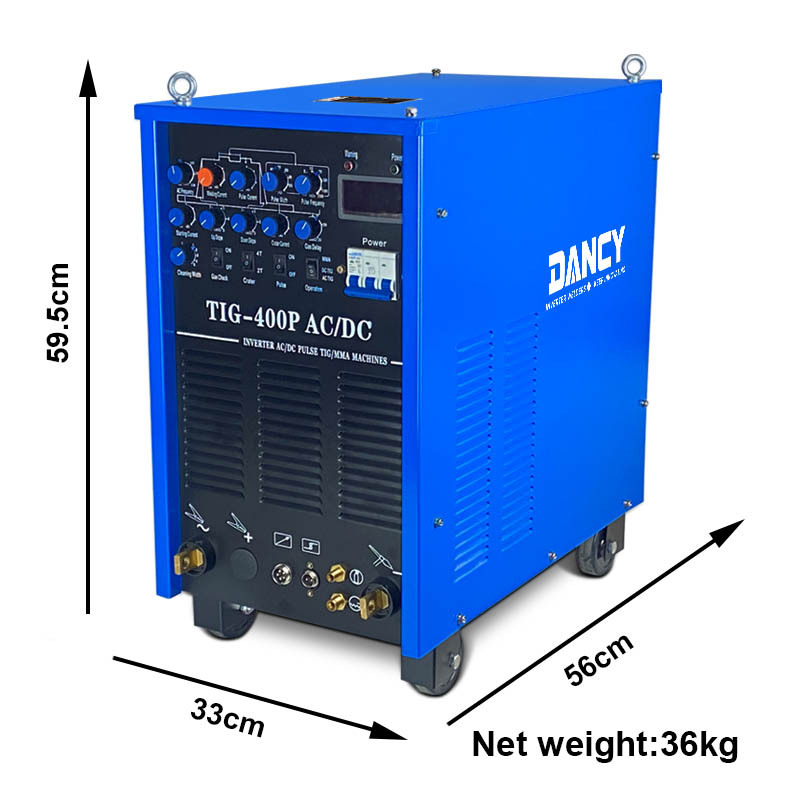

Welding Current	10-400A	Machine size	56X30X45CM
Pulse frequency	0.5-50HZ	Machine Gross Weight	41.0KGS

产品描述

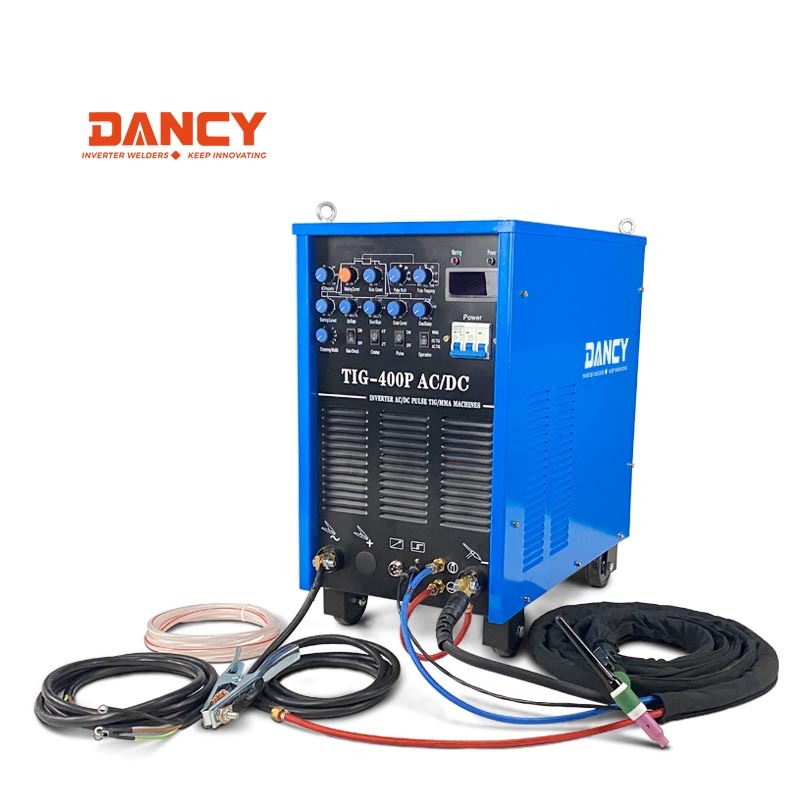

AC DC PULSE TIG WELDER MACHINE TIG400P,FAST SUPPLY FROM STOCK

1.This machine is great for AC/DC TIG, AC/DC Pulsed TIG, MMA.
Suitable For Aluminum and Stainless Steel tig Welding
Suitable for 6010 7018 Electrode manual welding.
2.Updated inverter IGBT module technology.
3. With big advantage of easy operation design of aluminum welding.very easy operation
4. Remote Control for Trigger / Foot-pedal optional.
5. machine fitted with wheel,easy to move.
6.Great performance for aluminum welding.Please check the video
7.Foot pedal is at option.

tig pulse welding machine
