Product ID: 67990498

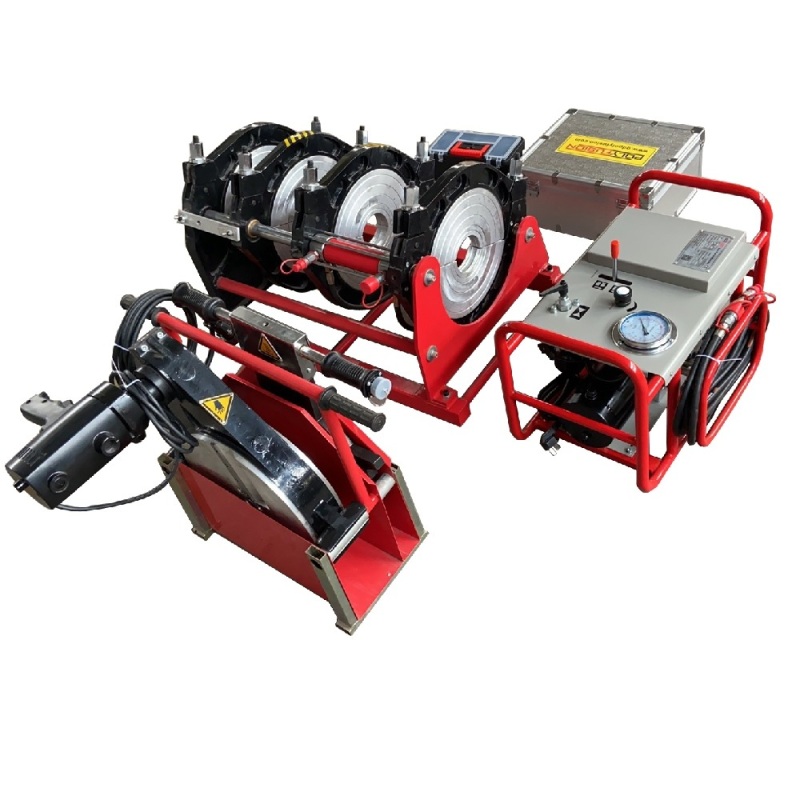

90-315mm Hydraulic Butt Fusion Machine for Plastic PE Pipe Welding
Contact Now
Description
产品描述
Top Quality 90-315mm hydraulic butt fusion machine 90-315mm Welding range plastic pe pipe weld machine
Brief:
Suitable for welding of plastic pipes and fittings made from PE，PP & PVDF.
Be made of Aluminum material, easy to carry and transport.

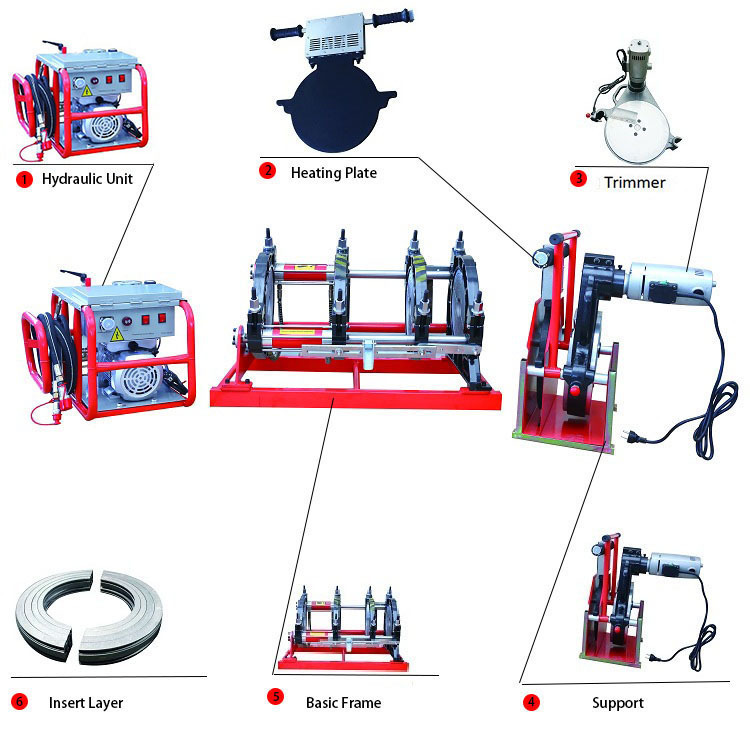

Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Be made of Aluminum material, easy to carry and transport.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:
1.Removable PTFE coated heating plate with separate temperature control system.
2. Electric planning tool with reversible double cutting edge blades.
3. Hydraulic unit provides welding machine with compressing power.
4. Be made of Aluminum material, easy to carry and transport.
5.Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the time and temperature.
2. Electric planning tool with reversible double cutting edge blades.
3. Hydraulic unit provides welding machine with compressing power.
4. Be made of Aluminum material, easy to carry and transport.
5.Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the time and temperature.
|
Model
|
|
PF315
|
|
|
|||
|
Welding Range
|
|
90 110 125 140 160 180 200 225 250 280 315 315MM
|
|
|
|||
|
Heating Plate Max.Temperature
|
|
270℃
|
|
|
|||
|
Temperature Deviation in Surface
|
|
≤5℃
|
|
|
|||
|
Working Voltage
|
|
220V,50/60HZ
|
|
|
|||
|
Total Power
|
|
5.35KW
|
|
|
|||
|
Heating Plate Power
|
|
3.6KW
|
|
|
|||
|
Planning Tool Power
|
|
1.0KW
|
|
|
|||
|
Hydraulic Unit Power
|
|
0.75KW
|
|
|
|||
|
Pressure Adjustable Ranges
|
|
0-6.3MPA
|
|
|
|||
|
Weight
|
|
230KG
|
|
|
|||
|
Package
|
|
2 WOODEN BOXES/1CBM
|
|
|
|||
|
Data Logger Port
|
|
OPTIONAL
|
|
|
|||

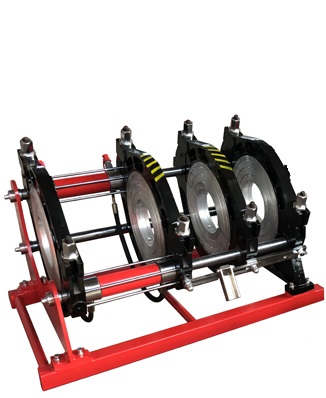

Basic Frame
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and
supply the necessary movement for the welding process.

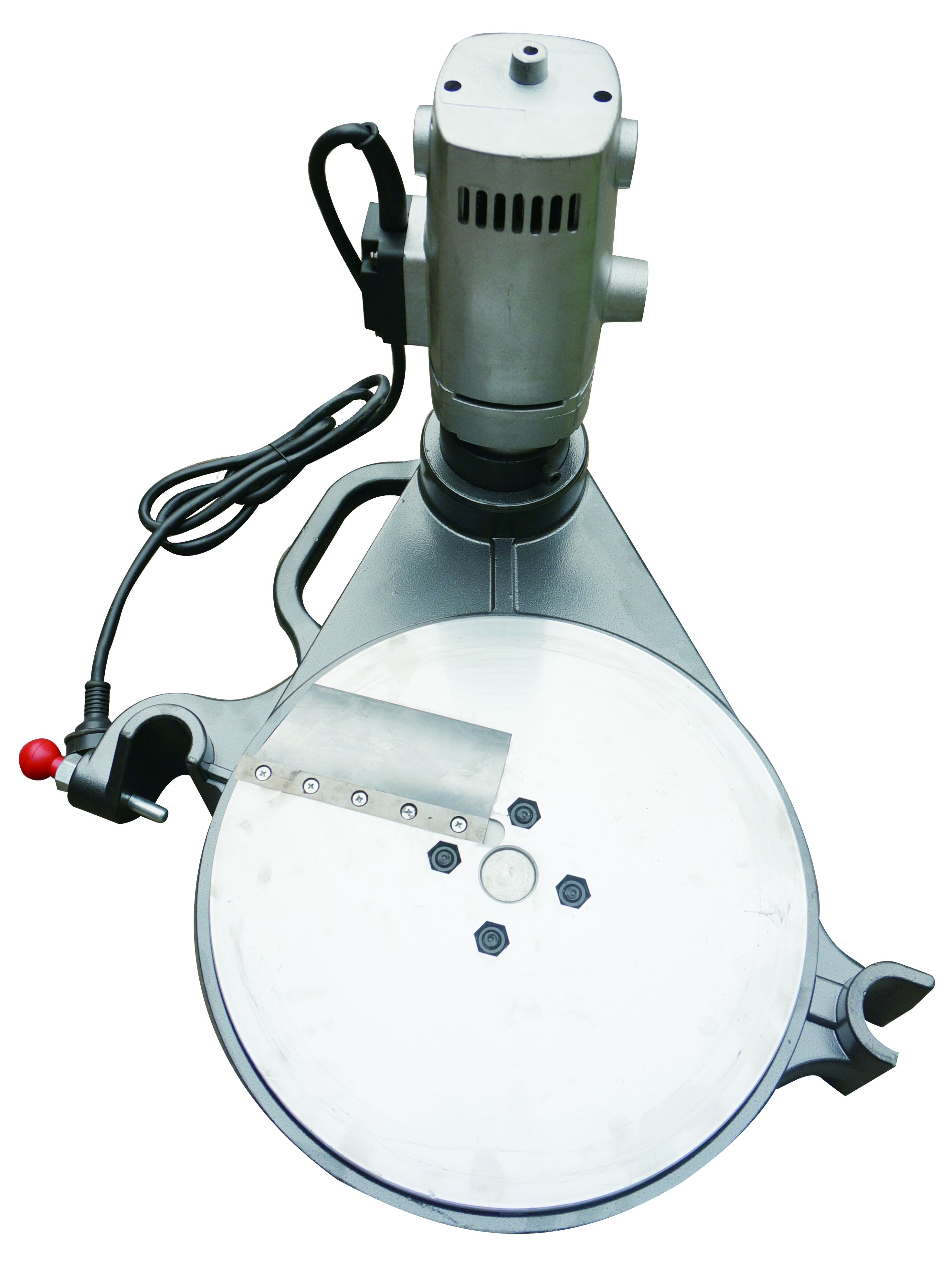

Planning Tool
The planning Tool is the tool which clean and smooth the both ends of the pipes before the heating process .
There is an emergency stop switch on the planning tool. If a wrong operation occurs during construction, the emergency stop switch can be directly used to stop the operation.
PF355 butt welding machine is designed for self aligning facer always produces parallel pipe faces.
There is an emergency stop switch on the planning tool. If a wrong operation occurs during construction, the emergency stop switch can be directly used to stop the operation.
PF355 butt welding machine is designed for self aligning facer always produces parallel pipe faces.
