Fusion Welding Polyethylene Pipe Equipments
Contact Now
Description
Product description
Fusion Welding Polyethylene Pipe Equipments

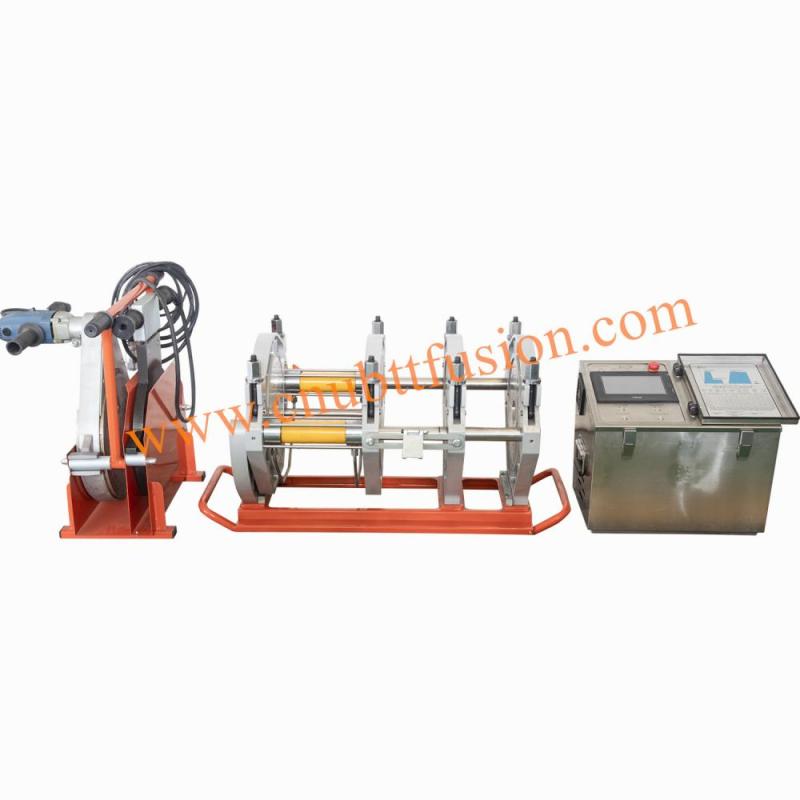

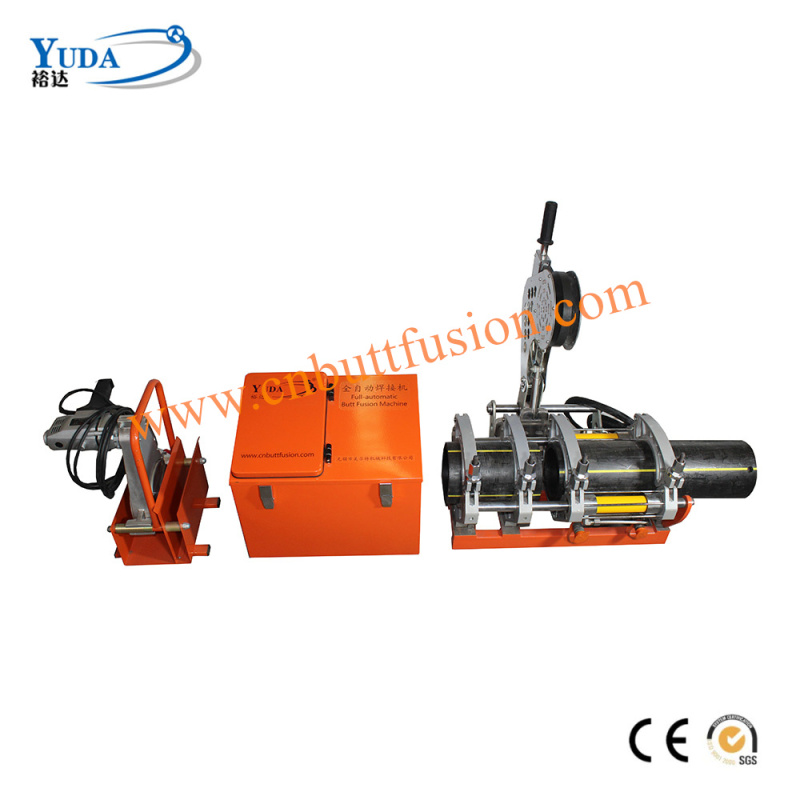

CNC hydraulically operated butt-welding machine, suitable for PE and PP pipes and fittings from 90 to 355mm OD at DVS2207 and ISO21307-SLP Low Force specifications. Excellent design and construction provides a premium machine for welding both on the worksite and in the factory. Integrated CNC control ensures correct welding procedures including temperature, time and pressure functions. The use of high quality pressure-cast Aluminium castings allows for lower weight without compromising strength and performance, while providing extra strength when welding out-of-round pipe. Welding can be carried out between clamps 3 & 4 for tees, bends and manifold work.
1.Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.
2. Consists of basic frame,hydraulic unit with touch screen and CNC control system, planing tool, heating plate, basket & optional parts.
3. RDH-A series uses hand-held heating plate strucutre, RDH-AR uses hydraulic heating plate system, Fast change-up time
4. Automatic Welding: the equipment automatically measures the dynamic and static drag pressure, automatically check the pipes clamped tightly or not, automatically compensate pressure, and automatically control temperature and welding time according to the process requirements.
5.Statisctics printing, recording function and USB port available.
Pre-installed welding standard such as CTSG, ISO, DVS, GIS, etc and multilingual languages.
6. Data can be attached to the longitude and latitude coordinates of the pipe joints (optional), and GPS is required.
7. The equipment has the function of establishing welder's library for the welder who has been carefully trained, strictly examined and qualified, and has strengthened the management of the personnel, equipment and construction quality.
8. The equipment increases internet CLOUD system and mobile terminal functions. The management company can constantly check the position of the welding machine, the progress of the project, the data of each weld etc important information through the computer and the mobile phone. It is convenient to manage and save the human resources.
Optional Parts:
* Aluminum or Steel stub end device for short flange
* Wheeled Trolley
* Narrow Clamps
2. Consists of basic frame,hydraulic unit with touch screen and CNC control system, planing tool, heating plate, basket & optional parts.
3. RDH-A series uses hand-held heating plate strucutre, RDH-AR uses hydraulic heating plate system, Fast change-up time
4. Automatic Welding: the equipment automatically measures the dynamic and static drag pressure, automatically check the pipes clamped tightly or not, automatically compensate pressure, and automatically control temperature and welding time according to the process requirements.
5.Statisctics printing, recording function and USB port available.
Pre-installed welding standard such as CTSG, ISO, DVS, GIS, etc and multilingual languages.
6. Data can be attached to the longitude and latitude coordinates of the pipe joints (optional), and GPS is required.
7. The equipment has the function of establishing welder's library for the welder who has been carefully trained, strictly examined and qualified, and has strengthened the management of the personnel, equipment and construction quality.
8. The equipment increases internet CLOUD system and mobile terminal functions. The management company can constantly check the position of the welding machine, the progress of the project, the data of each weld etc important information through the computer and the mobile phone. It is convenient to manage and save the human resources.
Optional Parts:
* Aluminum or Steel stub end device for short flange
* Wheeled Trolley
* Narrow Clamps
