Electrofusion Welding For HDPE Fittings
Description
产品描述
HDPE 配件的电熔焊接
EF800 Electro Fusion Equipment is used for HDPE/PP/PVDF Electrofusion Fittings. The electrofusion welding procedure is different from the butt fusion procedures. 15Kw Electrofusion Welder is easily operated electrofusion welding unit, ideally designed to join PE pressure electrofusion fittings from 20mm to 800mm welding at a constant voltage. It is able to weld fittings in both manual and bar code mode, Once scanner scan the electrofusion fitting bar code, electrofusion machine can form the welding parameters and then welding in automatic mode. For electro fusion welding, the process is a heating wire permanently molded into the fitting gets heated by current at a low voltage. The surrounding material around the wire gets melted and expands due to the warming. The melt starts closing the gap between pipe and fitting, leading to a heat transition to the pipe which also gets heated and melts in the welding zone. The pipe material also expands. The increasing material expansion between pipe and fitting, which is hindered by the cold zones outside the welding zone, leads to a build up a welding pressure between pipe and fitting and a homogeneous welding connection emerges.
1. High brightness liquid crystal display, Chinese or English language optional.
2. Wide power suppler and voltage input, suitable for on-the-spot electric network level
3. Automatic temperature compensation,and not influenced by ambient temperature while welding.
4. High precision control to ensure welding quality
5. With 6 phases programmable welding functions, suitable for various welding requirement.
6. Menu display, easy operation.
7. Manual input or choose optional scanner to scan bar code as input way

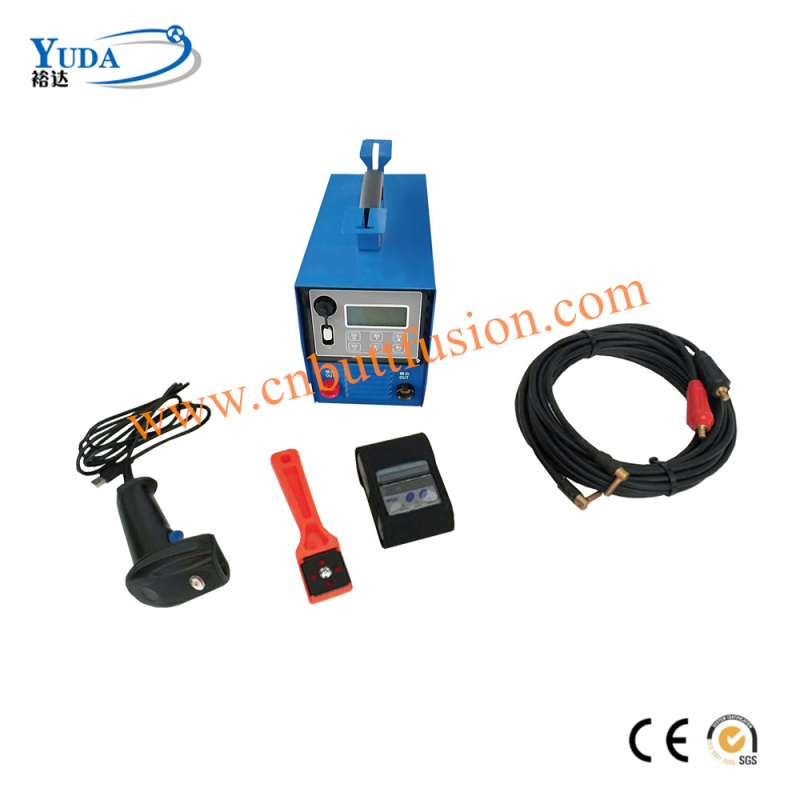

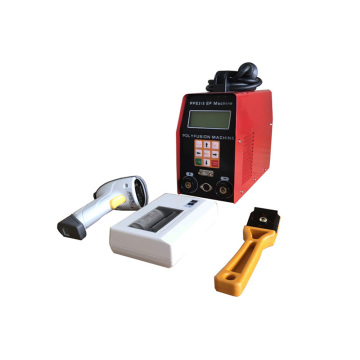

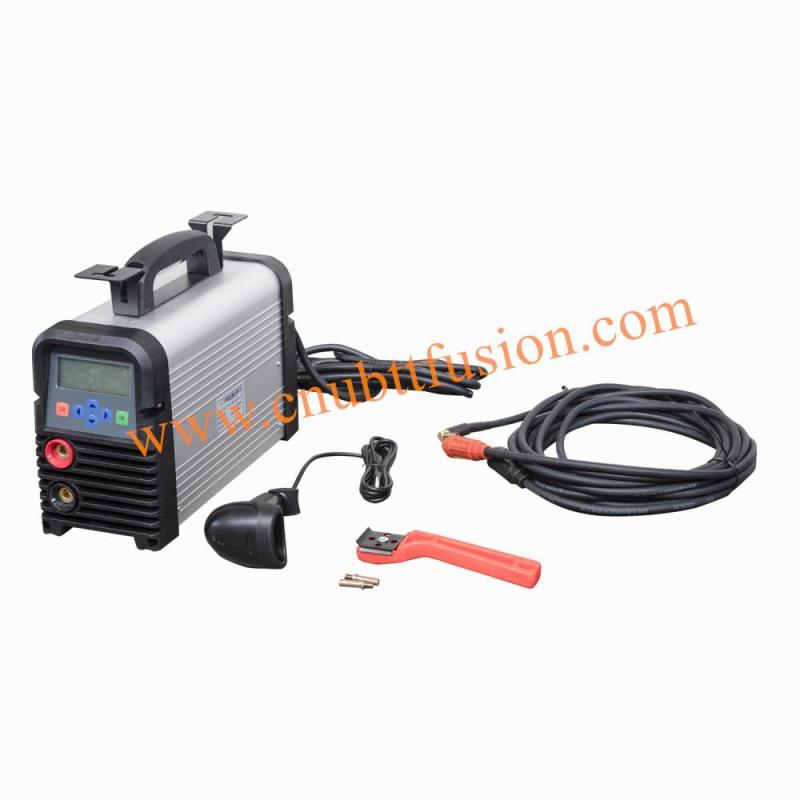

HDPE Pipe Electro Fusion Welders Photos
| Model | EF200 | EF315 | EF500 | EF800 |
| Input voltage | AC 220±20%V | AC 220±20%V | AC 380±20%V | AC 380±20%V |
| Input frequency | 50HZ | 50HZ | 50HZ | 50HZ |
| Output voltage | DC 0-55V random regulation | DC 0-75V random regulation | DC 0-170V random regulation | DC 0-210V random regulation |
| Output Current | 45A | 55A | 80A | 80A |
| Output power | 2.2KW | 3.5KW | 12KW | 15KW |
| Ambient Temperature | -15°~45° | -15°~45° | -15°~45° | -15°~45° |
| Control mode | Constant Voltage/ Constant Current | |||
| Store Data Number | 500 Times | 500 Times | 500 Times | 500 Times |
| Constant Accuracy | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% |
| Duty Cycle | 60% | 60% | 60% | 60% |
| Data output port | USB Port & Scanner | USB Port & Scanner | USB Port & Scanner | USB Port & Scanner |
| 重量 | 10KGS | 12KGS | 36KGS | 36KGS |
| Packing Size | 352mm×188mm×341mm | 352mm×188mm×341mm | 480mm×273mm×440mm | 480mm×273mm×440mm |
