300W/500W YAG metal stainless steel aluminum AD words channel letter laser welding machine price for sale
Description
产品描述

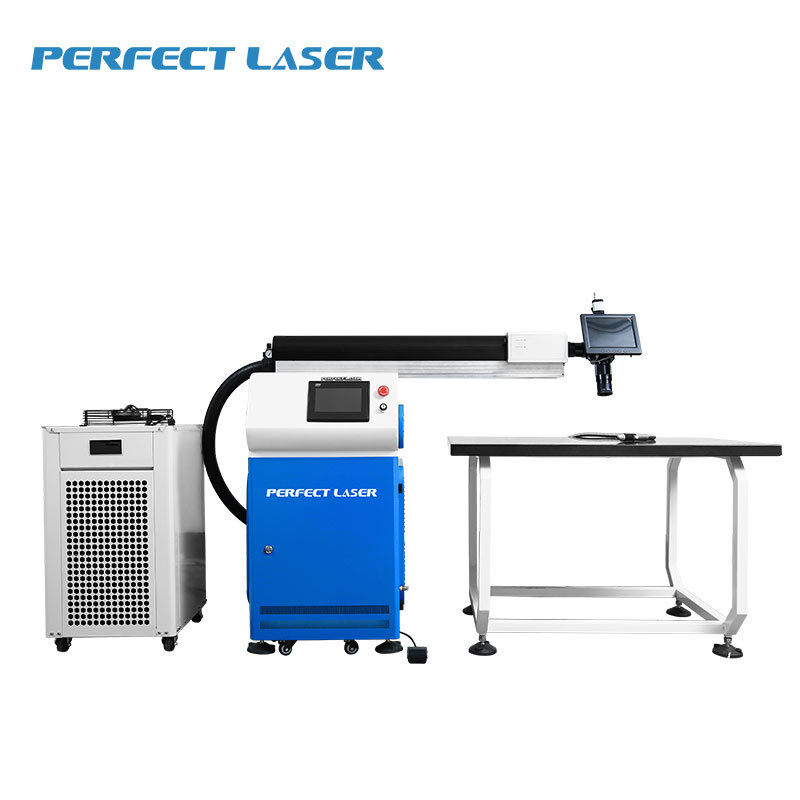

300W/500W YAG metal stainless steel aluminum AD words channel letter laser welding machine price for sale

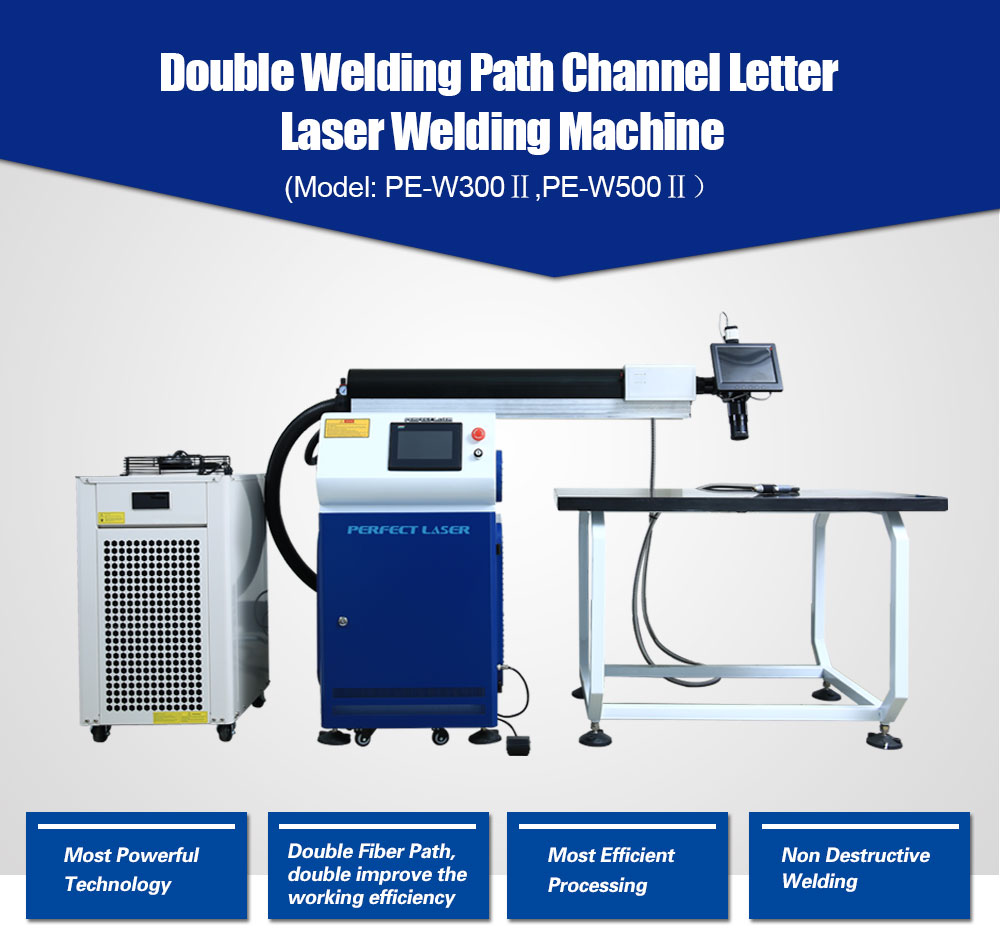

(Model : PE-W300II & PE-W500II)
>>>Application
Hand-held channel letter laser welding machine passes high-energy laser light beam through soft fiber cable to one small laser head (or more laser heads at the same time ) so that the laser can works on some parts hardly to reach.
Hand-held laser head is very flexible to use and makes multi-parts welding available.
>>>Features letter hand held lase welder
1.Red dot fast positioning with CCD monitor for detail observation
2.Work table adjustable for different size or weight of metal letters.
3.Fast welding process; Exclusive or customized fixing jig device; Fast focusing and positioning without a CCD or microscope.
4.Less heat deformation and smaller heat affected area.
5.A perfect replacement of traditional soldering and TIG, especially when welding work piece smaller than 5cm or bigger than 100cm.
6.Able to process profiled piece or micro piece.
7.Low noise and pollution-free.
8.With the help of ultrafine positioning rod, you don’t need to adjust light spot at smallest corner
9.3 to 5 meters soft fiber cable will pass high-energy laser to every complex or micro or oversized work piece.
Manual laser trigger and foot-paddle laser trigger per user’s requirement.
|
Model No.: |
PE-FW300(II) |
PE-FW500(II) |
|
Machinery Part |
Fiber transmission |
|
|
Power supply |
220V±10%/50/60Hz |
|
|
Laser type |
Nd:YAG pulsed with xenon lamp |
|
|
Adjustment range of light spot |
0.1~0.3mm |
|
|
Size of light spot |
0.2-3.0mm |
|
|
Laser wavelength |
1064nm |
|
|
Pulse width |
≤15ms |
|
|
Max Laser Output Power |
300w |
500w |
|
Max laser power |
300W |
|
|
Pulse frequency |
≤30Hz |
|
|
Laser output focal |
180mm |
|
|
Laser cooling |
Water cooling |
|
|
Observation system |
CCD (or microscope for option) |
|
|
Cable length |
5M(standard) |
|
Details pictires of Letter Laser Welding Machine
