Pyramid Street Pole Bending Machine
Description
Product description
LIGHT POLE STRAIGHTENING MACHINE
1、 Light Pole Straightening Machine Overview

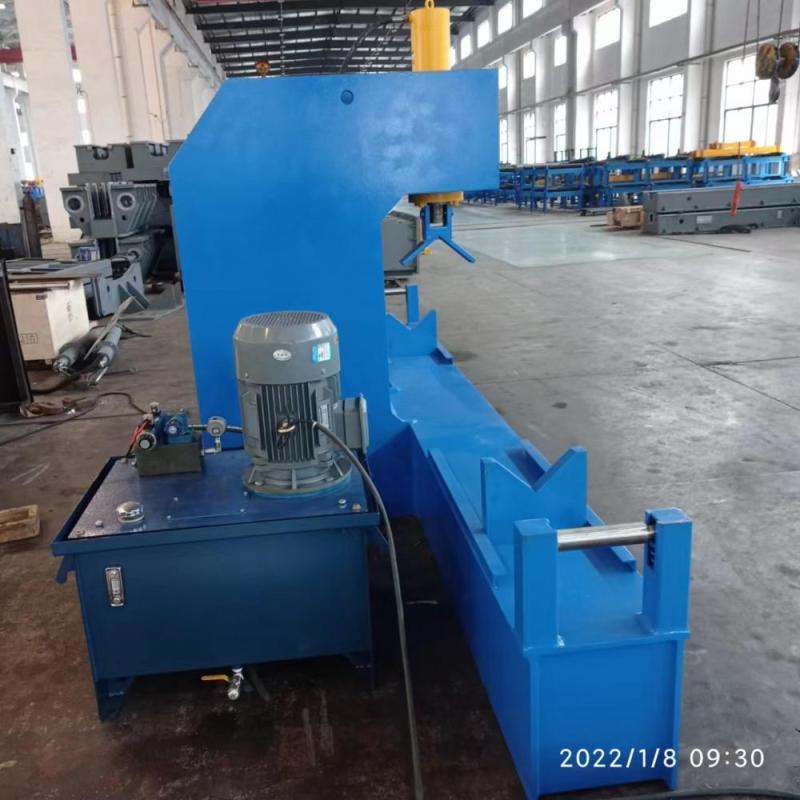

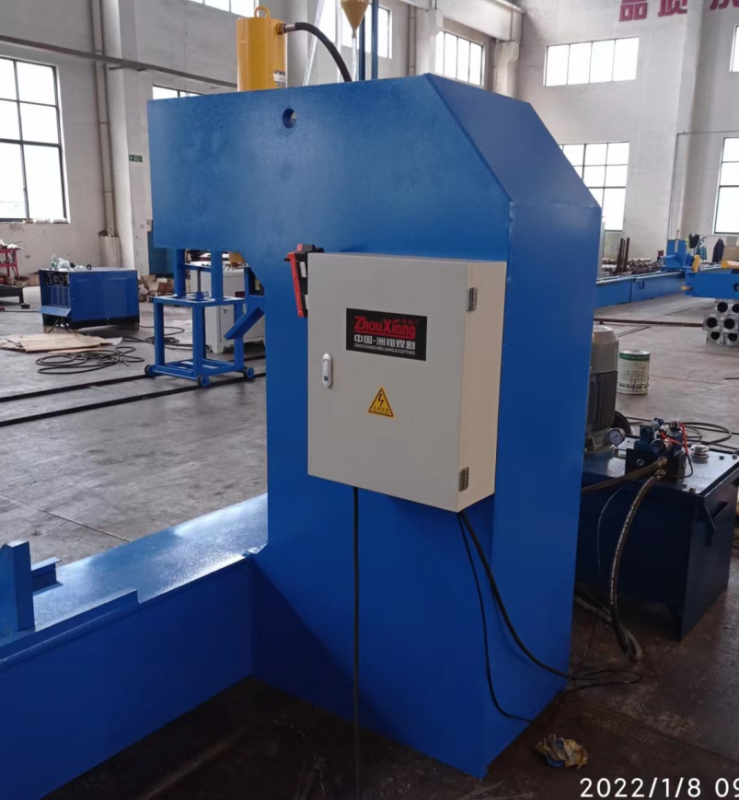

The light pole bending deformation can be existed because of large amount welding heat. We may straighten the pole by through this special press machine. This machine is consists of rugged and high strength base and hydraulic system.The machine body was welded by thick plate Q345A ,so it can bear high compressive stress. It is easy that controlling the whole process .The special produced cylinder piston bar have a circle head which contact to pole.
2、 Light Pole Straightening Machine Technical Parameter
* Model: LPHS450-14000 semi-automatic welding machine* Workable diameter : 60-450 mm
* Tube wall thickness : 10 mm
* Table length : 3000 mm
* Rated pressure : 100 Tons
* Throat depth : 270 mm
* Stroke of slide : 150 mm
* Max opening height : 610 mm
* Speed of slide Working : 4.5 mm/s * Motor power : 11 Kw
3、Light Pole Straightening Machine Details

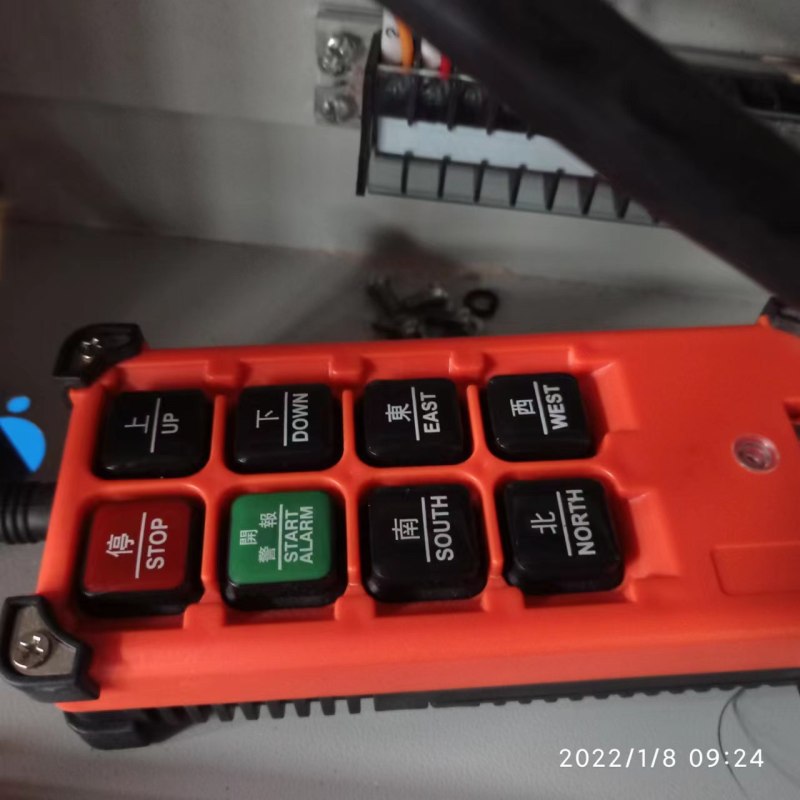

The wireless remote control box operates from a distance to ensure the safety of workers
