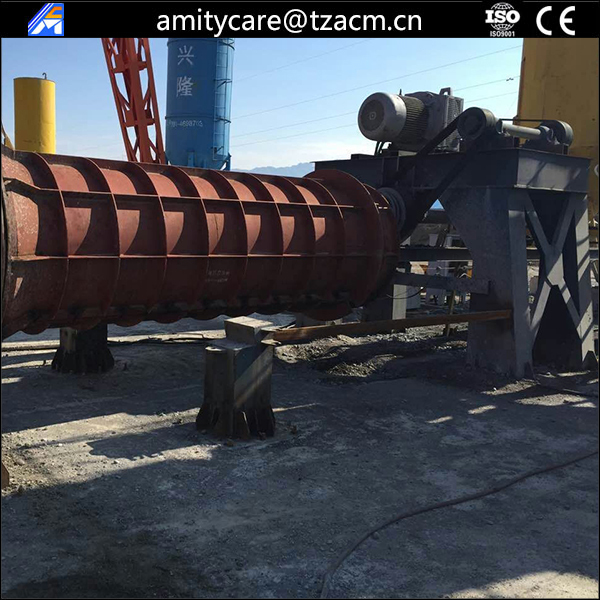

Centrifugal Spinning drain steel concrete pipe machine
Contact Now
Description
Product description

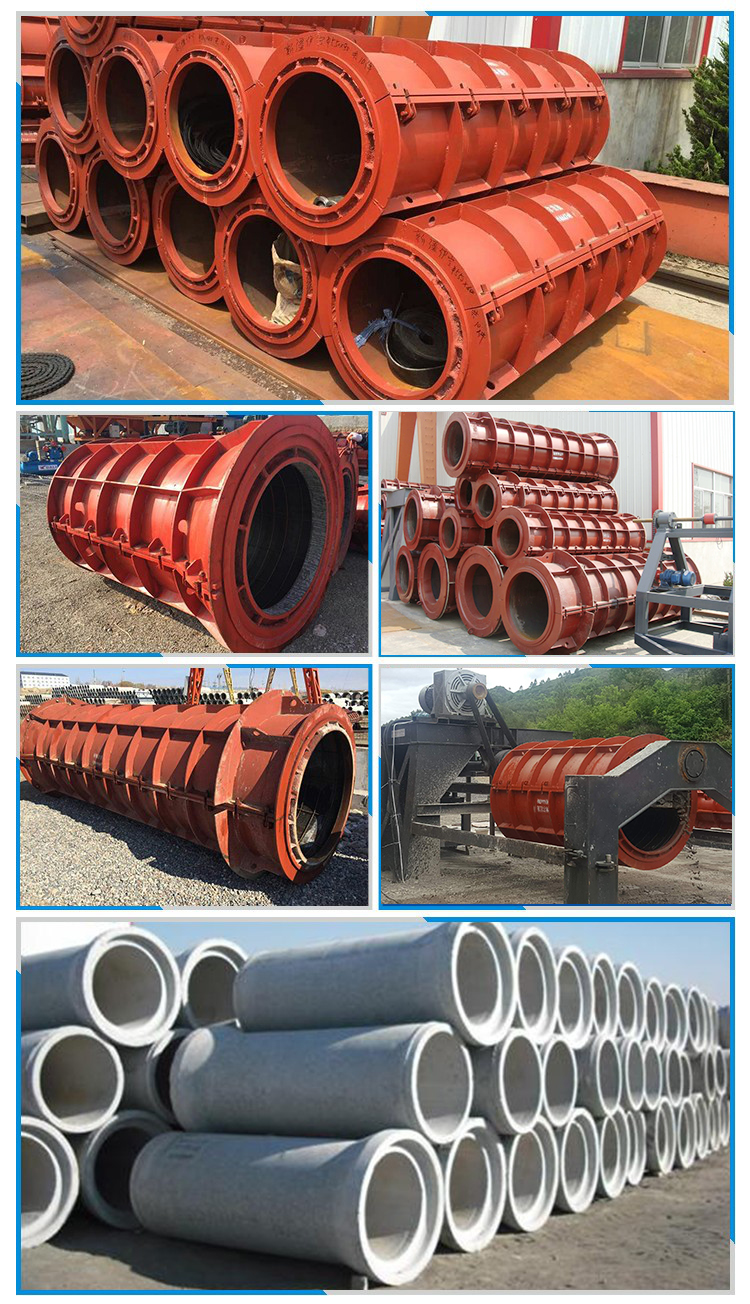

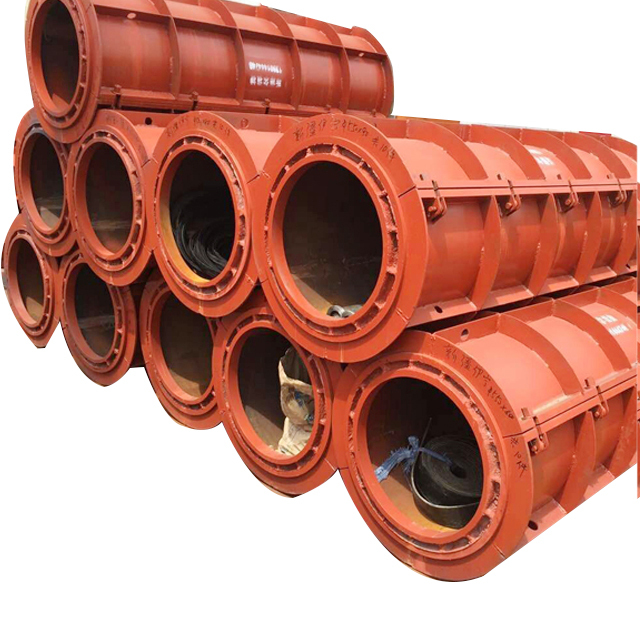

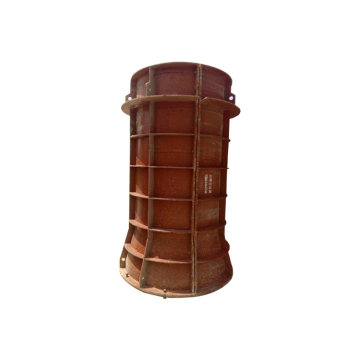

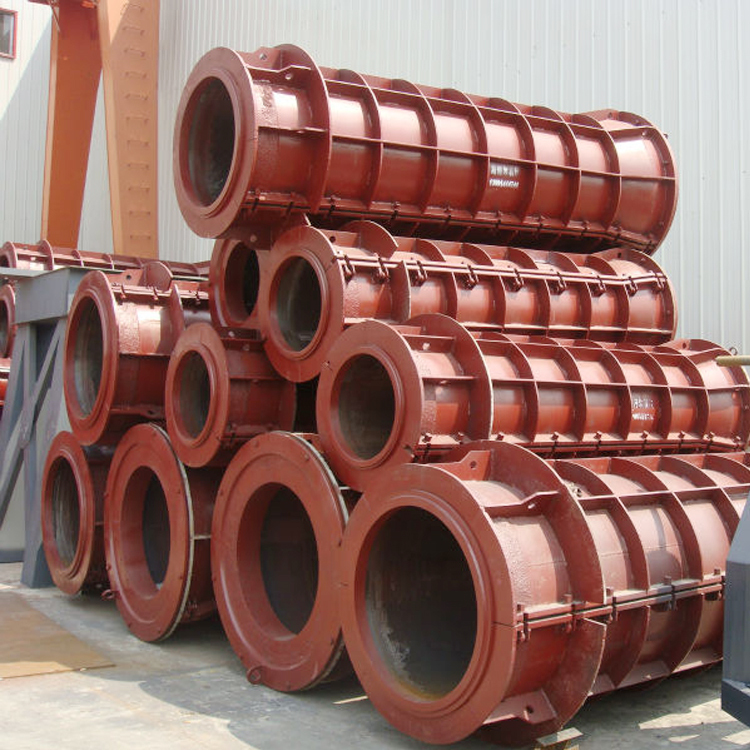

Concrete pipe mould professional manufacturer is the production of concrete and reinforced concrete drain the necessary machines, mold has a reasonable structure, easy to use, have enough strength and stiffness, safe and reliable.The mould adopts hanging roller tube are: PH tube steel, F steel socket pipe jacking steel die, tongue-and-groove Danish pipe steel, socket, tongue-and-groove small flat steel, etc.
| main parameters | PGHJ /CPGHJ |
| Diameter of pipe | 300~3000mm |
| Length | 1000~4000mm |
| Diameter of longitudinal bar | 4~6m,8~12mm |
| Spiral wire | 3~6mm |
| PC wire | 12,18,24,32,36,48 |
| Pitch | 40~160mm adjust |
| Welding way | Single round or nugget |
| Power | 75-200KVA |
| Speed | 3-10min/pcs |
| Code | 480,812,1216,1620,2024 |
| Weight | 5~15T |

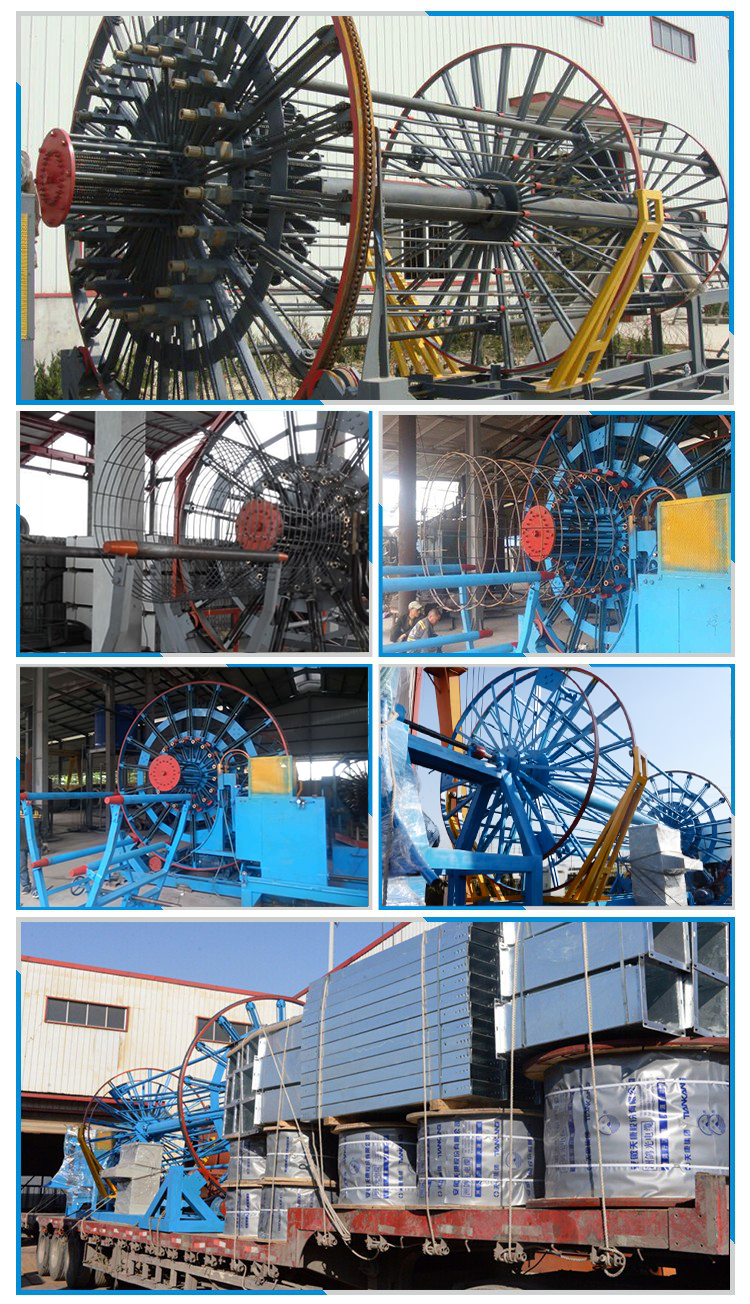

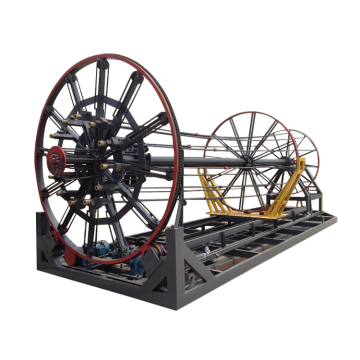

Spun concrete pipe cage welding machine adopt foreign equipment of advanced structure, electrical automation control action, full digital control circuit welding, using push bar, fully automatic digital continuous variable diameter, frequency conversion speed synchronization, ring stiffened and pitch of arbitrary adjustable.
