80 Ton Self-aligned Tank Rotator Driving by 4Kw
Description
Product description

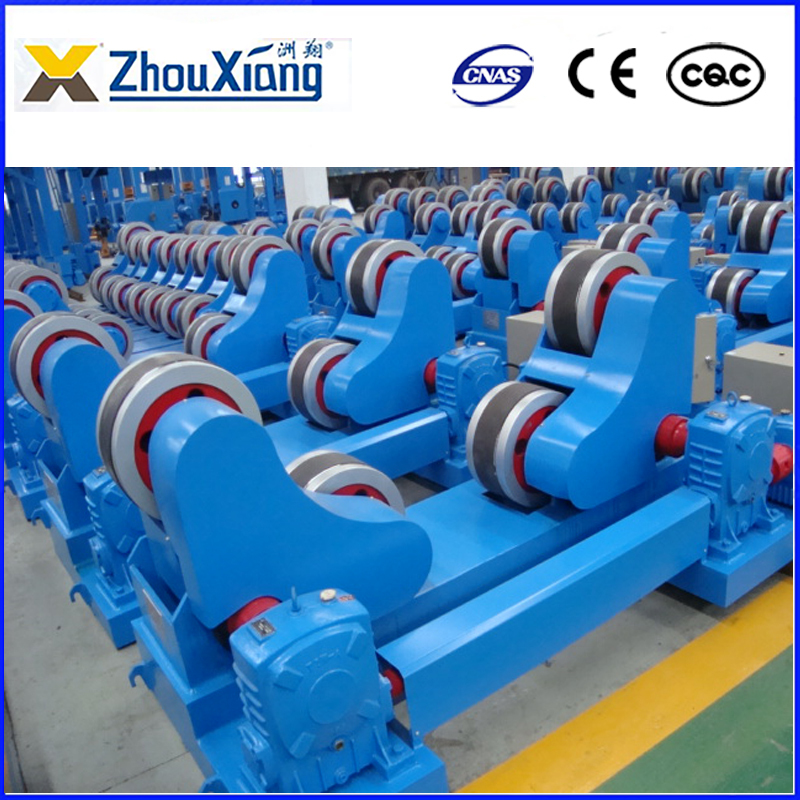

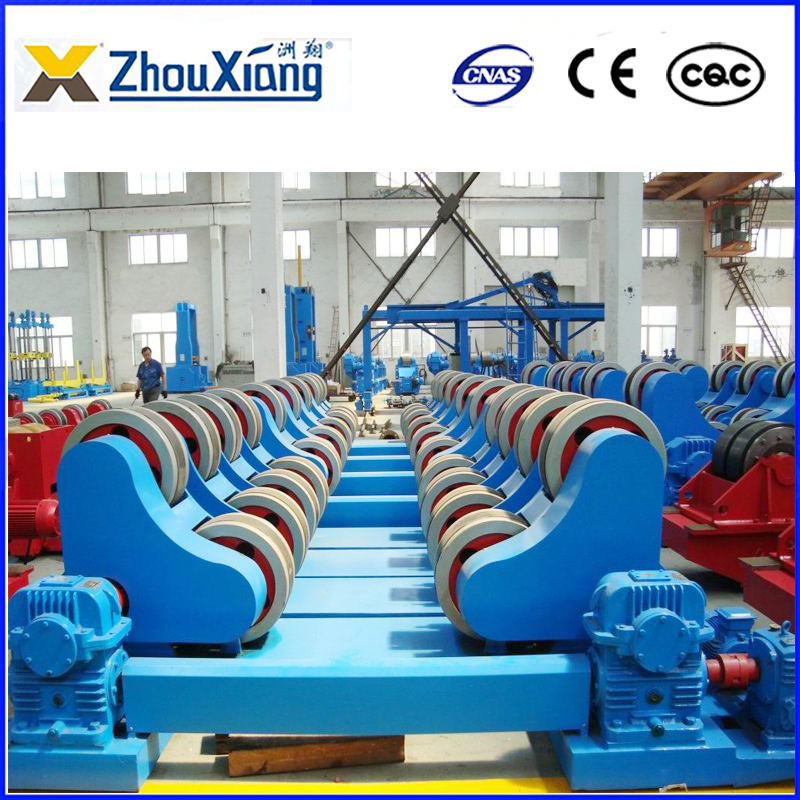

Self-aligned Welding Rotator
Self-aligned Welding Rotator Introduction:
The self-aligned turning roll is designed to aid the welding of tanks. By using independent drive and idler units, tanks of varying lengths can be placed on the turning rolls supported on the turning rolls wheels. The power welding rotator and the passive welding rotator can be moved on the track, and the distance between them can be adjusted to weld cylinders of different lengths. The wheels of self aligned welding rotator can be opened on the base frame to accommodate different vessel diameters. Our heavy duty, built to last self aligned welding rotators are designed and manufactured to tolerate the hardest, hard-wearing and unrelenting workload environments.
Self-aligned Welding Rotator Technical Parameters
Model | Load & Rotation Capacity (Ton) | Tanks Diameter Range (mm) | Rotation Speed (mm/min) | Driven Motor Power (Kw) | Frame Center Distance | Wheels Diameter & Width | Roll Dimensions (mm) | |
C (mm) | ΦW * Wr (mm) | Lp * Wp * H | Li * Wi * H | |||||
GLHZ-5 | 5 | 250-2300 | 100-1000 Speed adjusted by VFD | 0.75 | 940 | 250*140 | 1560*695*692 | 1240*380*692 |
GLHZ-10 | 10 | 320-2800 | 1.5 | 1100 | 300*150 | 1800*705*805 | 1440*400*805 | |
GLHZ-20 | 20 | 500-3500 | 2.2 | 1400 | 350*180 | 2180*910*895 | 1780*480*895 | |
GLHZ-40 | 40 | 600-4200 | 3 | 1600 | 400*200 | 2448*1000*1018 | 2040*530*1018 | |
GLHZ-60 | 60 | 750-4800 | 4 | 1800 | 450*220 | 2770*1100*1095 | 2340*585*1095 | |
GLHZ-80 | 80 | 850-5000 | 4 | 2000 | 500*240 | 2975*1165*1198 | 2540*620*1198 | |
GLHZ-100 | 100 | 1000-5500 | 5.5 | 2200 | 500*280 | 3380*1405*1320 | 2800*730*1320 | |
GLHZ-150 | 150 | 1100-6000 | 7.5 | 2500 | 600*280 | 3870*1600*1550 | 3240*800*1550 | |
GLHZ-250 | 250 | 1200-7000 | 2*5.5 | 2800 | 700*300 | 4468*1620*1785 | 3620*860*1785 | |
GLHZ-500 | 500 | 1800-8000 | 2*7.5 | 3500 | 850*350 | 5562*1784*2062 | 4420*950*2062 | |
Model | Load & Rotation Capacity (IBS) | Tanks Diameter Range (in) | Rotation Speed (mm/min) | Driven Motor Power (HP) | Frame Center Distance | Wheels Diameter & Width | Roll Dimensions (mm) | |
C (mm) | ΦW * Wr (mm) | Lp * Wp * H | Li * Wi * H | |||||
GLHZ-5 | 11,000 | 9 27/32--90 35/64 | 100-1000 Speed adjusted by VFD | 1.0 | 940 | 250*140 | 1560*695*692 | 1240*380*692 |
GLHZ-10 | 22,000 | 12 19/32--110 15/64 | 2.0 | 1100 | 300*150 | 1800*705*805 | 1440*400*805 | |
GLHZ-20 | 44,000 | 19 11/16--137 51/64 | 3.0 | 1400 | 350*180 | 2180*910*895 | 1780*480*895 | |
GLHZ-40 | 88,000 | 23 5/8--165 23/64 | 4.0 | 1600 | 400*200 | 2448*1000*1018 | 2040*530*1018 | |
GLHZ-60 | 132,000 | 29 1/2--188 31/32 | 5.4 | 1800 | 450*220 | 2770*1100*1095 | 2340*585*1095 | |
GLHZ-80 | 176,000 | 33 15/32--196 27/32 | 5.4 | 2000 | 500*240 | 2975*1165*1198 | 2540*620*1198 | |
GLHZ-100 | 220,000 | 39 3/8--216 17/32 | 7.4 | 2200 | 500*280 | 3380*1405*1320 | 2800*730*1320 | |
GLHZ-150 | 330,000 | 43 5/16--236 7/32 | 10.0 | 2500 | 600*280 | 3870*1600*1550 | 3240*800*1550 | |
GLHZ-250 | 550,000 | 47 1/4 --275 19/32 | 15.0 | 2800 | 700*300 | 4468*1620*1785 | 3620*860*1785 | |
GLHZ-500 | 1,100,000 | 59 1/16--314 31/32 | ||||||
Self-aligned Welding Rotator Details:

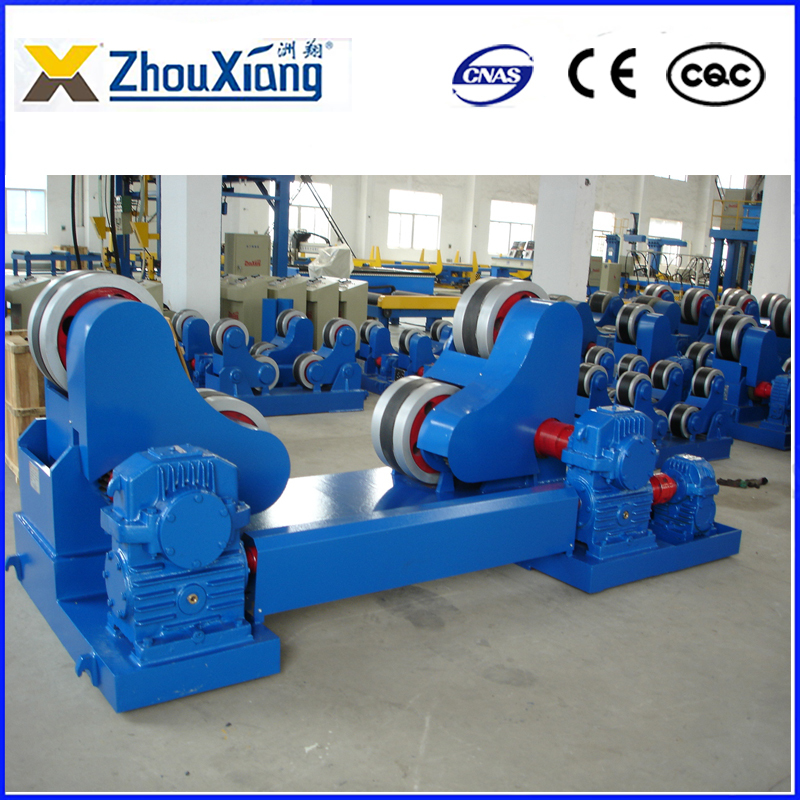

1：The self-aligned welding rotator is driven by one AC variable frequency motor to drive two gear reducers to rotate at the same time. Compared with ordinary motors, variable frequency motor has lower noise and smaller electromagnetic vibration.
