      plasma cut cnc/cnc plasma cutting machine 1325 1530 2030 2060/plasma cutter

      Contact Now

      Description

      Product description

      Product Description

      plasma cut cnc/cnc plasma cutting machine 1325 1530 2030 2060/plasma cutter

      ( Mold: PE-CUT-A3 )

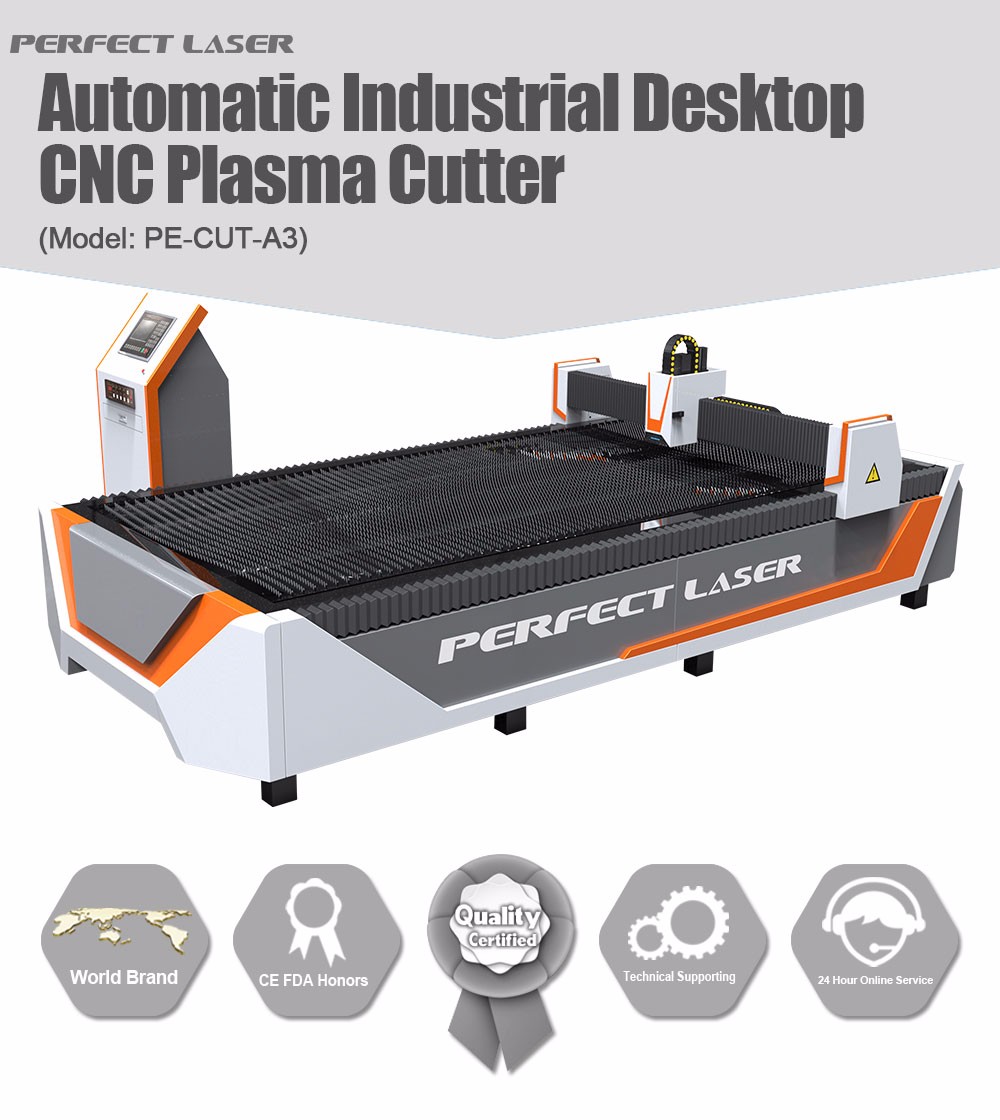

      Automatic Industrial Desktop cnc plasma cutter PE-CUT-A3 adopts heavy machine tool design , it combined with the high speed cnc plasma cutting and the need for plate processing heavy machine stability. Berefore, this best

      plasma cutter has good rigidity and long stability as well as a significant advantage in thick steel and aluminum materials in cutting 1-20 mm. At the same time, the plasma cutters for sale is equipped with automatic height adjustment system, it can improve work efficiency and save costs

      SPECIFICATIONS FOR Plasma Cutting Machine
      Model
      PE-CUT-A1 Light Structure
      PE-CUT-A2 Heavy Loading Structure
      PE-CUT-A3 Heavy Loading Structure
      Configuration
      Standard configuration
      High configuration
      Standard configuration
      High
      configuration
      Standard configuration
      High
      configuration
      Application
      Advertising industry
      Heavy industrial type, including control
      cabinet, thicken machine body
      Control Method
      Use extra PC to control
      Industrial computer included
      Industrial computer included
      Cutting Area
      1.3*1.25m
      1.5*3m
      1.5*3m
      1.5*3m
      Motor
      Step motor
      Step motor
      Step motor
      Panasonic Servo Motor
      Control System
      Nc Studio
      Nc Studio
      Start
      Start
      Nc Studio
      Cutting thickness
      0.3-3mm
      0.3-10mm
      0.3-50mm
      Auto-Adjusting Height System
      /
      /
      HYD Auto-Adjusting height system
      Transmission Mode
      Industrial gear transmission
      Plasma Current
      60A
      Connecting Way
      USB
      Cooling method
      With water pump and tank provide circulating water cooling
      Rail guide
      Precision work round
      Transmit way
      Taiwan imported ball screw
      Remark
      The cutting thickness depends on the power supply and auto-Adjusting height system.
      The greater the power, the thicker the cutting thickness.

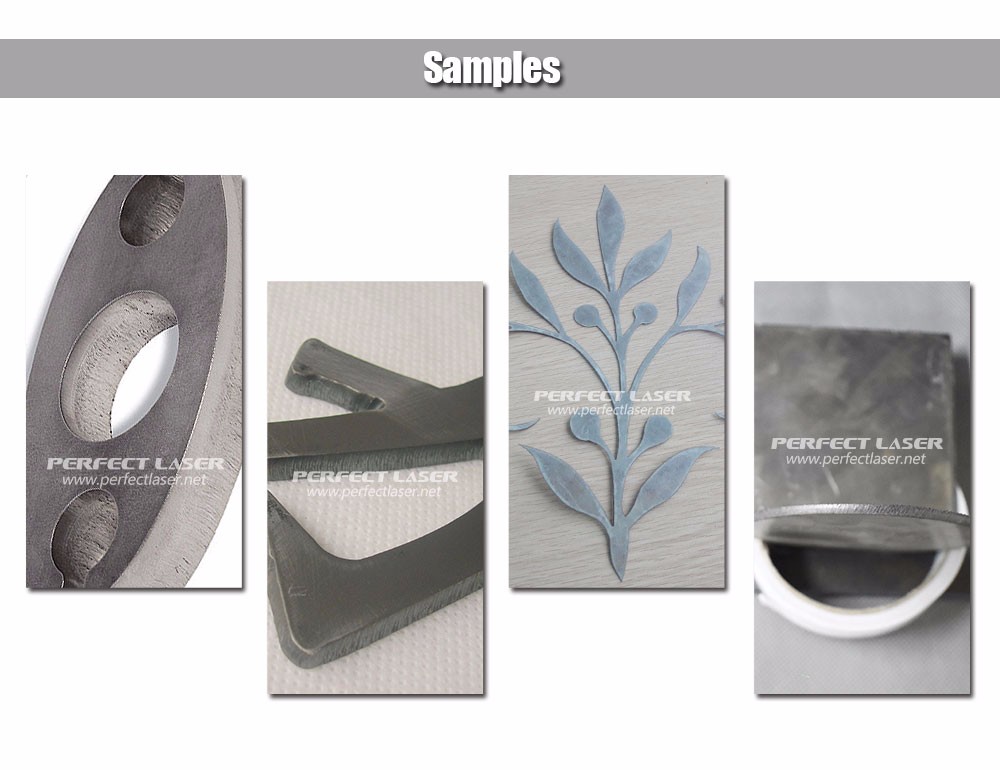

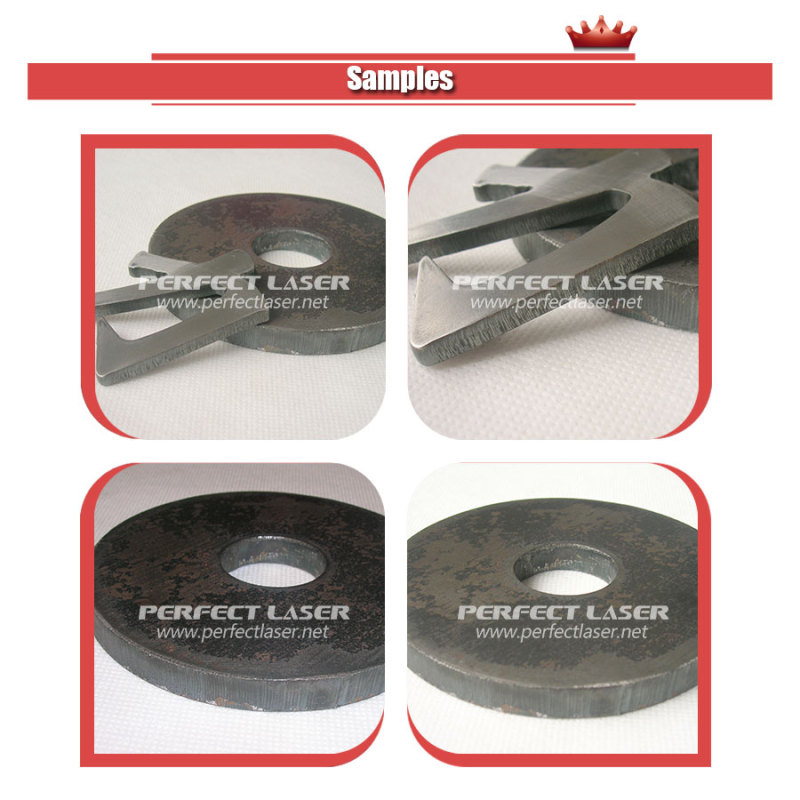

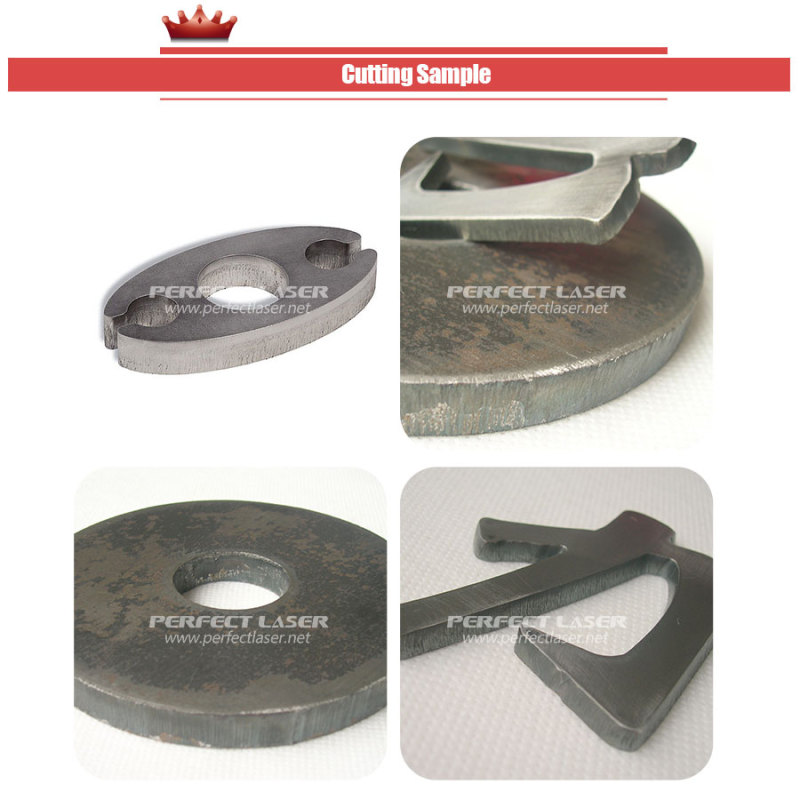

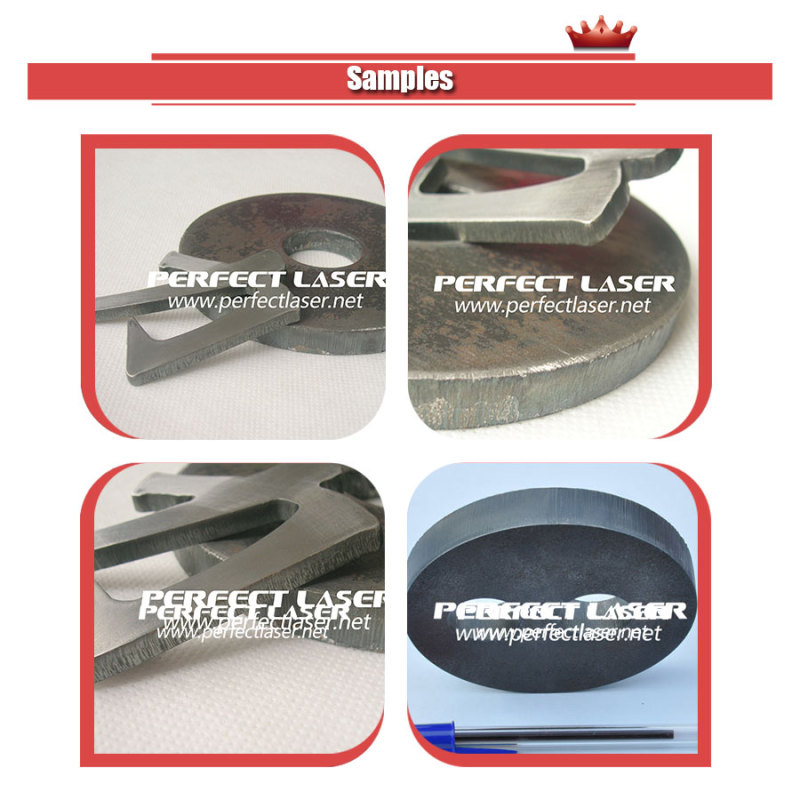

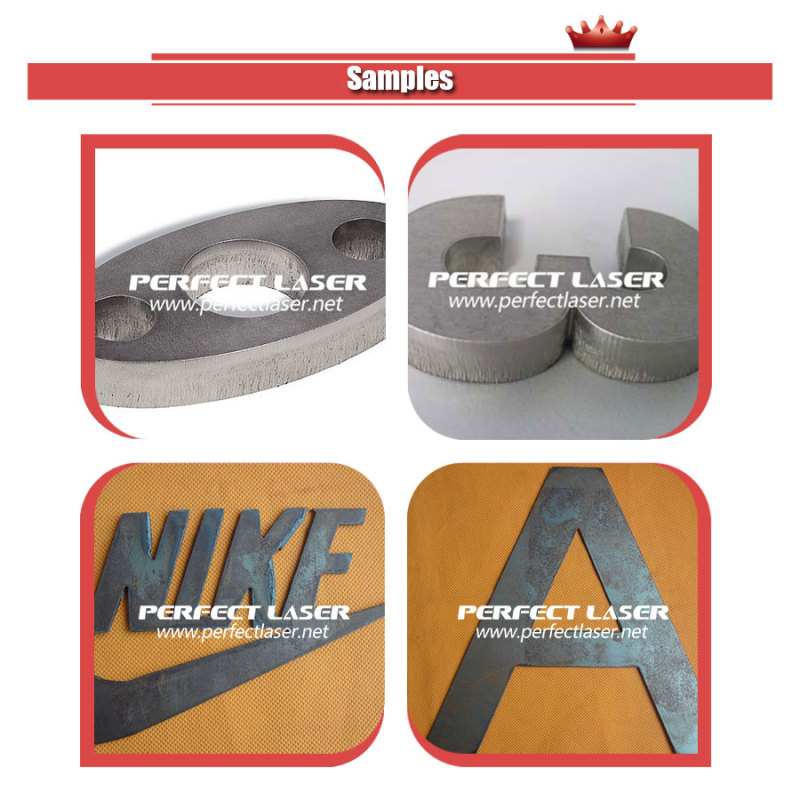

      Sample

      Product Application
      Material: This kind of cnc plasma cutting machine is widely applied in special-shaped carbon steel, manganese steel, stainless steel, non-ferrous metals (stainless steel, aluminum, copper, titanium, nickel) and other metal materials of large, medium and small plates.

      Application field: This kind of cnc plasma cutting machine is widely applied in shipbuilding industry, heavy machinery, petrochemical, power equipment, boiler manufacturing, machinery manufacturing, aerospace, vehicle manufacturing.
