Welding Colum and Boom for Super Heavy Type
Description
Product description
Complete Equipment of Welding Machinery
Product Description
This Equipment of Welding Machinery mainly by the operating machine, ESAB welding system; TV monitoring system; flux feed recovery system, electrical control system, up and down tracking system, with a very surfacing institutions, water cooling system and other components.
Main feactures:
1. The opsitioner is composed of electric trolley, electric slewing, pneumatic locking, manual locking, electric skateboard (a set of 1000*500 mm, another set of 1000+1000*500 mm), rotating mechanism and so on;
2. Strip surfacing welding head and welding wire electrode in 2000 mm diameter cylinder.
3. Two welding head with 50 kg wire tray, and separate with a set of 300 kg wire tray;
4. The machine is equipped with a walking platform on the crossbeam, two machine head with operation platform, near cylinder welding, the platform needs to be manually removed, the operator column with repair, climbing ladder
Main Technical Parameter of Column and Boom
|
Name |
Parameter |
Remarks |
|
Horizontal effective stroke of boom |
7m |
|
|
Vertical effective travel of boom |
7m |
|
|
Scaling speed precision of boom |
±2% |
|
|
Horizontal expansion speed of Boom |
10~1000mm/min |
|
|
Vertical lifting speed of beam |
100-1000mm/min |
|
|
Electric rotary speed |
0.07~0.7rpm |
|
|
Adjustable range of electric cross - drag plate |
100-400 mm/min |
1000×500 |
|
Welding Speed |
0.10-1.2m/min |
|
|
Rotary range |
±180° |
|
|
Track gauge |
2500 mm |
|
|
Walking speed of electric trolley |
150~1500mm/min |
|
|
Effective load at the end of boom |
500Kg |
|
|
Capacity of Wire Reel |
50Kg |
|
|
Mains input |
380V±10%.50HZ±2% |
|
|
Air supply voltage |
0.4MPA-1.0MPA |
|
|
Mating welding system |
LAF1601,DC |
ESAB |
The Main Technical Parameters of Complete Equipment Welding Machinery
|
Name |
Details parameters |
|
Power supply |
Three phase,AC 380V±10%,50Hz±1 |
|
Vertical load |
MAX 50t |
|
The workpiece weighs 50 tons and supports the diameter 1600mm-6000mm |
When the working conditions for the horizontal position forward 90 °, in the 50 tons load, the workpiece center of gravity from the position of the machine table plane distance of up to 1000mm |
|
Artifacts eccentricity |
In the 50 tons load, the workpiece center of gravity from the position of the machine table axis up to 300mm |
|
Spinning speed |
0.015 – 0.25 rpm |
|
Rotation rate change rate |
≤5% |
|
Flip speed |
0.01-0.15rpm |
|
Angle of inclination |
±180°(double-seater) |
|
Worktable diameter |
Ф 6000mm |
|
The workbench to adjust height |
600mm |
|
Maximum welding current |
3000A |
|
Max. preheat temperature |
400℃ |
|
Continuous working hours |
≥ 24h |
We can provide the whole set welding manchinery for worldwide customers with high quality and good service, which is designed, manufactured, installed by ourselves.

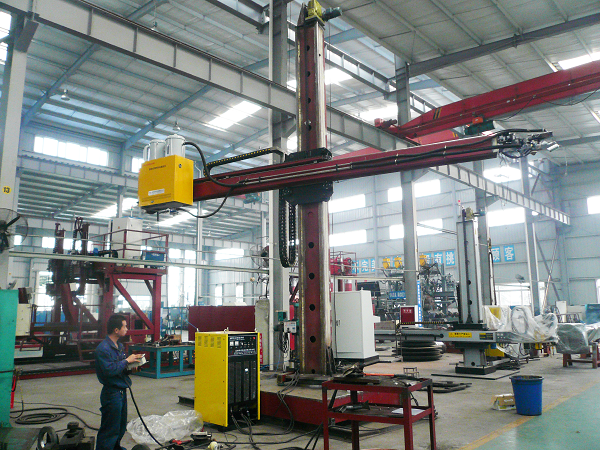

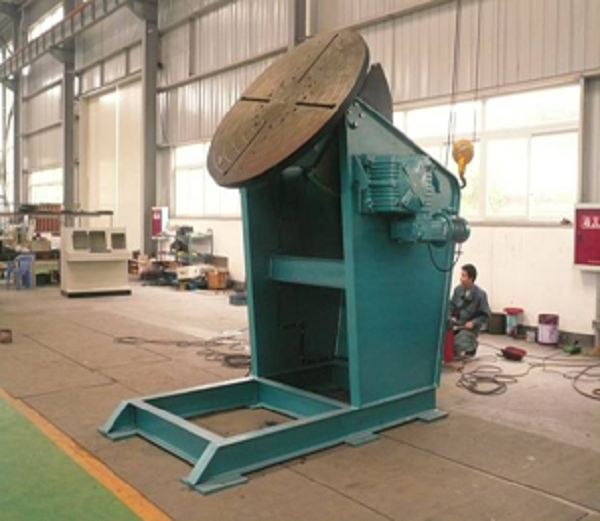

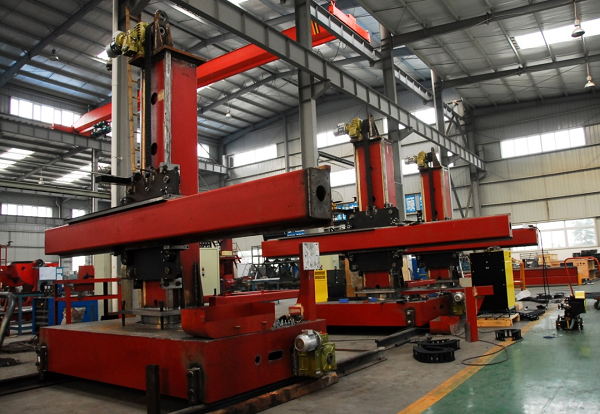

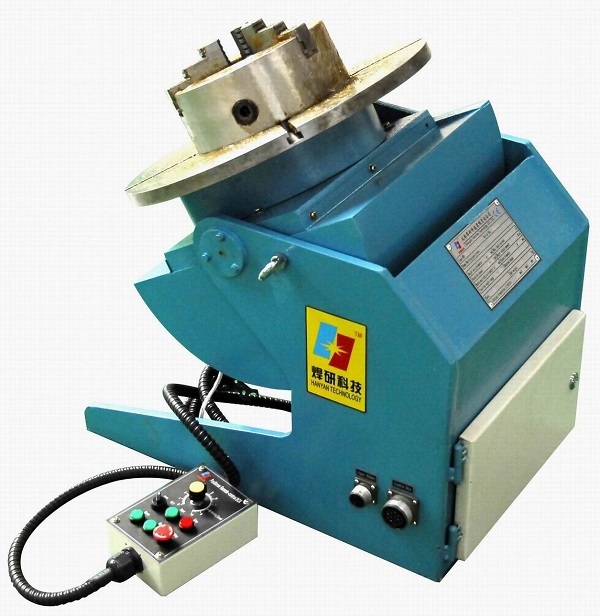

Pictures of Products
Packaging & Shipping
1.Outside package: Sandard export wooden cases.
Inner package: stretch film; or According to the customers'orders.
2. Delivery and Shipping:30-60 days after the deposit received.
