Conical Light Pole Hydraulic Straighten Machine
Description
Product description

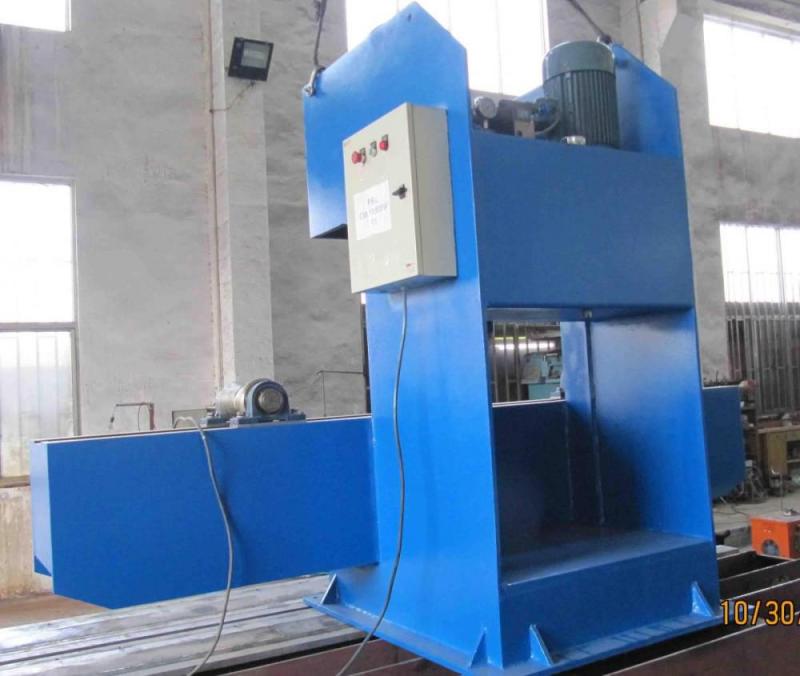

Light pole hydraulic straighten machine
1 Machine Overview
The light pole bending deformation can be existed because of large amount welding heat. We may straighten the pole by through this special press machine.
This machine is consists of rugged and high strength base and hydraulic system.The machine body was welded by thick plate Q345A , so it can bear high compressive stress. It is easy that controlling the whole process .The special produced cylinder piston bar have a circle head which contact to pole.
2 Technical Parameter
l Model: LPHS450-14000 semi-automatic welding machine
l Workable diameter : 60-450 mm
l Tube wall thickness : 10 mm
l Table length : 3000 mm
l Rated pressure : 100 Tons
l Throat depth : 270 mm
l Stroke of slide : 150 mm
l Max opening height : 610 mm
Descent : 18 mm/s
l Speed of slide Working : 4.5 mm/s
Return : 36 mm/s
l Motor power : 11 Kw
Competitive Advantage:
1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
2. 20 % overweight design , could making the rotator focus more.
3. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
4. All the parts using well-known brands in China or other countries . Quality is more reliable .
5. Using double row bearings.
6. The base of rotator welded by plates, with high strength, no deformation after long time using.
