Geo membrane Welding Machine
Description
Product description

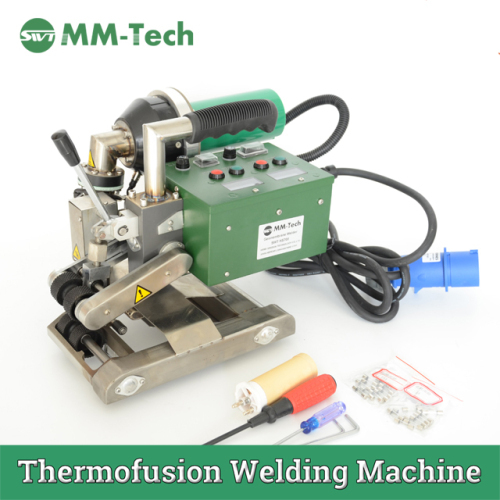

Geo membrane Welding Machine
SWT-NS700 Geomembrane Welding Hot Wedge, Extrusion Welding Welder,PVC Geomembrane Welding welds 0.5mm-2.0mm thickness membrane. which is adopts advanced hot wedge strcuture.Hdpe Geomembrane Welder With its high power,high speed and pressure.This Geomembrane Welder & Automatic Geomembrane Welding Machine Pvc Geomembrane Welding Machine is specially desgined for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof constructions and other waterproofing projects.
SWT-NS700 PVC Geomembrane Wedge Welding with stepless adjustable temperature and drive.
| Voltage | 220 V ± 5% |
| Frequency | 50/60Hz |
| Power | 1200W |
| Welding temp | 0-450 ℃ |
| Welding Speed | 0.5-8 m/min |
| Thickness of material | 0.5-2.0 mm |
| Welding width | 15 mm *2, interior cavity 20 mm |
| Overlap width | 120 mm |
| Seam Strength | ≥85% base material ( tensile resistant in shear direction) |
| Weight | 7.5 Kg |
| Size | 350(L) X 267mm(W) X 267mm(H) |
Hot Wedge Geomembrane Welder is an CNC Hot Wedge Welding Machine for overlap welding and manufacturing of films and geomembrane liners in tunnels as well as earthwork and civil engineering. The heat is transmitted by using the best combination of contact and hot air. Especially well-suited for overhead welding in install geomebrane, civil engineering, tunnel engineering.
