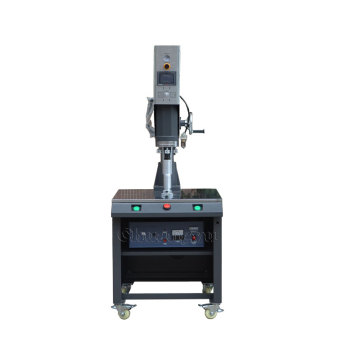

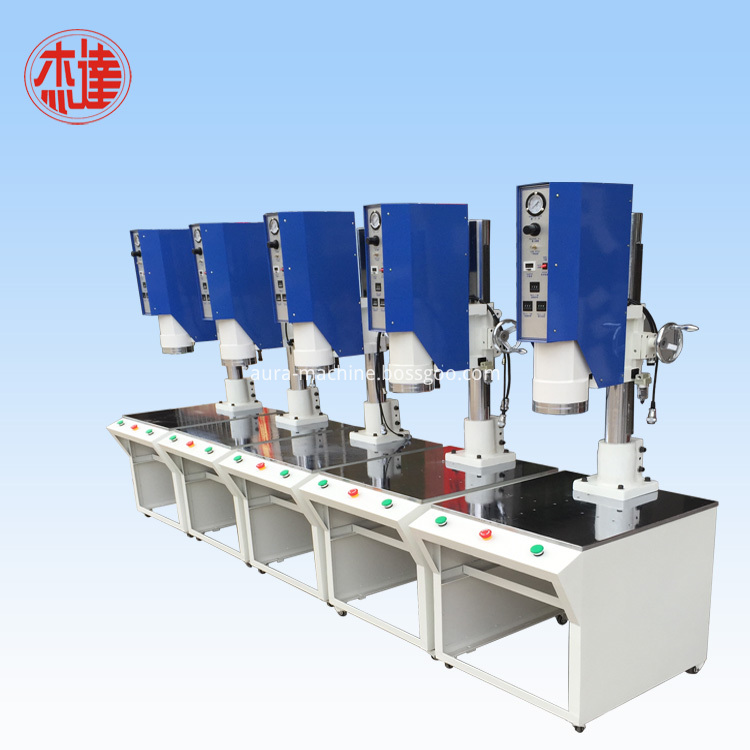

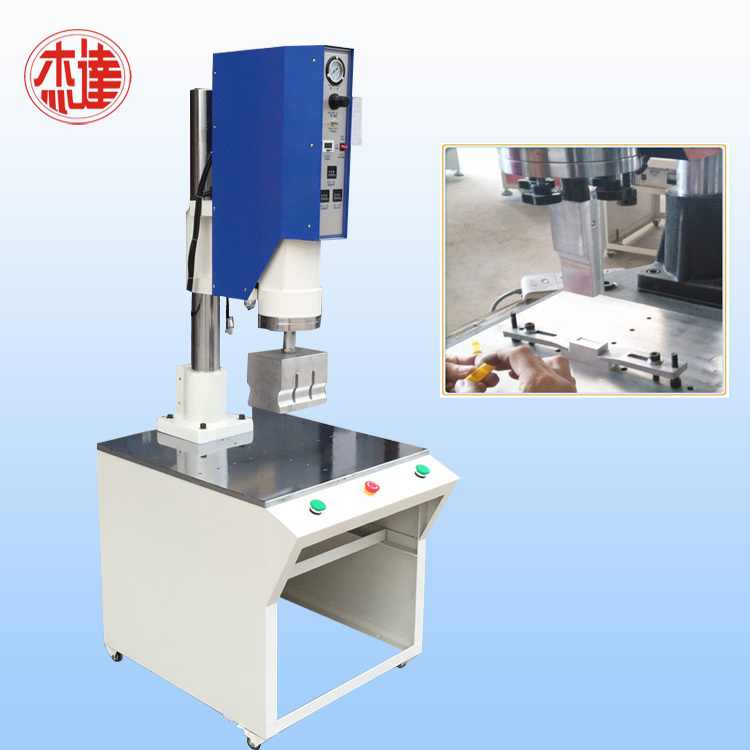

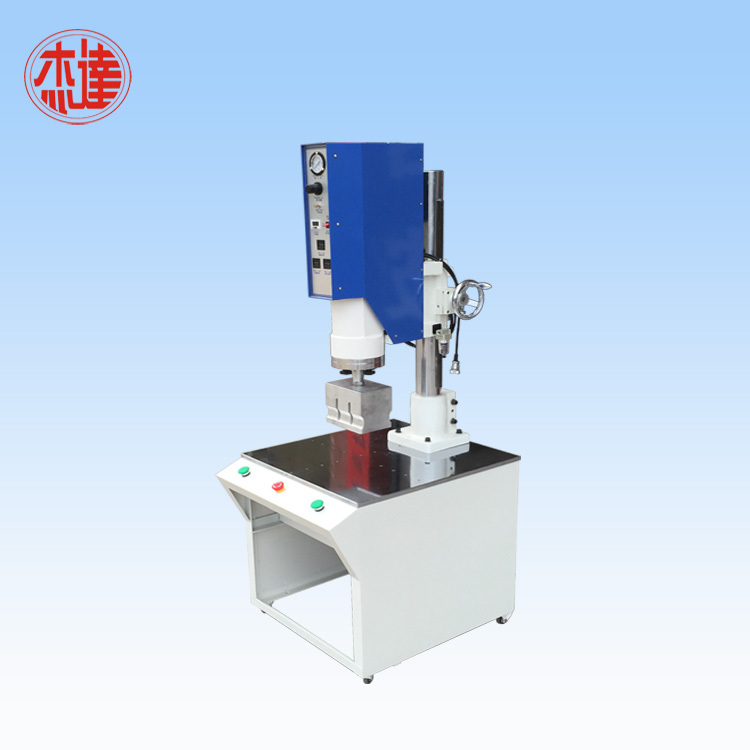

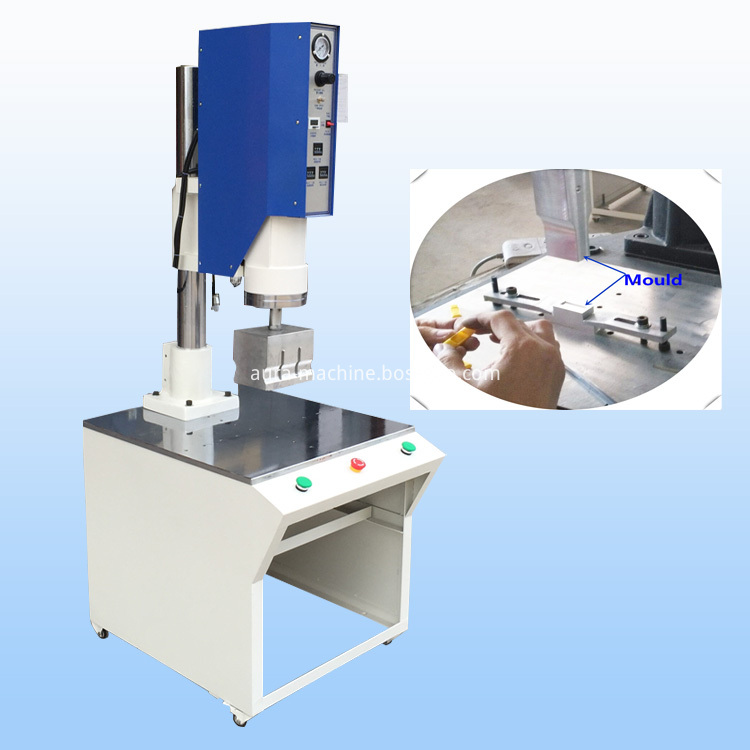

Ultrasonic Thermoplastic Welding Machine
Description
Product description
Ultrasonic Thermoplastic Welding Machine:
Ultrasonic welding machine is a equipment design for thermoplastic material, widely use on plastic toys, stationery industry, electronics industry, food industry, plastic industry, etc. Jieda ultrasonic thermoplastic welder with reasonalbe design, adopts automatic compensation without manual adjusty, easy to operate and more conveinence for workers.
Features of ultrasonic plastic welding machine:
1. Strong and stable output power, as piezoelectric ceramics are imported from Japan.
2. Automatic compensation for feedback control circuit can be prolonged to welding machines' service life.
3. Foot switch can be used without preheating, convenient to high capacity.
4. Time control using three-digit dial code switch, adjustable 1/100 seconds precision.
5. Be compatible with automated machine or a bag machine.

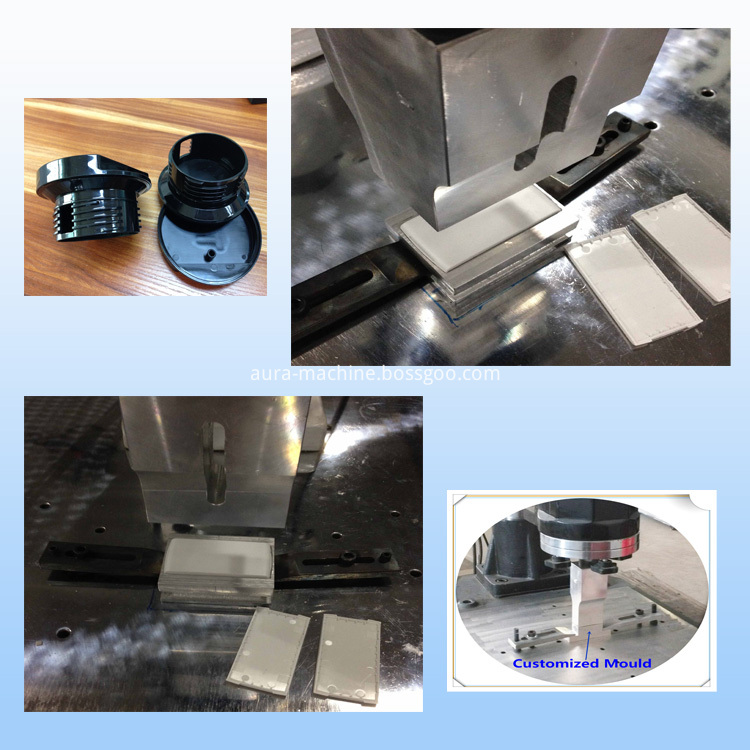

6. It can be customized according to customers' needs. For suitable materials: PP PVC PE ABS etc
Technical parameter of ultrasonic plastic welding machine:
|
output power (W) |
1500 |
2000 |
2200 |
2600 |
|
frequency |
20KHz |
15KHz |
||
|
input voltage |
AC220V |
|||
|
welding head stroke |
80mm |
|||
|
oscillating system |
Self-excited oscillation circuit |
|||
|
output time |
0.01-9.99S |
|||
|
current directions |
output amplitude of the table instructions |
|||
|
pressure |
pressure range of 1-7bar |
|||
|
power output range |
1-6 stall continuously adjustable |
|||
|
vibration head cooling system |
air-cooled |
|||
|
welding area (mm) |
150 |
190 |
210 |
220 |
|
Dimension |
600 × 680 × 1780 |
|||
|
net |
145kg |
150kg |
156kg |
168kg |
Packing:
1. The complete machine will be transferred in one wooden case or according to customer`s requirement, don't need extra installation cost.
2. Machine installation design insist on the principle "humanized", installation is simple and convenient.
3. There are some marks on the machine so that you can find each parts easily, and some installation instruction, pictures, video would provided for your reference.
Service:
1.12 months warranty for machine.
2.Provide free technical consultation and other related maintenance services.
3.12-24 hours online service for basic setup and repairs.
4. Ensure the supply of spare parts.
Company information:
JIEDA Ultrasonic Equipment Technology Co., Ltd. has more than ten years of experience in the development of mechanical equipment, enjoy good reputation on this line. And has many loyal customers both at home and oversea.
Major products: Ultrasonic Plastic Welding Machine, Ultrasonic Quilting Machine, Ultrasonic System, Ultrasonic Transducer, Ultrasonic Horn, Ultrasonic Generator, Non Woven Laminating Machine, Ultrasonic Punching Machine, Ultrasonic Cutting Machine, etc.
