High Power Tarpaulin Tape Plastic Hot Air Welding Machine for PVC Tents & Pools
Contact Now
Description
Product description
Product Display

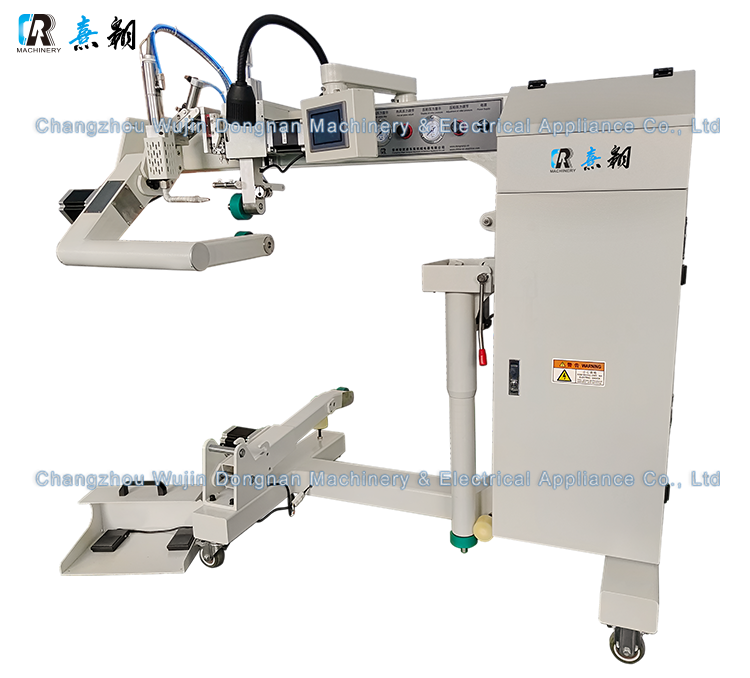

Feature of CR-G19 Hot Air Hot Wedge Plastic Welding Machine 1. This machine adopts advanced technology and has functions of hot air and hot wedge. Hot air and hot wedge functions can be switched, easy to replace. It can meet various welding requirements of TPU, PVC, PE, PVC mesh cloth, etc.
2. It adopts editable PLC control system, high-definition touch screen display, Chinese and English system, can be programmed according to user requirements, microcomputer automatically controls the whole machine, simple operation, stable action performance, and low failure rate.
3. Auto temperature control with warning device for the up limit temperature.
4. Auto compensation, auto micro back to reduce empty welding.
5. Double pedals control.
6. It could work up to 24 hours continuously.
7. The unique heating structure can reach up to 750℃for hot air, and 500℃ for hot wedge, the temperature is automatically tracked and controlled by a computer, and the accuracy can reach ±1℃.
8. Super strong torsional dynamic design.
9. Blowing-in hot air is filtrated without any water and oil.
10. The hot wedge function is noiseless, energy-saving, environmentally friendly and smoke-free, with strong welding fastness, no wrinkles, and no bright edges.
11. The equipment can set different parameters according to different welding materials, and automatically store them, which is convenient to call and improve work efficiency.
2. It adopts editable PLC control system, high-definition touch screen display, Chinese and English system, can be programmed according to user requirements, microcomputer automatically controls the whole machine, simple operation, stable action performance, and low failure rate.
3. Auto temperature control with warning device for the up limit temperature.
4. Auto compensation, auto micro back to reduce empty welding.
5. Double pedals control.
6. It could work up to 24 hours continuously.
7. The unique heating structure can reach up to 750℃for hot air, and 500℃ for hot wedge, the temperature is automatically tracked and controlled by a computer, and the accuracy can reach ±1℃.
8. Super strong torsional dynamic design.
9. Blowing-in hot air is filtrated without any water and oil.
10. The hot wedge function is noiseless, energy-saving, environmentally friendly and smoke-free, with strong welding fastness, no wrinkles, and no bright edges.
11. The equipment can set different parameters according to different welding materials, and automatically store them, which is convenient to call and improve work efficiency.
12. 3 lower arms are available, and the upper, middle and lower arms can be switched to meet different production needs.
|
Product name
|
Hot air hot wedge plastic welding machine
|
|
Model
|
CR-G19
|
|
Voltage
|
AC 220V 50-60HZ
|
|
Power
|
3000W
|
|
Heat air control
|
Up to 750°C
|
|
Heat wedge control
|
Up to 500°C
|
|
Speed
|
1-15m/min
|
|
Air Pressure
|
0.35-0.5Mpa
|
|
Roller width
|
20/30/40/50mm
|
|
Nozzle width
|
20/30/40mm
|
|
Hot wedge width
|
25mm
|
|
Dimension
|
1670*700*1600mm
|
|
Gross weight
|
360 kg
|
|
Optional functions
|
Hot wedge
|
|
Available lower roller
|
Upper, Middle, Lower roller welding arm
|

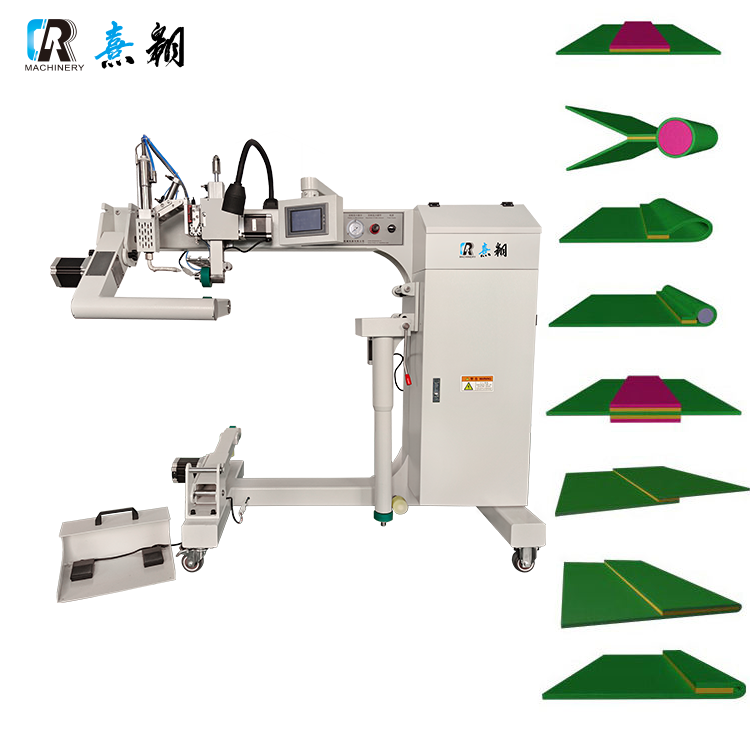

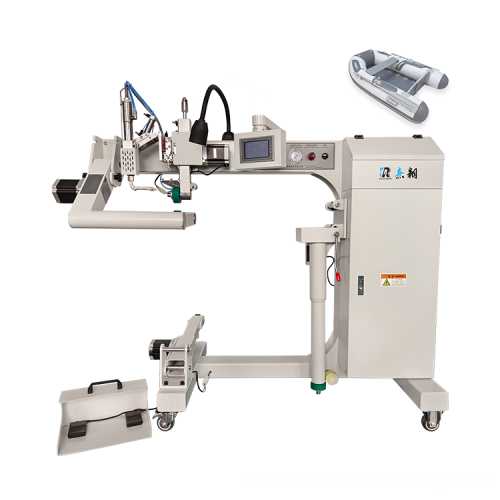

Application Products of CR-G19 Hot Air Hot Wedge Plastic Welding Machine This machine is mainly used for welding cylindrical shape products, and can also produce tarpaulin, truck tarpaulin, banner, tent, inflatable tent, inflatable rubber boat, inflatable fishing boat, inflatable pool, inflatable castle, pvc water tank, etc.
